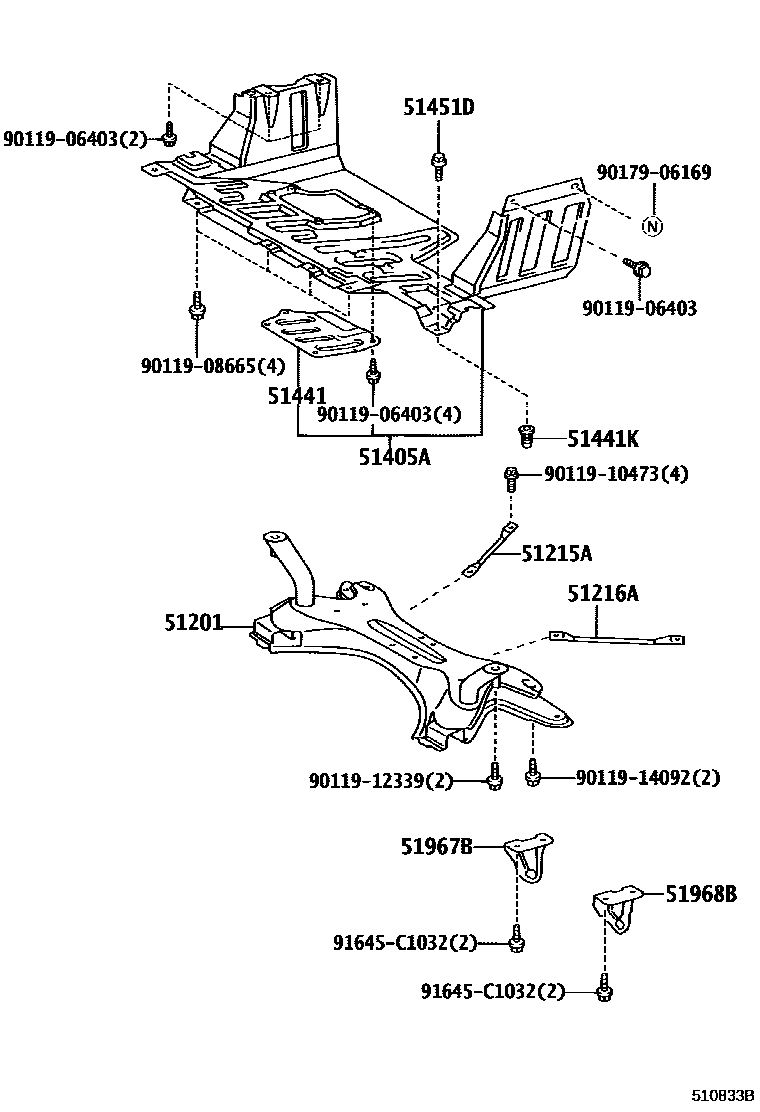

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D021iAXP4#200210-200511

main51201-0D070iNCP4#200212-200603

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-0D020iNCP42..ATM..15S200510-200702

sub51215-52010

main51215-52020iAXP4#200511-200608

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-0D020iNCP42..ATM..15S200510-200702

sub51215-52010

main51215-52020iAXP4#200511-200608

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-52030iAXP4#..ATM200511-200608

main51405-52070iSCP4#200608

51441COVER, ENGINE UNDER, NO.1

main58727-52010iAXP4#..ATM200511-200608

main58727-52020iSCP4#200608

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076×2iAXP4#200210-200511

51451DSCREW, NO.1

main90159-60383×4iNCP4#200307-200603

(J)

main90159-T0008×4iNCP4#..PHL,TH,VN200510-200709

(L)

51967BHOOK, TRANSPORT, REAR RH

main51967-0D010iAXP4#200210-200511

51968BHOOK, TRANSPORT, REAR LH

main51967-0D010iAXP4#200210-200511

9011906403

main90119-06403

9011908665

main90119-08665

9011910473

main90119-10473

9011912339

main90119-12339

9011914092

main90119-14092

9017906169

main90179-06169

91645C1032

main91645-C1032

16 parts on this diagram · 4 diagrams in section
