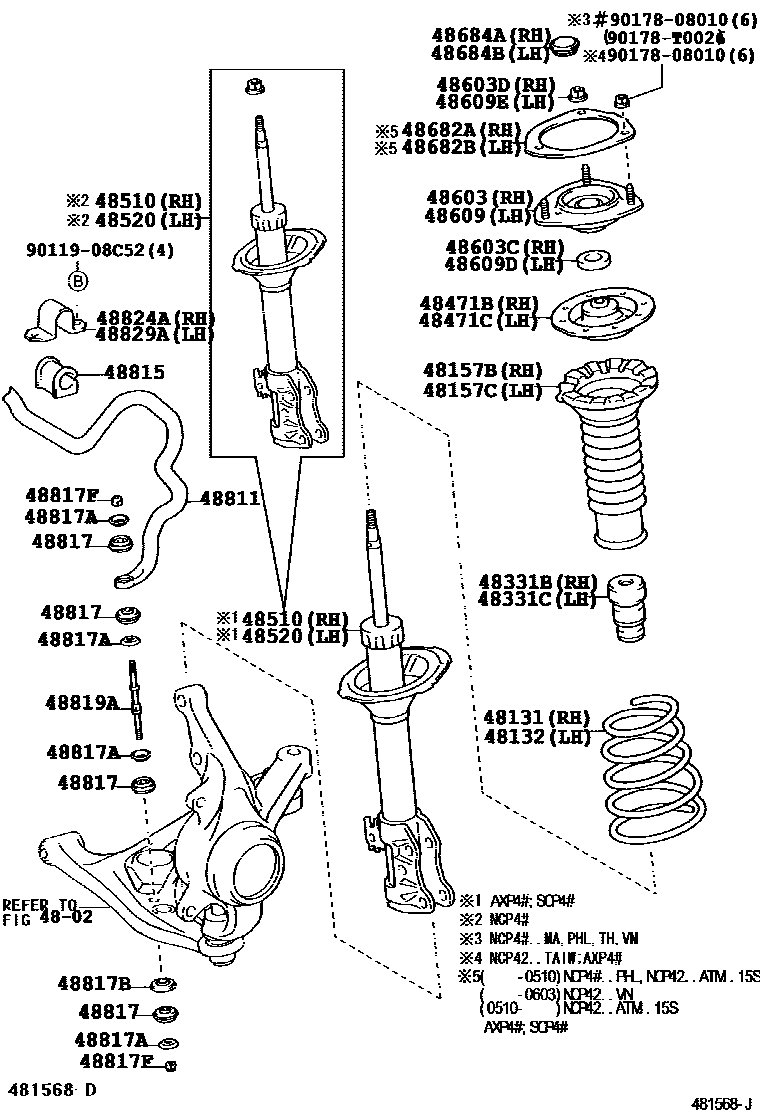

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0D030iAXP4#..ATM200210-200511

main48131-0D080iNCP42..(15E,15J)..TAIW200303-200510

main48131-0D090iNCP42..15G..TAIW200510-200709

main48131-0D100iNCP42..MTM..TH200212-200510

main48131-0D110iNCP42..ATM..TH200212-200510

main48131-0D120iNCP42..VN200305-200603

main48131-0D200iNCP42..MA200305-200512

main48131-0D270iSCP4#..MTM200608

48132SPRING, FRONT COIL, LH

main48131-0D030iAXP4#..ATM200511-200608

main48131-0D080iNCP42..(15E,15J)..TAIW200510

main48131-0D090iNCP42..15G..TAIW200303-200510

main48131-0D100iNCP42..MTM..TH200212-200510

main48131-0D110iNCP42..ATM..TH200212-200510

main48131-0D120iNCP4#..PHL200305-200510

main48131-0D200iNCP42..MA200305-200512

main48131-0D270iAXP4#..MTM200210-200511

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0D020iAXP4#200511-200608

main48157-0D030iNCP42..TAIW200303-200510

main48157-0D040iNCP4#..MA,PHL,TH,VN200510-200709

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0D020iSCP4#200608

main48157-0D030iNCP42..TAIW200303-200510

main48157-0D040iNCP4#..MA,PHL,TH,VN200212-200603

48331BBUMPER, FRONT SPRING, RH

main48331-0D020iSCP4#200608

main48331-0D040iNCP4#..MA,PHL,TH,VN200510-200709

main48331-52010iNCP42..TAIW200510

48331CBUMPER, FRONT SPRING, LH

main48331-0D020iAXP4#200511-200608

main48331-0D040iNCP4#..MA,PHL,TH,VN200510-200709

main48331-52010iNCP42..TAIW200510

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-0D020iNCP42..TAIW200510

main48044-0D030iNCP4#..MA,PHL,TH,VN200510-200709

main48044-52010iSCP4#200608

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-0D020iNCP42..TAIW200510

main48044-0D030iNCP4#..MA,PHL,TH,VN200212-200603

main48044-52010iAXP4#200511-200608

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09890iNCP42..15S200212-200510

MARK 48510-0D070

main48510-09900iNCP42..(15E,15J)..TAIW200510

MARK 48510-0D040

main48510-09910iNCP42..15G..TAIW200510-200709

MARK 48510-0D050

main48510-09A00iNCP42..ATM..15S;NCP4#..(13E,13STD,15E,15G,15J)..(PHL,TH,VN)200212-200603

MARK 48510-0D060

main48510-09A01iNCP42..MA200512-200708

MARK 48510-0D120

main48510-0D030iAXP4#200210-200511

MARK 48510-0D030

main48510-0D031iSCP4#200608

MARK 48510-0D031

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-09890iNCP42..15S200212-200510

MARK 48510-0D070

main48510-09900iNCP42..(15E,15J)..TAIW200510

MARK 48510-0D040

main48510-09910iNCP42..15G..TAIW200303-200510

MARK 48510-0D050

main48510-09A00iNCP42..ATM..15S;NCP4#..(13E,13STD,15E,15G,15J)..(PHL,TH,VN)200212-200603

MARK 48510-0D060

main48510-09A01iNCP42..MA200305-200512

MARK 48510-0D120

main48510-0D030iAXP4#200210-200511

MARK 48510-0D030

main48510-0D031iSCP4#200608

MARK 48510-0D031

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D030iAXP4#..DLXI,GL,GLI,GLXI200210-200511

main48609-0D070iNCP42..TAIW200510

main48609-0D080iNCP4#..MA,PHL,TH,VN200212-200603

main48609-52021iAXP41..DLX200210-200511

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNCP4#200212-200603

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iAXP4#200511-200608

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D030iSCP4#200608

main48609-0D070iNCP42..TAIW200510

main48609-0D080iNCP4#..MA,PHL,TH,VN200212-200603

main48609-52021iAXP41..DLX200210-200511

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iSCP4#200608

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iAXP4#200210-200511

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D010iNCP4#..LHD..MTM;NCP42..ATM..(15G,15S)..(PHL,TH)200212-200603

main48682-52010iAXP4#200511-200608

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D010iNCP4#..LHD..MTM;NCP42..ATM..(15G,15S)..(PHL,TH)200212-200603

main48682-52010iAXP4#200511-200608

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iAXP4#200210-200511

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iAXP4#200210-200511

48811BAR, STABILIZER, FRONT

main48811-0D020iAXP4#200511-200608

main48811-0D021iSCP4#200710

(L)

main48811-0D030iNCP42..15G..TAIW200510-200709

main48811-0D040iNCP4#..MA,PHL,TH,VN200212-200603

main48811-52120iAXP4#200210-200407

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0D020×2iAXP4#200210-200511

main48815-0D040×2iNCP4#..MA,PHL,TH,VN200510-200709

main48815-0D050×2iNCP42..15G..TAIW200303-200510

48817CUSHION, FRONT STABILIZER

main48817-0D020×8iSCP4#200608

main48817-0D040×8iNCP42..15G..TAIW200303-200510

main48817-52010×8iNCP4#..PHL,TH,VN200510-200709

sub48817-52011

main48817-52020×8iNCP42..MA200512-200708

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02179×8iSCP4#200608

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02178×2iNCP42..15G..TAIW;NCP4#..MA,PHL,TH,VN200212-200603

48817FNUT(FOR FRONT STABILIZER BAR)

main94182-10800×4iAXP4#200210-200511

48819ABOLT, FRONT STABILIZER

main48819-52010×2iSCP4#200608

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0D020iNCP4#..MA,PHL,TH,VN200212-200603

main48824-52031iAXP4#200210-200511

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0D020iNCP4#..MA,PHL,TH,VN200212-200603

main48824-52031iSCP4#200608

9011908C52

main90119-08C52

9017808010

main90178-08010

90178T0026

main90178-T0026

33 parts on this diagram · 1 diagram in section
