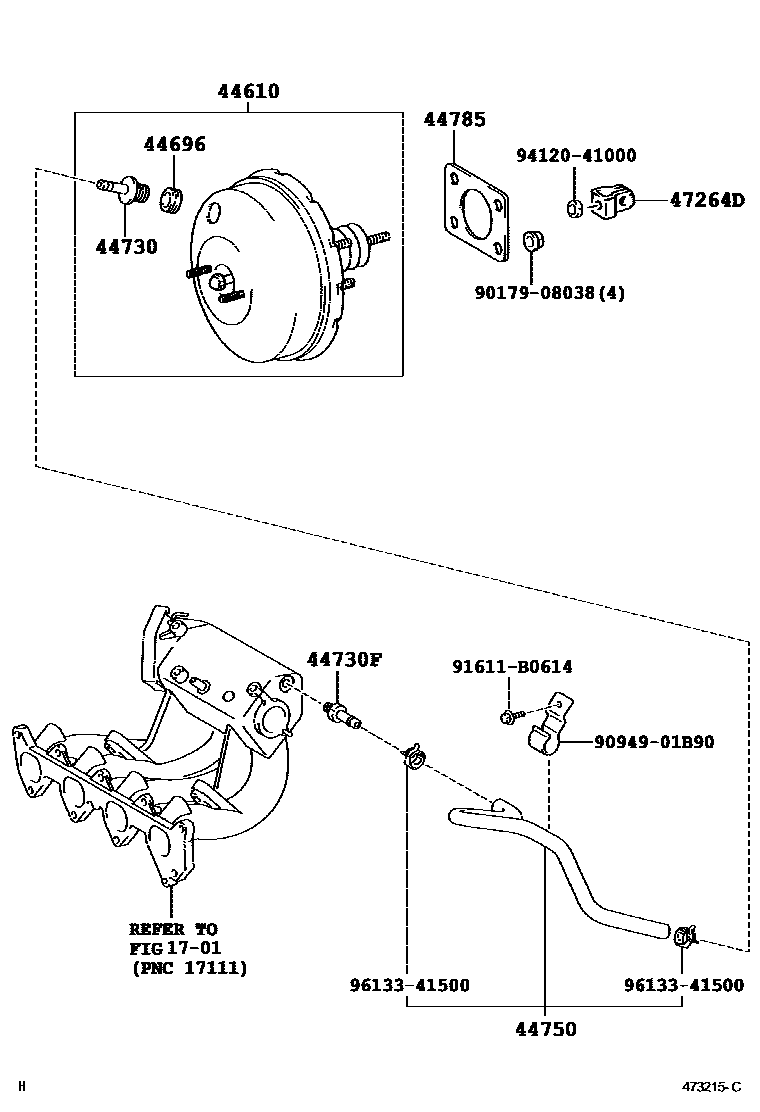

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0D050iSCP4#200210-200709

main44610-0D060iNCP42..RHD200212-200708

main44610-52050iNCP4#..PHL,VN¥46,700200305-200308

sub44610-52051¥46,600

main44610-52051iNCP4#..PHL,VN¥46,600200309-200709

main44610-52220iNCP42..TAIW200303-200510

44696GROMMET, CHECK VALVE

main90080-48050iNCP42..RHD200212-200708

main90080-48071iAXP4#200210-200608

main90480-24015iNCP4#..PHL,VN¥130200305-200709

main90480-24439iNCP42..TAIW¥390200303-200510

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP42..MA,TAIW,TH¥1,360200210-200608

main44730-28030iNCP4#..PHL,VN¥1,360200305-200709

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAXP4#¥220200210-200608

44750HOSE ASSY, VACUUM

main44750-0D010iAXP4#200210-200608

main44750-0D120iSCP4#200608-200701

sub44750-0D121

main44750-0D121iSCP4#200702

44785GASKET, BRAKE BOOSTER

main44785-16020iAXP4#¥220200210-200608

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02010iNCP42..RHD200212-200708

main47264-52020iNCP4#..PHL,VN¥360200305-200709

main47264-52030iSCP4#200210-200709

9017908038

main90179-08038¥130

9094901B90

main90949-01B90¥320

91611B0614

main91611-B0614¥110

9412041000

main94120-41000¥80

9613341500

main96133-41500¥140

13 parts on this diagram · 4 diagrams in section
