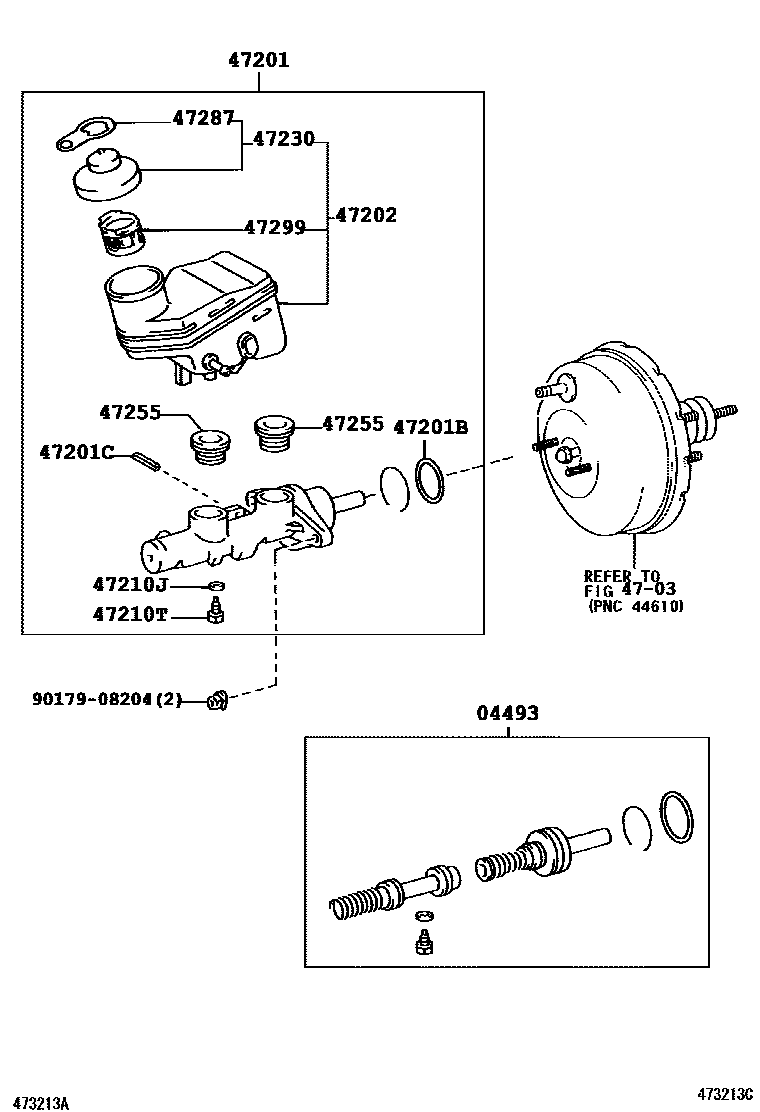

BRAKE MASTER CYLINDER

0001 1 0003 1W(ABS) 0005 1 0006 1 0007 1

04493CYLINDER KIT, BRAKE MASTER

main04493-0D010iAXP4#200511-200608

main04493-0D010iAXP4#..GL,GLI,GLXI200210-200511

W(ABS)

main04493-0D020iAXP4#..DLX,DLXI,GL200210-200511

main04493-0D030iNCP42..ATM..15S;NCP42..(15E,15J)..TH200212-200708

main04493-0D040iNCP42..15G..MA200304-200512

main04493-0D040iNCP42..15E..TH;NCP42..ATM..15S200212-200708

W(ABS)

main04493-0D050iNCP42..TAIW200303-200904

main04493-0D060iNCP42..(15E,15G)..TAIW200303-200510

W(ABS)

main04493-0D060iNCP42..15J200904

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D060iAXP4#..MTM200511-200709

main47201-0D060iAXP4#..MTM..(GL,GLI)200210-200511

W(ABS)

main47201-0D070iAXP41..MTM..GL200210-200511

main47201-0D080iAXP4#..ATM200511-200709

main47201-0D080iAXP4#..ATM200210-200511

W(ABS)

main47201-0D090iAXP41..ATM200210-200506

main47201-0D100iNCP42..MTM..(15E,15J)200212-200702

main47201-0D110iNCP42..ATM..15E..TH;NCP42..RHD..ATM..(15G,15S)200212-200708

W(ABS)

main47201-0D110iNCP42..15G..MA200305-200512

main47201-0D120iNCP42..RHD..ATM..(15E,15J,15S)200212-200708

main47201-0D130iNCP42..TAIW200303-200904

main47201-0D140iNCP42..(15E,15G)..TAIW200303-200510

W(ABS)

main47201-0D140iNCP42..15J200904

main47201-0D150iNCP42..MTM..(15E,15S)200212-200702

W(ABS)

main47201-0D150iNCP42..MTM..15S200304-200510

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-EH001iNCP4#..PHL,VN200309-200709

main90029-20059iAXP4#200210-200608

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP42..TAIW200303-200510

main90029-15804iNCP42..RHD200210-200708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0D010iNCP42..MTM..TH200212-200702

main47220-0D020iNCP42..RHD..ATM200212-200708

main47220-0D030iNCP42..TAIW200303-200510

main47220-0D040iSCP4#..MTM200210-200608

main47220-0D050iSCP4#..ATM200210-200608

main47220-52030iNCP4#..LHD..MTM200305-200709

main47220-52040iNCP42..ATM..PHL200305-200702

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iNCP42..(15E,15G)..TAIW200210-200511

W(ABS)

main90029-43001iNCP42..15J200904

main90430-06104iNCP42..15E,15J;NCP42..ATM..(15G,15S)..(TAIW,TH)200212-200904

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAXP41..GL200210-200512

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D040iSCP4#200210-200608

main47230-0K010iNCP42..RHD200212-200708

main47230-12040iNCP42..TAIW200303-200510

main47230-52030iNCP4#..PHL,VN200305-200709

sub47230-33071

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCP42..MA,TAIW,TH200210-200608

main47255-52010iNCP4#..PHL,VN200305-200709

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP42..RHD200210-200708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAXP4#200210-200608

main47299-52010iNCP4#..PHL,VN200305-200709

9017908204

main90179-08204

13 parts on this diagram · 5 diagrams in section
