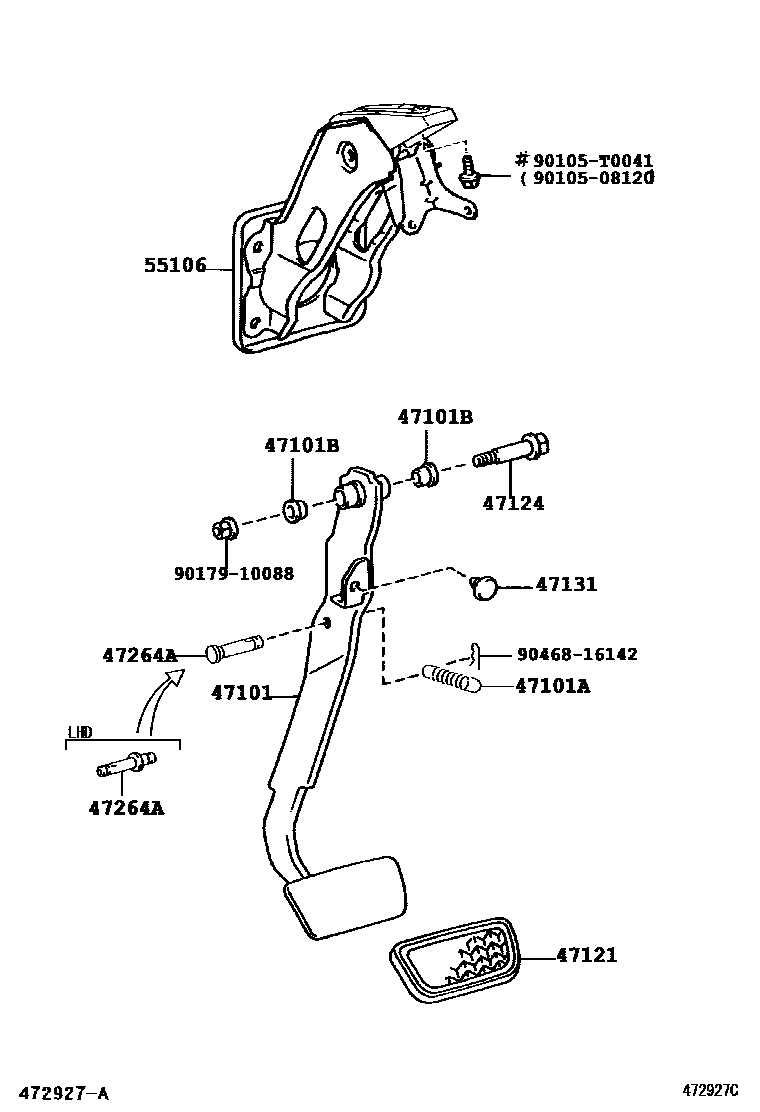

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0D030iAXP4#..MTM200210-200608

main47101-0D040iAXP4#..ATM200210-200608

main47101-0D060iNCP42..MTM..TH200212-200702

main47101-0D070iNCP42..RHD..ATM200212-200708

main47101-52031iNCP4#..LHD..MTM200305-200709

main47101-52040iNCP42..ATM..PHL200305-200702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iAXP4#200210-200608

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAXP4#200210-200608

47121PAD, BRAKE PEDAL

main31321-52010iNCP4#..MTM200210-200709

main47121-52010iAXP4#..ATM200210-200608

47124SHAFT, BRAKE PEDAL

main90109-10167iAXP4#200210-200608

47131CUSHION(FOR STOP LAMP SWITCH)

main90080-54027iSCP4#200212-200608

main90541-06036iAXP4#200210-200709

47264APIN(FOR PUSH ROD)

main90249-08051iNCP42..RHD200212-200708

main90249-08295iSCP4#200210-200608

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D020iAXP4#200210-200608

main55106-0D030iNCP42..TAIW200303-201309

main55106-0D040iNCP42..RHD200212-200708

main55106-52020iNCP4#..PHL,VN200305-200411

sub55106-52021

main55106-52021iNCP4#..PHL,VN200411-200709

9010508120

main90105-08120

90105T0041

main90105-T0041

9017910088

main90179-10088

9046816142

main90468-16142

12 parts on this diagram · 2 diagrams in section
