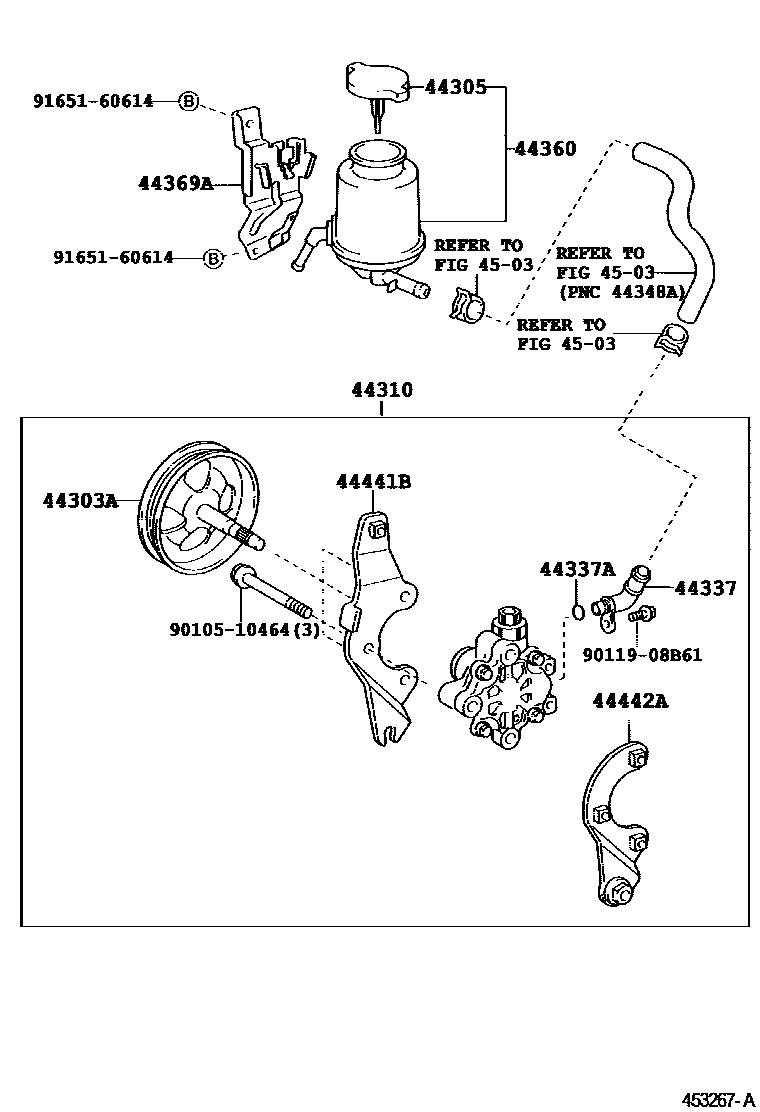

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-0D010iNCP42..TAIW200303-200510

main44303-0D020iNCP4#..MA,PHL,TH,VN200212-200603

main44303-52030iAXP4#..DLXI,GL,GLI,GLXI200210-200608

main44303-52050iSCP4#200608

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iSCP4#200210-200801

sub44305-28060

44310PUMP ASSY, VANE

main44310-0D010iNCP42..TAIW200303-200510

main44310-0D020iNCP4#..MA,PHL,TH,VN200212-200709

main44310-0D030iSCP4#200608

main44310-52170iAXP4#..DLXI,GL,GLI,GLXI200210-200608

44337UNION, POWER STEERING SUCTION PORT

main44337-12130iAXP4#..DLXI,GL,GLI,GLXI200210-200608

main44337-28120iSCP4#200608

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iAXP4#200210-200608

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-52010iAXP4#..DLXI,GL,GLI,GLXI200210-200608

main44360-52020iSCP4#200608

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-52010iAXP4#..DLXI,GL,GLI,GLXI200210-200608

44441BBRACKET, PUMP, FRONT

main44441-0D020iNCP4#..MA,PHL,TH,VN200212-200709

main44441-52020iAXP4#200210-200608

main44441-52030iSCP4#200608

44442ABRACKET, VANE PUMP, REAR

main44442-0D020iNCP4#..MA,PHL,TH,VN200212-200709

main44442-52030iAXP4#200210-200608

main44442-52040iSCP4#200608

4503

9010510464

main90105-10464

9011908B61

main90119-08B61

9165160614

main91651-60614

13 parts on this diagram · 4 diagrams in section
