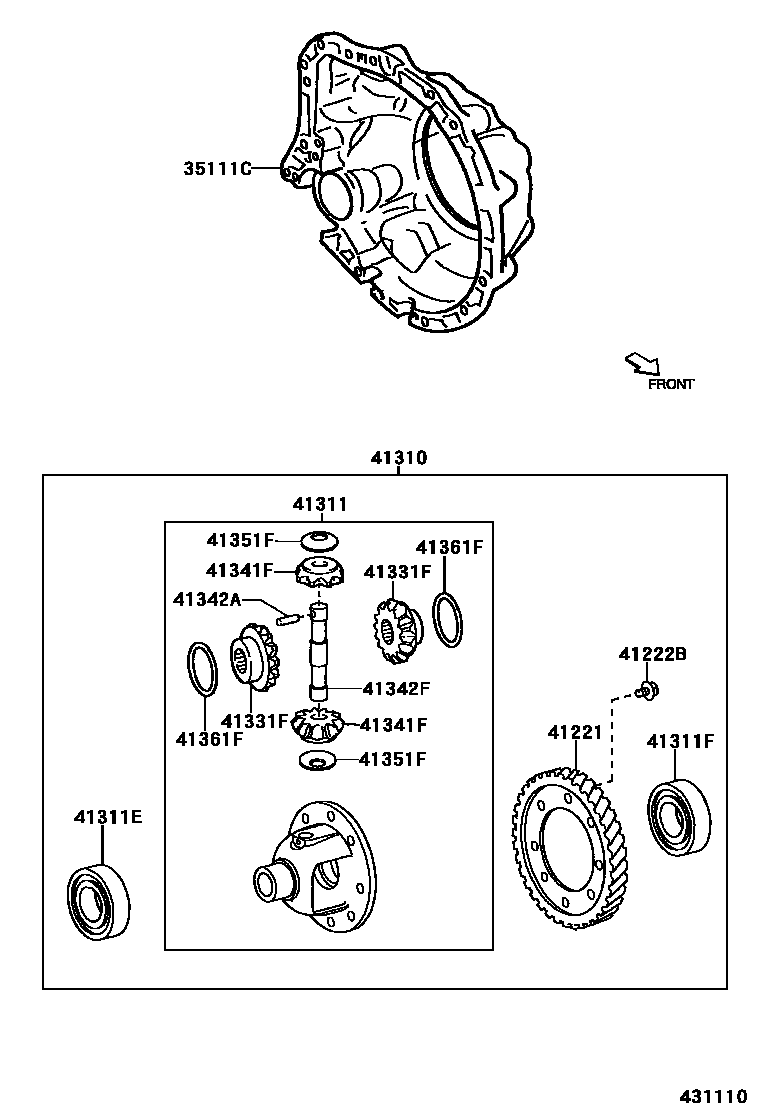

FRONT AXLE HOUSING & DIFFERENTIAL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
C56
C150
41310CASE ASSY, DIFFERENTIAL
41311CASE, FRONT DIFFERENTIAL
C150
C56
41331FGEAR, FRONT DIFFERENTIAL SIDE
C56
41341FPINION, FRONT DIFFERENTIAL
C56
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
C150
C56
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
C150
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
C150
C56
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.50
T=1.50,C150
T=1.55
T=1.55,C150
T=1.60
T=1.60,C150
T=1.65
T=1.65,C150
T=1.70
T=1.70,C150
T=1.75,C150
T=1.75
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02,C56
T=1.10,MARK 03,C56
T=1.20,MARK 04,C56
T=0.95,MARK 14,C56
T=1.05,MARK 15,C56
T=1.15,MARK 16,C56
T=0.80
13 parts on this diagram · 5 diagrams in section
