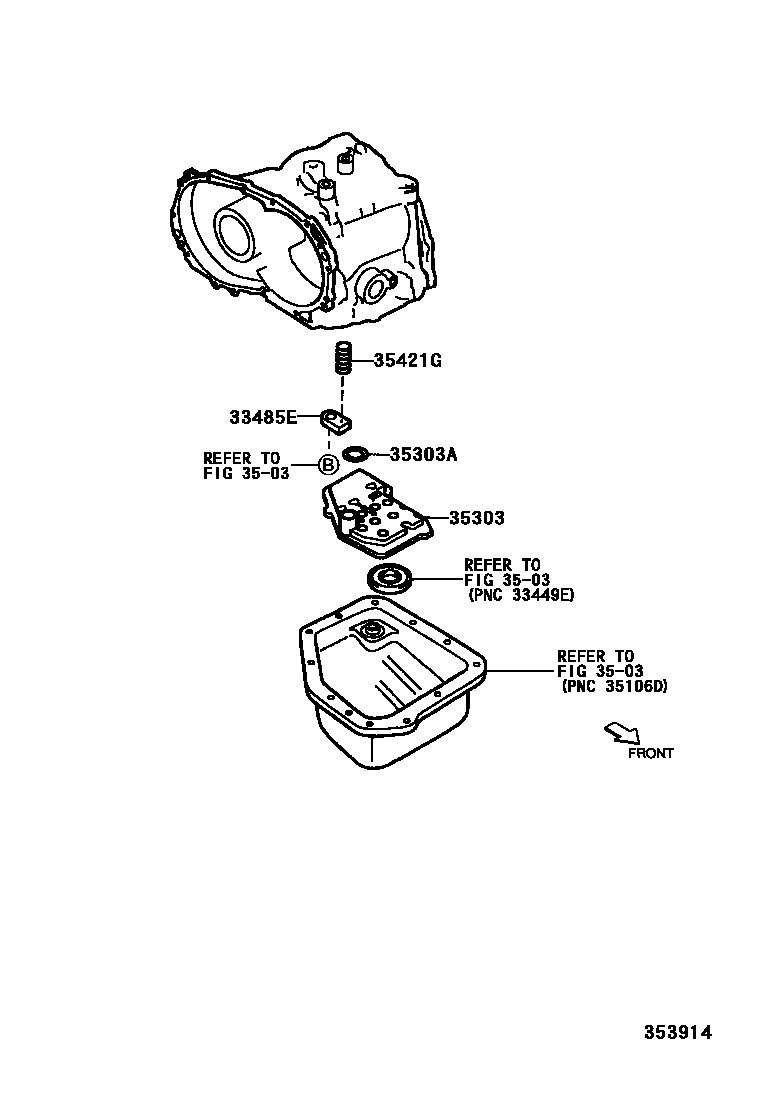

VALVE BODY & OIL STRAINER (ATM)

0001 1U540E 0002 1U540E 0003 1U340E 0004 1U340E

33485EPLATE, LOCK

main33485-52010iAXP4#..ATM200511-200608

3503

35303STRAINER SUB-ASSY, OIL

main35303-52010iAXP4#..ATM200210-200511

35303ARING, O (FOR OIL STRAINER)

main96721-24021iAXP4#..ATM200511-200608

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-08213iAXP4#..ATM200210-200511

5 parts on this diagram · 4 diagrams in section
