TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

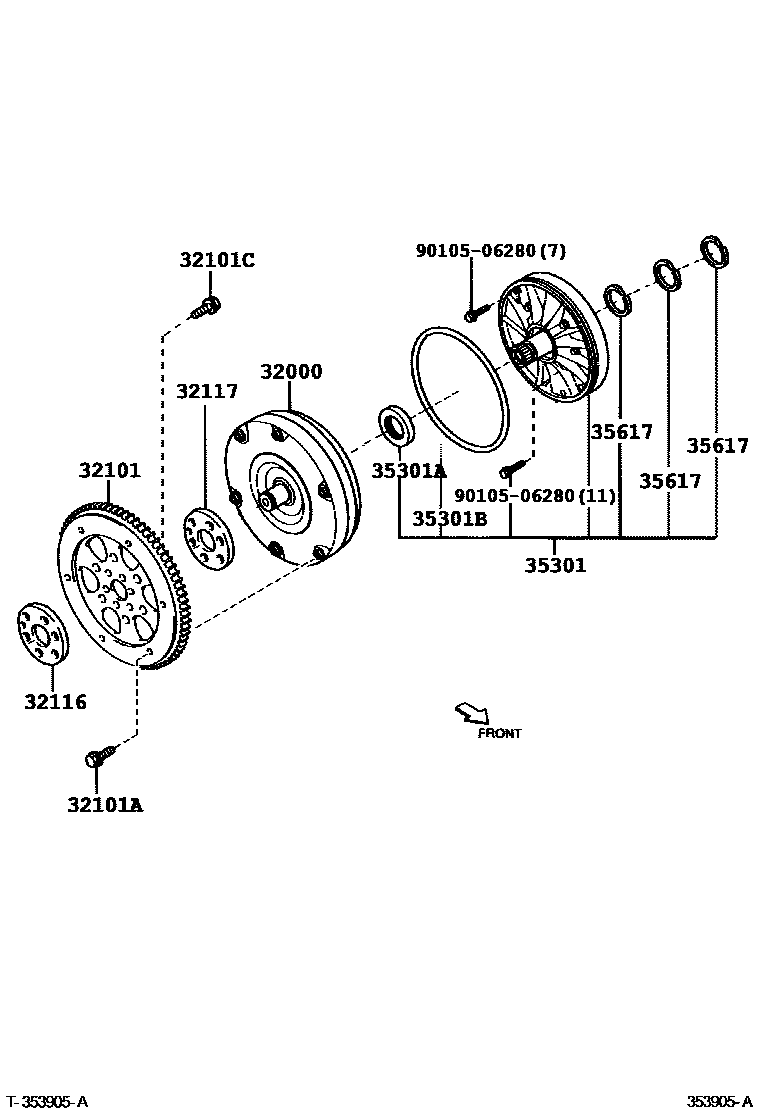

Parts diagram

32000CONVERTER ASSY, TORQUE

main32000-52051i200510-200708

main32000-52052i200708-201309

main32000-52070i200210-200511

main32000-52130i200608-200711

main32000-52131i200711

main32000-52140i200608-200802

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D010i200511-200608

main32101-0D020i200608

main32101-52021i200510

main32101-52030i200210-200502

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-08411×5i200210-200511

*8-1.25PX9.5-2.7,YELLOW

main90109-08107i200510-200810

*8-1.25PX12-8.4,GREEN

main90109-08113i200811

*8-1.25PX12-8.4,GREEN

main90109-08302i200608

*8-1.25PX9.5-2.7,SILVER

main90119-08269×5i200510-200810

*8-1.25PX12-8,BLACK

main90119-08498×5i200404-200512

*8-1.25PX12-8,BLACK

main90119-T0069×5i200212-200404

*8-1.25PX12-8,BLACK

main90119-T0174×5i200404-200512

*8-1.25PX12-7.5,BLUE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6i200212-200512

*10-1.25PX18-13

main90105-10463×6i200608

*10-1.25PX20-14

main90105-A0022×6i200510-201003

*10-1.25PX18-13,(L)

32116SPACER, DRIVE PLATE, FRONT

main32116-0D010i200602-200608

(L)

main32116-12010i200511-200602

main32116-52030i200212-200512

32117SPACER, DRIVE PLATE, REAR

main32117-0D030i200605-200608

(L)

main32117-12010i200605-200608

(J)

main32117-52030i200212-200512

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040i200510

main35310-52050i200210-200511

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-32021i200210-200511

main90311-38064i200510

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99124i200510

main90301-99135i200511-200608

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2i200510-200612

main35613-52020×2i200612

main35653-52010×3i200608

9010506280

main90105-06280

11 parts on this diagram · 3 diagrams in section
