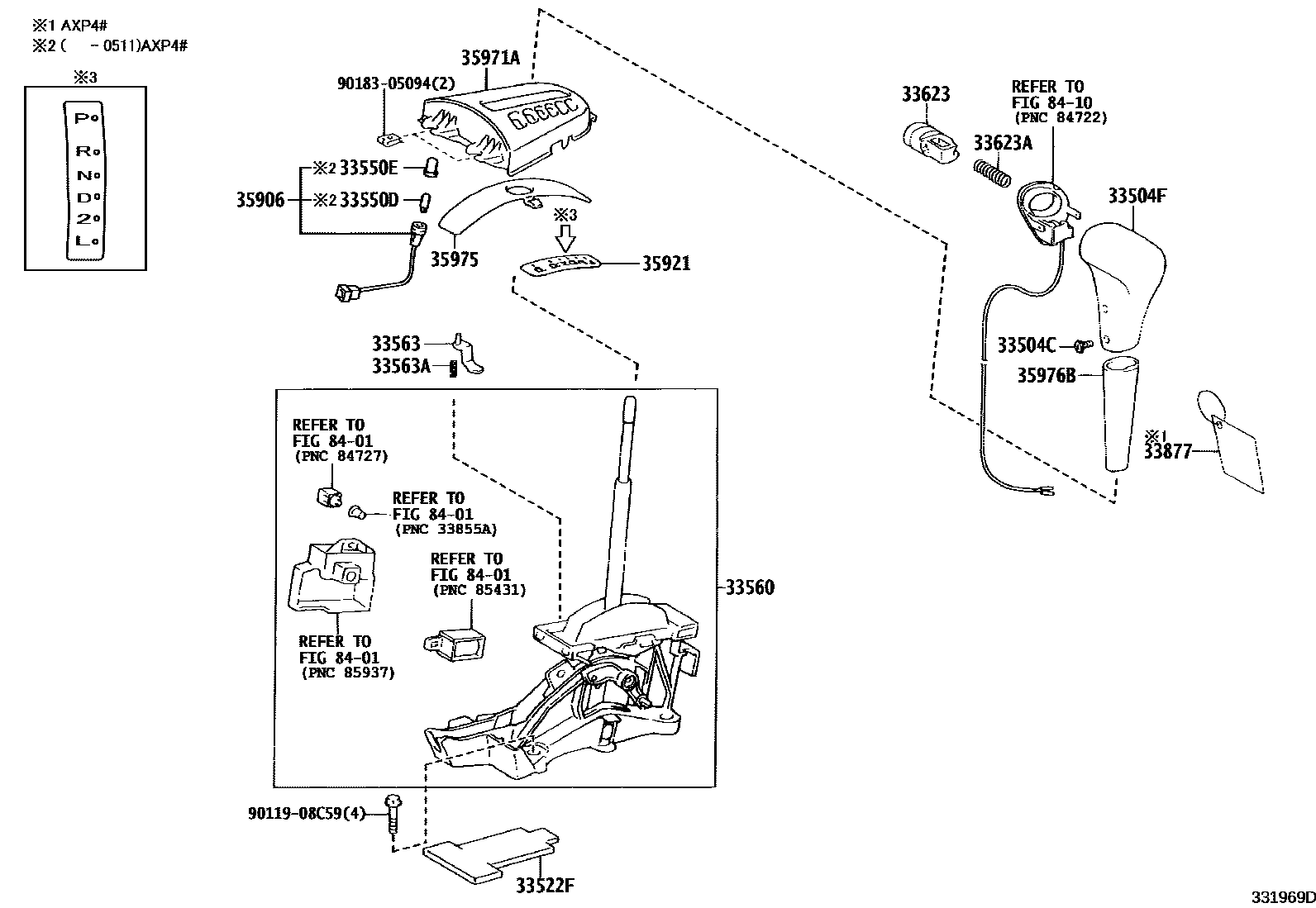

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iAXP4#..ATM200511-200608

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D050-B0iNCP4#..MTM200212-200603

DK.GRAY,TRIM1#

main33504-13010-C0iAXP42..MTM200511-200608

BLACK,TRIM0#

main33542-0D010-B0iNCP42..ATM..15E..TH;NCP42..RHD..ATM..(15G,15J,15S)200510-200708

DK.GRAY,TRIM1#

main33542-0D010-E0iNCP42..ATM..(15E,15S)..TH200311-200510

SANDAL WOOD,TRIM0#

main33542-0D020-B0iNCP42..LHD..ATM200303-200510

DK.GRAY,TRIM1#

main33542-0D020-E0iNCP42..(15E,15G)..TAIW200303-200510

DK.BROWN,TRIM0#

main33542-12320-B0iAXP42..ATM..(15GLI,GLS)200511-200608

DK.GRAY,TRIM1#

main33542-12320-E1iAXP4#..ATM200210-200511

DK.BROWN,TRIM0#

33522FSEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)

main33522-52010iAXP4#..ATM200210-200511

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iAXP4#..ATM200210-200511

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iAXP4#..ATM200210-200511

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0D010iNCP42..RHD..ATM200510-200708

main33560-0D020iNCP42..ATM..PHL200305-200510

main33560-0D030iNCP42..TAIW200510-201104

main33560-0D031iNCP42201105

main33560-52050iAXP4#..ATM200511-200608

33563BUTTON, SHIFT LOCK RELEASE

main33563-52050iAXP4#..ATM200210-200511

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90080-50356iNCP42..ATM200212-200512

main90501-05055iAXP4#..ATM200511-200608

33623BUTTON, SHIFT LEVER KNOB

main33623-0D010-B0iNCP42..RHD..ATM..(15E,15J)200212-200512

DK.GRAY,TRIM1#

main33623-0D020-B0iNCP42..15J..TAIW200303-200510

DK.GRAY,TRIM1#

main33623-0D030-B0iNCP42..RHD..ATM..(15G,15S)200510-200708

DK.GRAY,TRIM1#

main33623-0D030-E0iNCP42..ATM..(15E,15S)..TH200311-200510

SANDAL WOOD,TRIM0#

main33623-0D040-B0iNCP42..ATM..PHL200510-200702

DK.GRAY,TRIM1#

main33623-0D050-B0iNCP42..(15E,15G)..TAIW200510-201309

DK.GRAY,TRIM1#

main33623-0D050-E0iNCP42..(15E,15G)..TAIW200510-201309

DK.BROWN,TRIM0#

main33623-12160iAXP42..ATM200511-200608

main33623-12180-E1iAXP41..ATM200511-200603

DK.BROWN,TRIM0#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90080-50355iNCP42..ATM200510

main90501-06082iSCP4#..ATM200608

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-02010iNCP42..ATM..(MA,PHL,TH)200212-200512

main33877-12050iAXP4#..ATM200210-200511

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-0D010iNCP42..RHD..ATM200510-200708

main35906-0D020iNCP42..LHD..ATM200303-200510

main35906-52020iSCP4#..ATM200608

35921PLATE, CONTROL POSITION INDICATOR

main35921-0D010iNCP42..RHD..ATM200510-200708

main35921-0D020iNCP42..LHD..ATM200510

main35921-52030iSCP4#..ATM200608

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-0D010iNCP42..ATM..(15E,15J)..TH200510-200702

main35971-0D020iNCP42..15J..TAIW200510

DARK GRAY

main35971-0D030iNCP42..RHD..ATM..(15G,15S)200510-200708

METALLIC

main35971-0D040iNCP42..ATM..PHL200510-200702

main35971-0D050iNCP42..(15E,15G)..TAIW200303-200308

main35971-0D051iNCP42..(15E,15G)..TAIW200308-200510

main35971-0D060iNCP42..ATM..(15E,15S)..TH200311-200510

WOOD GRAIN

main35971-0D070iNCP42..(15E,15G)..TAIW200308-200510

METALLIC

main35971-0D080iNCP42..(15E,15G)..TAIW200510-201110

WOOD GRAIN

main35971-0D390iNCP42..15E201303

main35971-52070iAXP41..ATM200511-200603

main35971-52080iAXP42..ATM200210-200511

WOOD GRAIN

main35971-52270iAXP42..GLXI200511-200608

main35971-52280iAXP42..ATM..(15GLI,GLS)200511-200608

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-0D010iNCP42..RHD..ATM200510-200708

main35975-0D020iNCP42..LHD..ATM200510

main35975-52020iAXP4#..ATM200210-200511

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-0D010-B0iNCP42..ATM..(15E,15J)..TH200510-200702

DK.GRAY,TRIM1#

main35976-0D020-B0iNCP42..15J..TAIW200510-201309

DK.GRAY,TRIM1#

main35976-0D030iNCP42..RHD..ATM..(15G,15S)200212-200512

CHROME PLATED

main35976-0D040iNCP42..LHD..ATM..(15E,15G)200303-200510

CHROME PLATED

main35976-52030-E0iAXP41..ATM200511-200603

DK.BROWN,TRIM0#

main35976-52050-B0iSCP42..ATM..(GLI,GLS)200608

DK.GRAY,TRIM1#

main35976-52050-E0iAXP42..ATM200210-200511

DK.BROWN,TRIM0#

8401

8410

9011908C59

main90119-08C59

9018305094

main90183-05094

20 parts on this diagram · 7 diagrams in section
