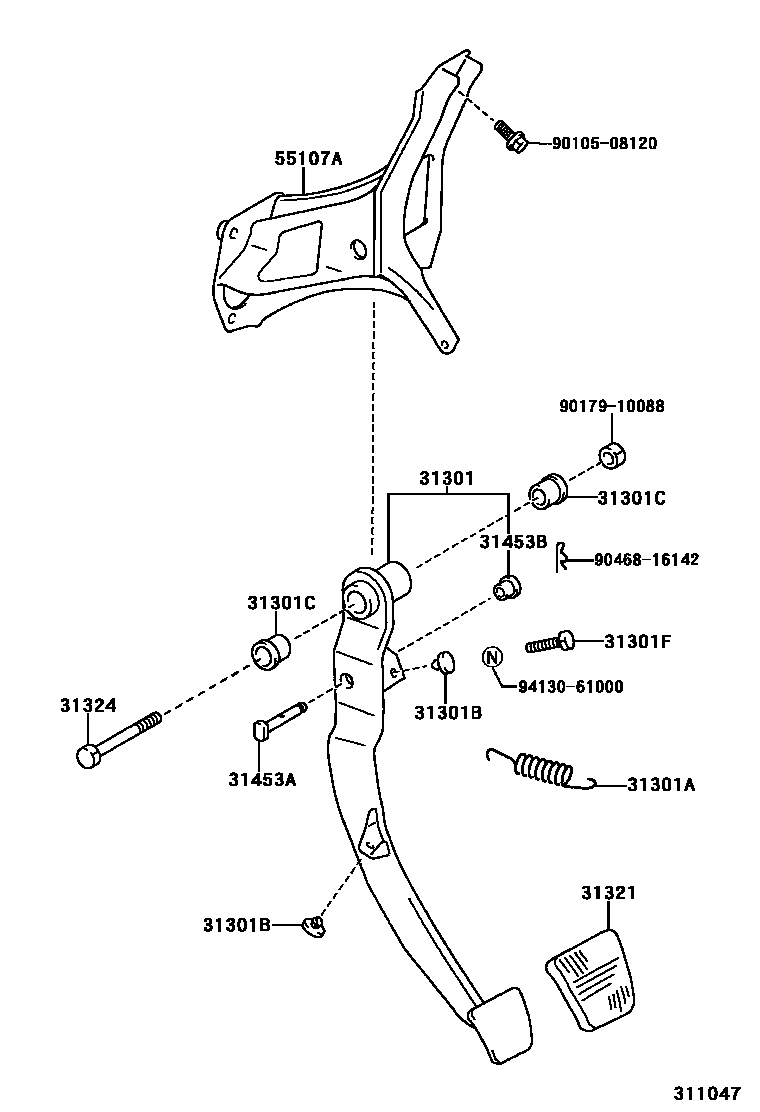

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D020iSCP4#..MTM200210-200608

main31301-0D040iNCP42..MTM..TH200212-200702

main31301-52020iNCP4#..LHD..MTM200305-200709

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iAXP4#..MTM200210-200709

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90080-54027iSCP4#..MTM200212-200608

main90541-06036iAXP4#..MTM200210-200709

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAXP4#..MTM200210-200709

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAXP4#..MTM200210-200709

31321PAD, CLUTCH PEDAL

main31321-52010iAXP4#..MTM200210-200709

31324SHAFT, CLUTCH PEDAL

main90109-10167iAXP4#..MTM200210-200709

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08294iAXP4#..MTM200210-200709

L=48.5

main90249-T0001iNCP42..MTM..TH200212-200702

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP4#..MTM200210-200702

main90386-08033iNCP42..VN200702-200709

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D020iSCP4#..MTM200210-200608

main55107-0D030iNCP42..MTM..TH200212-200702

main55107-52040iNCP4#..MTM..PHL200305-200709

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

9413061000

main94130-61000

14 parts on this diagram · 6 diagrams in section
