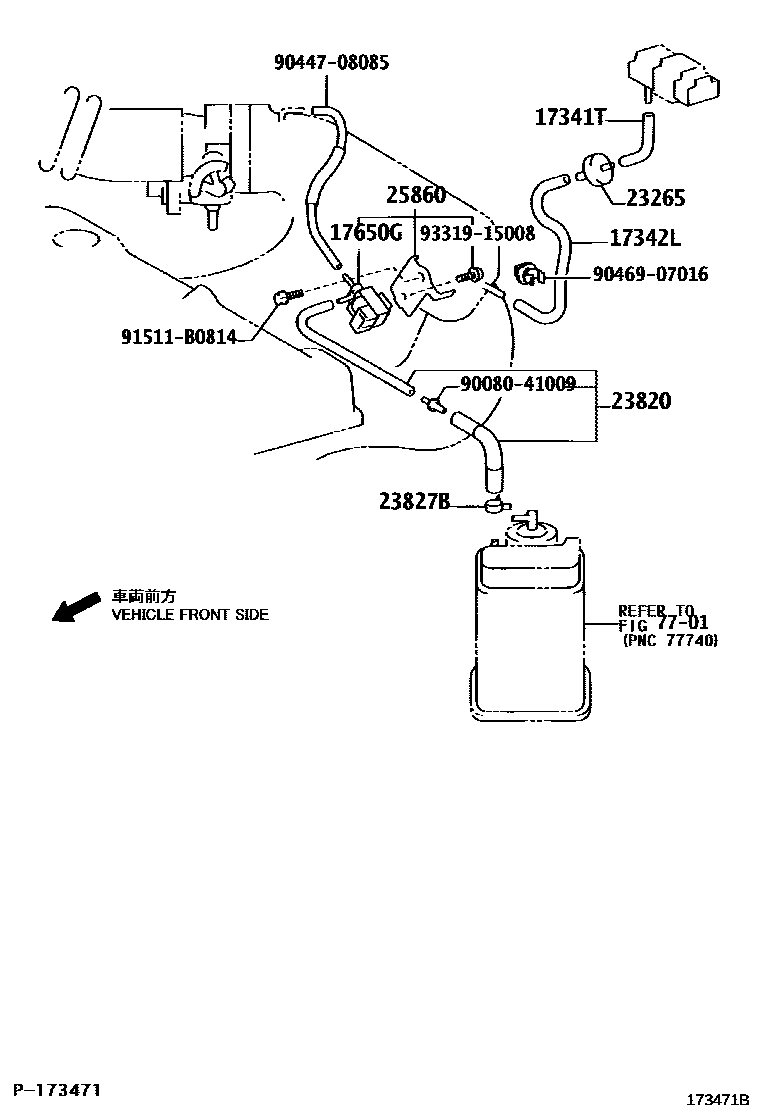

VACUUM PIPING

0001 1 0002 1 0003 1

17341THOSE, AIR, NO.1

main17341-14031i5AFE,8AFE..AXP4#200210-200511

main17341-23010i2SZFE,3SZFE..SCP4#200608

17342LHOSE, AIR, NO.2

main17342-14021i5AFE,8AFE..AXP4#200210-200511

main17342-23020i2SZFE,3SZFE..SCP4#200608

17650VALVE ASSY, VACUUM SWITCHING

main17650-97405i2SZFE,3SZFE..SCP4#200608

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12202i1NZFE,2NZFE..NCP4#200212-200603

main90910-12244i5AFE,8AFE..AXP4#200210-200511

23265FILTER, GAS, NO.1

main90917-11030i5AFE,8AFE..AXP4#200210-200511

23820HOSE ASSY, FUEL VAPOR FEED

main23820-02010i5AFE,8AFE..AXP4#200210-200511

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51100i5AFE,8AFE..AXP4#200210-200511

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-14030i5AFE,8AFE..AXP4#200210-200511

7701

9008041009

main90080-41009

9044708085

main90447-08085

9046907016

main90469-07016

91511B0814

main91511-B0814

9331915008

main93319-15008

14 parts on this diagram · 3 diagrams in section
