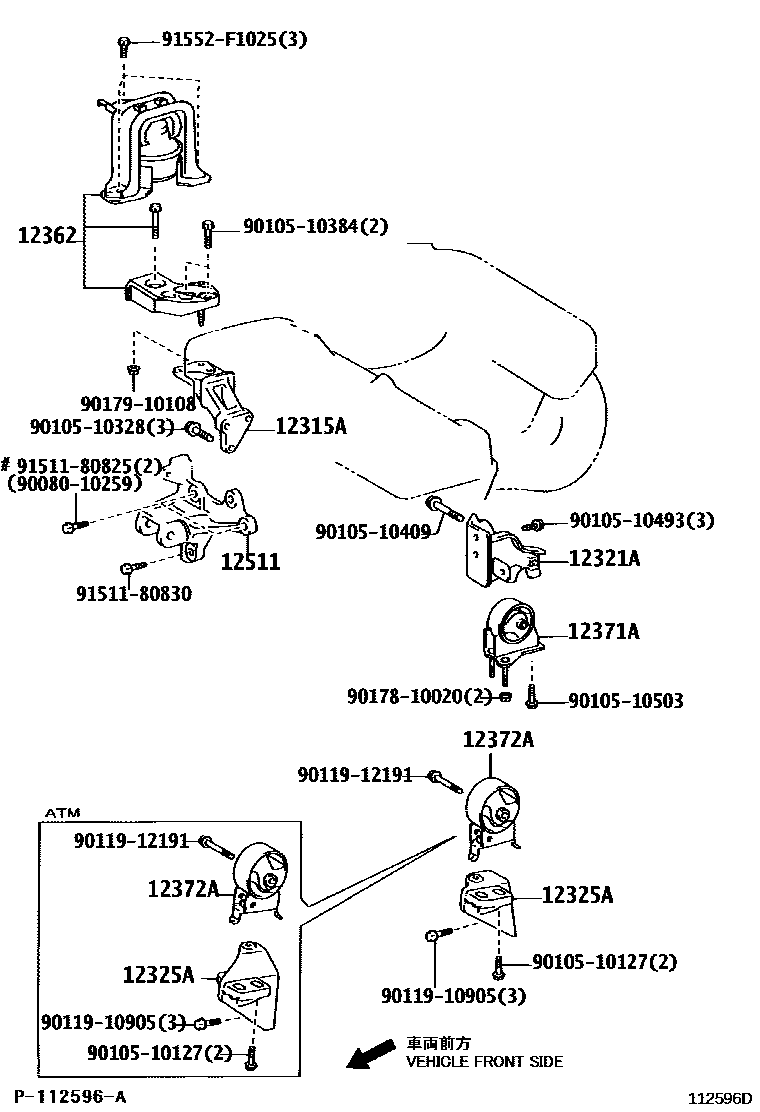

MOUNTING

0001 1 0002 1 0003 1

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-02050i5AFE,8AFE..AXP4#200210-200511

(L)

main12315-0M010i1NZFE..NCP42..PHL,TAIW,TH200212-200512

(L)

sub12315-0M011

main12315-0M011i1NZFE..NCP42..MA,PHL,TH,VN200512-200709

(L)

sub12315-0M012

main12315-0M031i1NZFE..NCP42..TAIW200612-201205

sub12315-0M032

main12315-0M032i1NZFE..NCP42201205

(L)

main12315-14020i5AFE,8AFE..AXP4#200210-200511

(J)

main12315-21030i2NZFE..NCP41200305-200510

sub12315-21031

main12315-21031i2NZFE..NCP41200510-200702

sub12315-21032

main12315-21040i1NZFE..NCP42200212-200510

(J)

sub12315-21041

main12315-21041i1NZFE..NCP42..TAIW200510-200709

(J)

sub12315-21042

main12315-21044i1NZFE..NCP42201205

(J)

main12315-23040i2SZFE..SCP41200608

main12315-23050i3SZFE..SCP42200608

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0M020i1NZFE..NCP42..TAIW200303-200510

main12321-0M030i1NZFE,2NZFE..NCP4#..MTM200212-200709

(L)

main12321-0M040i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200708

(L)

main12321-14030i2SZFE,3SZFE..SCP4#..MTM200210-200511

main12321-14040i5AFE,8AFE..AXP4#..ATM200210-200511

main12321-21100i1NZFE,2NZFE..NCP4#..MTM200212-200709

(J)

main12321-21110i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200708

(J)

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-02030i5AFE,8AFE..AXP4#..MTM200210-200511

main12325-02040i2SZFE,3SZFE..SCP4#..ATM200210-200511

main12325-0M030i1NZFE,2NZFE..NCP4#..MTM200212-200603

main12325-0M030i1NZFE,2NZFE..NCP4#..MTM200510-200709

(L)

main12325-0M040i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200512

main12325-0M040i1NZFE..NCP42..ATM..(MA,PHL,TH)200510-200708

(L)

main12325-0M050i1NZFE..NCP42..TAIW200303-200510

main12325-0M050i1NZFE..NCP42..TAIW200510

(L)

main12325-21020i1NZFE,2NZFE..NCP4#..MTM200510-200709

(J)

main12325-21060i1NZFE..NCP42..ATM200510

(J)

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-02060i5AFE,8AFE..AXP4#200210-200511

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-02140i2SZFE,3SZFE..SCP4#200210-200511

main12371-0M010i1NZFE..NCP42..TAIW200303-201001

main12371-0M011i1NZFE..NCP42201001

main12371-0M020i1NZFE,2NZFE..NCP4#..MTM200212-200709

main12371-0M030i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200708

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-02160i5AFE,8AFE..AXP4#..MTM200210-200511

main12372-02170i2SZFE,3SZFE..SCP4#..ATM200210-200511

main12372-0M020i1NZFE..NCP42..TAIW200303-200510

main12372-0M030i1NZFE,2NZFE..NCP4#..MTM200212-200709

main12372-0M040i1NZFE..NCP42..ATM..(MA,PHL,TH)200212-200708

12511BRACKET, ALTERNATOR, NO.1

main12511-02080i5AFE,8AFE..AXP4#200210-200511

(L)

main12511-15060i5AFE,8AFE..AXP4#200210-200511

(J)

9008010259

main90080-10259

9010510127

main90105-10127

9010510328

main90105-10328

9010510384

main90105-10384

9010510409

main90105-10409

9010510493

main90105-10493

9010510503

main90105-10503

9011910905

main90119-10905

9011912191

main90119-12191

9017810020

main90178-10020

9017910108

main90179-10108

9151180825

main91511-80825

9151180830

main91511-80830

91552F1025

main91552-F1025

21 parts on this diagram · 3 diagrams in section
