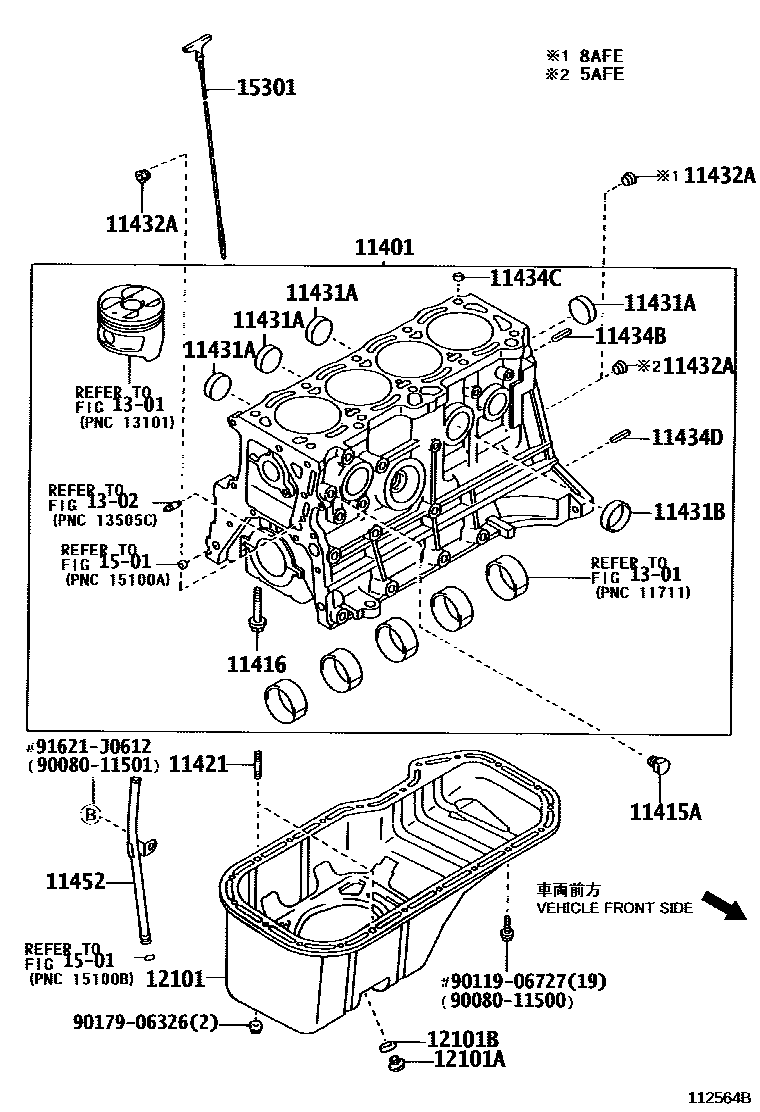

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09170i8AFE..AXP41200210-200511

main11401-09250i5AFE..AXP42200210-200511

main11401-09550i8AFE..AXP41200511

main11401-09560i5AFE..AXP42200511

main11401-23906i2SZFE..SCP41200608

main11401-29686i1NZFE..NCP42200301-200312

sub11401-29687

main11401-29845i2NZFE..NCP41200305-200510

sub11401-29846

main11401-29855i1NZFE..NCP42200510-200812

main11401-29856i1NZFE..NCP42200812-201205

sub11401-29857

main11401-29858i1NZFE..NCP42201205

sub11401-80881

main11401-B0040i3SZFE..SCP42200608

sub11401-B1020

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZFE..NCP42..MA200212-200512

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90048-08005i2SZFE,3SZFE..SCP4#200608

main90345-52003i5AFE,8AFE..AXP4#200210-200511

main90910-09087i1NZFE..NCP42..VN200212-200603

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05271×10i2SZFE,3SZFE..SCP4#200608

main90105-10007×10i5AFE,8AFE..AXP4#200210-200511

main90910-02125×10i1NZFE..NCP42..VN200212-200603

sub90910-02207

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i5AFE,8AFE..AXP4#200210-200511

main92122-B0614×3i2SZFE,3SZFE..SCP4#200608

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i5AFE,8AFE..AXP4#200210-200511

main96411-62500×3i2SZFE,3SZFE..SCP4#200608

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i5AFE,8AFE..AXP4#200210-200511

main96411-63000×4i2SZFE,3SZFE..SCP4#200608

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53006×2i5AFE,8AFE..AXP4#200210-200511

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i5AFE,8AFE..AXP4#200210-200511

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90042-53013×2i2SZFE,3SZFE..SCP4#200608

L=12,OD=12

main90250-08120×2i1NZFE,2NZFE..NCP4#..PHL,TAIW,TH200212-200510

L=18,OD=8

main90250-T0007×2i1NZFE..NCP42200702

L=18,OD=8,(L)

main90253-13017×2i5AFE,8AFE..AXP4#200210-200511

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90042-50142×2i2SZFE,3SZFE..SCP4#200608

L=12,OD=6

main90250-06003×2i5AFE,8AFE..AXP4#200210-200511

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-0M010i1NZFE..NCP42..MA,PHL,TH,VN200510-200709

(L)

main11452-0M020i1NZFE..NCP42..TAIW200303-200510

(L)

main11452-14010i5AFE,8AFE..AXP4#200511

main11452-21030i2NZFE..NCP41200305-200510

12101PAN SUB-ASSY, OIL

main12101-02050i5AFE,8AFE..AXP4#200212-200511

(L)

main12101-16100i5AFE,8AFE..AXP4#200511

(J)

main12101-23060i2SZFE,3SZFE..SCP4#200608

main12111-0M010i1NZFE..NCP42..VN200212-200603

(L)

main12111-21033i2NZFE..NCP41200305-200510

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE..NCP42..MA200212-200512

main90341-12032i2SZFE,3SZFE..SCP4#200608

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281i2SZFE,3SZFE..SCP4#200608

main90430-12031i1NZFE,2NZFE..NCP4#200510

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15051i5AFE,8AFE..AXP4#200511

main15301-21030i1NZFE..NCP42..MA200212-200512

main15301-21040i1NZFE..NCP42200710-201204

main15301-21060i1NZFE..NCP42201204

sub15301-21061

9008011500

main90080-11500

9008011501

main90080-11501

9011906727

main90119-06727

9017906326

main90179-06326

91621J0612

main91621-J0612
