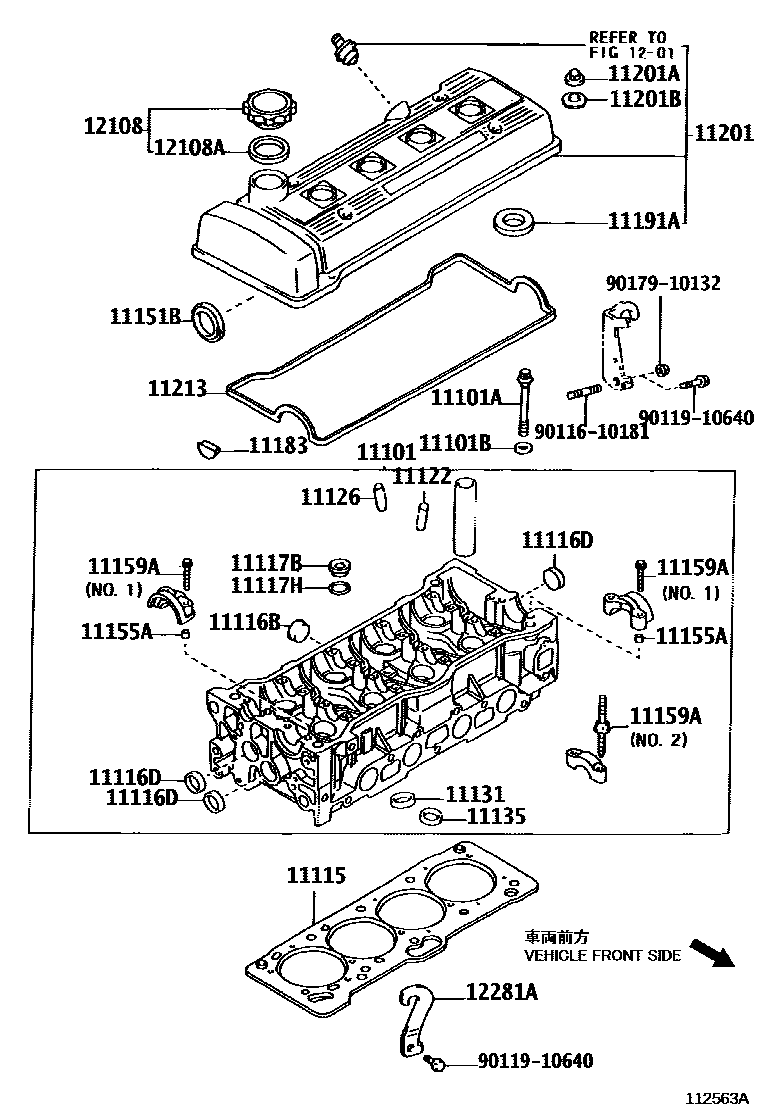

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
(L)
11115GASKET, CYLINDER HEAD
T=1.25
sub11115-21040
sub11115-21050
sub11115-21080
sub11115-21090
sub11115-21091
T=0.41
11116BPLUG, TIGHT, NO.2
11116DPLUG, TIGHT, NO.4
11117BPLUG, W/HEAD TAPER SCREW, NO.2
(J)
(L)
11117HGASKET(FOR WATER HOLE)
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
(J)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L),NO.1
(J),NO.1
NO.2
NO.2
NO.1
11183PLUG, SEMICIRCULAR
(L)
(J)
11191AGASKET(FOR SPARK PLUG TUBE)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
12108CAP SUB-ASSY, OIL FILLER
(L)
(L)
(J)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
12281AHANGER, ENGINE, NO.1
(L)
(L)
(J)
(J)
9011610181
main90116-10181
9011910640
main90119-10640
9017910132
main90179-10132
27 parts on this diagram · 3 diagrams in section
