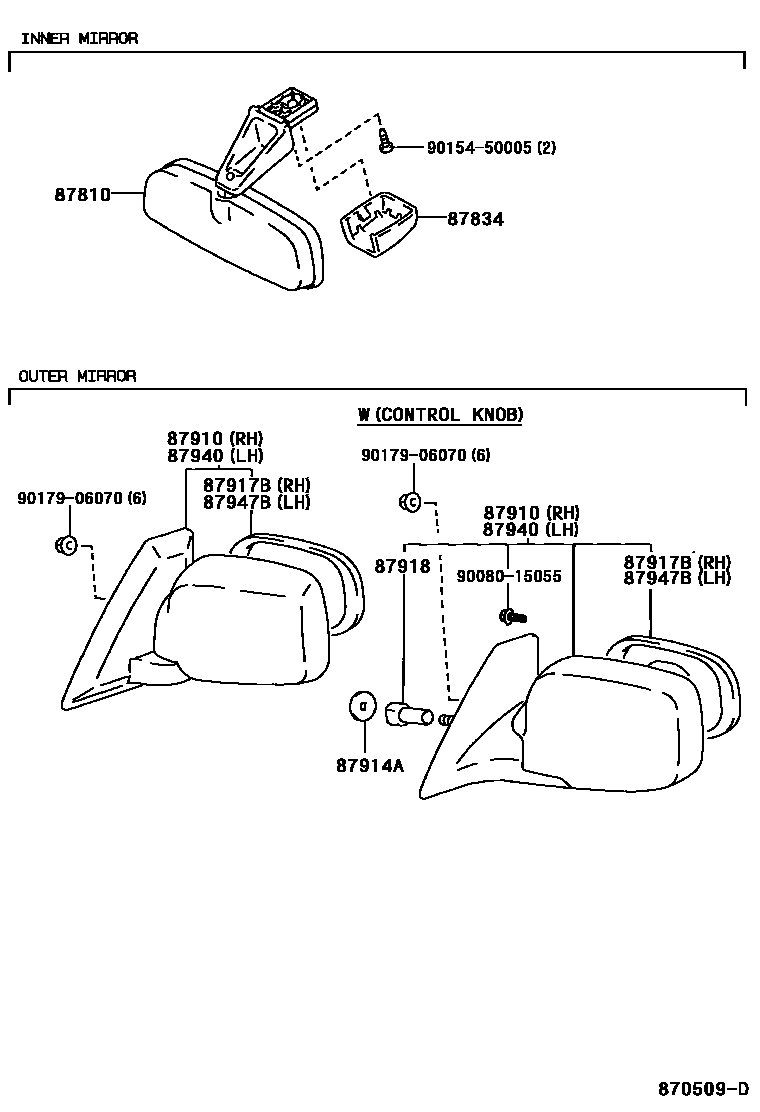

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0A010-B0iAL50199612-199803

GRAY,TRIM1#

main87810-0A020-A0iAL50..GLI..GEN200203

IVORY,TRIM0#

main87810-0A020-B0iAL50..GLI199803

GRAY,TRIM1#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-0A010-A0iAL50..GLI..GEN200203

IVORY,TRIM0#

main87834-0A010-B0iAL50199612

GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0A010iAL50..XLI199612-199810

main87910-0A011iAL50..XLI..GEN199810

main87910-0A020iAL50..GLI199612-199810

W(CONTROL KNOB)

main87910-0A021iAL50..XLI..IDN199810-200111

W(CONTROL KNOB)

main87910-0A030-A0iAL50..GLI199810-200201

SUPER WHITE 4,050

sub87910-1G190

main87910-0A030-B0iAL50..GLI..GEN199810-200111

BLUISH SILVER ME.,1A0

sub87910-1G190

main87910-0A030-B1iAL50..(GLI,SLI)..GEN200111

SILVER ME.,1D0

sub87910-1G190

main87910-0A030-D0iAL50..GLI..GEN199810-200111

RED MM,3K4

sub87910-1G190

main87910-0A030-D1iAL50..GLI..IDN200003

RED,3E6

sub87910-1G190

main87910-0A030-D2iAL50..GLI..IDN200003

RED MC,3H4

sub87910-1G190

main87910-0A030-D4iAL50..(GLI,SLI)..GEN200111

RED MC.,3M8

sub87910-1G190

main87910-0A030-E0iAL50..GLI199810-199910

FLAXEN MM,4M7

sub87910-1G190

main87910-0A030-E1iAL50..GLI..IDN200003

BEIGE ME.,4M9

sub87910-1G190

main87910-0A030-F0iAL50..GLI..GEN199910-200111

PL.YELLOW OP,574

sub87910-1G190

main87910-0A030-F1iAL50..(GLI,SLI)..GEN200111

CHAMPAGNE ME.,586

sub87910-1G190

main87910-0A030-G0iAL50..GLI199810-200201

BLUISH GREEN ME.,6P1

sub87910-1G190

main87910-0A030-G3iAL50..(GLI,SLI)..GEN199910-200201

DK.GREEN MC.,6Q7

sub87910-1G190

main87910-0A030-H0iAL50..GLI199810-199910

TURQOISE M,741

sub87910-1G190

main87910-0A030-H1iAL50..GLI..IDN200003

TURQUOISE M.M,746

sub87910-1G190

main87910-0A030-J0iAL50..GLI199810-199910

DK.BLUE M.M.,8L2

sub87910-1G190

main87910-0A030-J1iAL50..GLI..IDN200003

STRONG BLUE M,8B6

sub87910-1G190

main87910-0A030-J2iAL50..GLI..IDN200003

PURPLISH BLUE M.M.,8K9

sub87910-1G190

main87910-0A030-J3iAL50..(GLI,SLI)..GEN199910-200201

BLUE MC.,8M6

sub87910-1G190

main87910-0A030-K0iAL50..GLI..GEN199810-200010

GRAYISH PURPLE ME.,926

sub87910-1G190

main87910-0A030-K2iAL50..GLI..GEN200010-200111

AMETHYST ME.,941

sub87910-1G190

87914ACOVER, OUTER MIRROR KNOB

main87914-16030iAL50..GLI199612-200111

87917BMIRROR, OUTER REAR VIEW, RH

main87917-0A020iAL50..GLI199612-199810

main87917-0A021iAL50..SLI;AL50..XLI..IDN199810-200111

main87931-1E720iAL50..GLI199810-200111

87918KNOB, CONTROL OUTER MIRROR

main87918-0A010iAL50199612-200111

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0A010iAL50..XLI199612-199810

main87940-0A011iAL50..XLI..GEN199810

main87940-0A020iAL50199612-199810

W(CONTROL KNOB)

main87940-0A021iAL50..XLI..IDN199810-200111

W(CONTROL KNOB)

main87940-0A030-A0iAL50..GLI..IDN199810-200201

SUPER WHITE 4,050

sub87940-1G240

main87940-0A030-B0iAL50..GLI..GEN199810-200111

BLUISH SILVER ME.,1A0

sub87940-1G240

main87940-0A030-B1iAL50..(GLI,SLI)..GEN200111

SILVER ME.,1D0

sub87940-1G240

main87940-0A030-D0iAL50..GLI..GEN199810-200111

RED MM,3K4

sub87940-1G240

main87940-0A030-D1iAL50..GLI..IDN200003

RED,3E6

sub87940-1G240

main87940-0A030-D2iAL50..GLI..IDN200003

RED MC,3H4

sub87940-1G240

main87940-0A030-D4iAL50..(GLI,SLI)..GEN200111

RED MC.,3M8

sub87940-1G240

main87940-0A030-E0iAL50..GLI199810-199910

FLAXEN MM,4M7

sub87940-1G240

main87940-0A030-E1iAL50..GLI..IDN200003

BEIGE ME.,4M9

sub87940-1G240

main87940-0A030-F0iAL50..GLI..GEN199910-200111

PL.YELLOW OP,574

sub87940-1G240

main87940-0A030-F1iAL50..(GLI,SLI)..GEN200111

CHAMPAGNE ME.,586

sub87940-1G240

main87940-0A030-G0iAL50..GLI199810-200201

BLUISH GREEN ME.,6P1

sub87940-1G240

main87940-0A030-G3iAL50..(GLI,SLI)..GEN199910-200201

DK.GREEN MC.,6Q7

sub87940-1G240

main87940-0A030-H0iAL50..GLI199810-199910

TURQUOISE M,741

sub87940-1G240

main87940-0A030-H1iAL50..GLI..IDN200003

TURQUOISE M.M,746

sub87940-1G240

main87940-0A030-J0iAL50..GLI199810-199910

DK.BLUE M.M.,8L2

sub87940-1G240

main87940-0A030-J1iAL50..GLI..IDN200003

STRONG BLUE M,8B6

sub87940-1G240

main87940-0A030-J2iAL50..GLI..IDN200003

PURPLISH BLUE M.M.,8K9

sub87940-1G240

main87940-0A030-J3iAL50..GLI..GEN199910-200201

BLUE MC.,8M6

sub87940-1G240

main87940-0A030-K0iAL50..GLI..GEN199810-200010

GRAYISH PURPLE ME.,926

sub87940-1G240

main87940-0A030-K2iAL50..(GLI,SLI)..GEN200010-200111

AMETHYST ME.,941

sub87940-1G240

87947BMIRROR, OUTER REAR VIEW, LH

main87947-0A020iAL50..GLI199612-199810

main87947-0A021iAL50..SLI;AL50..XLI..IDN199810-200111

main87961-1H050iAL50..GLI199810-200111

9008015055

main90080-15055

9015450005

main90154-50005

9017906070

main90179-06070

11 parts on this diagram · 1 diagram in section
