REAR COMBINATION LAMP

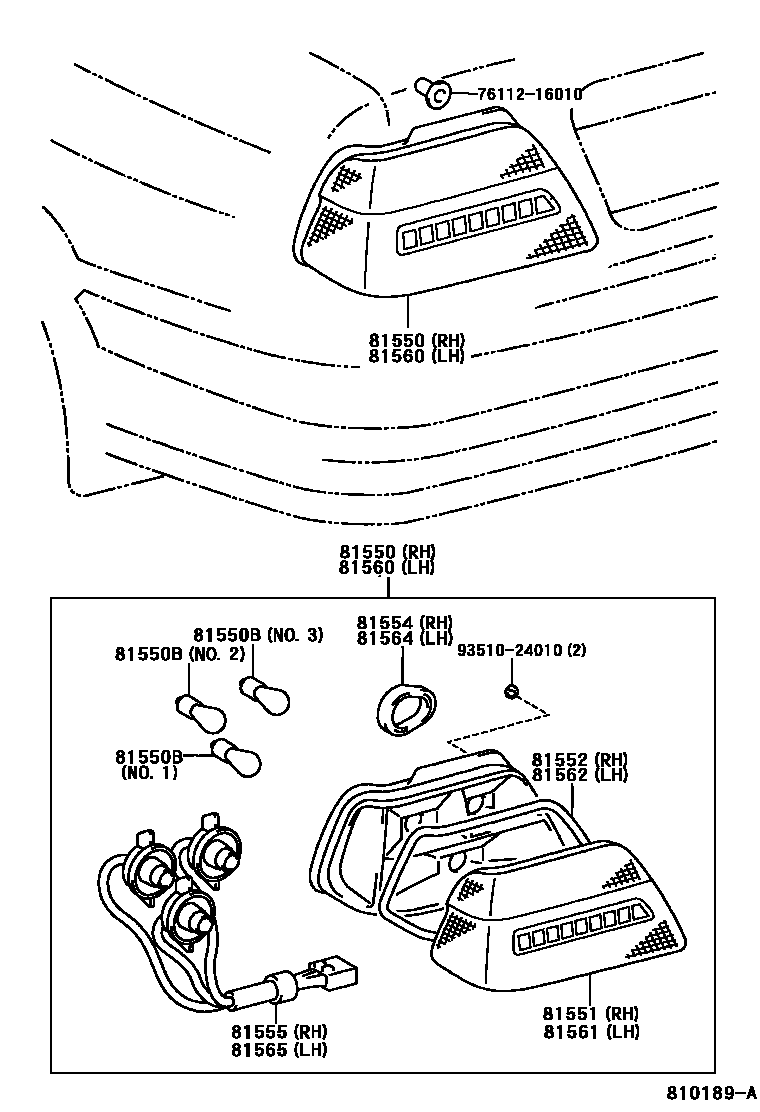

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0A010i199612-199910

LENS:CLEAR

main81550-0A020i200003-200104

LENS:CLEAR

main81550-0A030i200111-200203

LENS:CLEAR

main81550-0A040i200203

LENS:GOLD

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81050×2i199612-199910

12V 21W,NO.1

main90080-81051×2i200104

12V 21W,NO.1

main90080-81056×2i199910-200104

12V 21/5W,NO.2

main90981-15009×2i200003-200104

12V 21W,AMBER,NO.1

main99132-11210×2i200003-200104

12V 21W,NO.2

main99132-21210×2i200003-200104

12V 21/5W,NO.3

81551LENS, REAR COMBINATION LAMP, RH

main81551-0A010i199612-199910

LENS:CLEAR

main81551-0A030i200111-200203

LENS:CLEAR

main81551-0A040i200203

LENS:GOLD

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-0A010i199612-199910

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-0A010×3i199612-200104

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0A010i199612-199910

main81555-0A030i200104

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0A010i199612-199910

LENS:CLEAR

main81560-0A020i200003-200104

LENS:CLEAR

main81560-0A030i200104-200111

LENS:CLEAR

main81560-0A040i200203

LENS:GOLD

81561LENS, REAR COMBINATION LAMP, LH

main81561-0A010i199612-199910

LENS:CLEAR

main81561-0A030i199910-200104

LENS:CLEAR

main81561-0A040i200203

LENS:GOLD

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-0A010i199612-199910

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-0A010×3i200104

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-0A010i199612-199910

main81565-0A030i199910-200104

7611216010

main76112-16010

9351024010

main93510-24010

13 parts on this diagram · 2 diagrams in section
