SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iAL50199612

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iAL50199612

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0A010iAL50199612-199910

main61023-0A030iAL50..GEN199910

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0A010iAL50199612-199910

main61024-0A030iAL50..GEN199910

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-16030iAL50199612

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0A010iAL50199612-199910

main61037-0A020iAL50..GEN199910

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-0A010iAL50199612-199910

main61038-0A030iAL50..GEN199910

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0A010iAL50199612-199910

main61108-0A020iAL50..GEN199910

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0A010iAL50199612-199910

main61109-0A020iAL50..GEN199910

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0A010iAL50199612

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0A010iAL50199612

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0A010iAL50199612

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0A010iAL50199612

61147AEXTENSION, FRONT BODY PILLAR, UPPER OUTER

main61147-0A010iAL50199612

61148EXTENSION, FRONT BODY PILLAR, OUTER LH

main61148-0A010iAL50199612

61197BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 RH

main61197-16011iAL50..GLI199612-200111

61198BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 LH

main61198-16011iAL50..GLI199612-200111

61211RAIL, ROOF SIDE, OUTER RH

main61211-0A010iAL50199612

61212RAIL, ROOF SIDE, OUTER LH

main61212-0A010iAL50199612

61231RAIL, ROOF SIDE, INNER RH

main61231-0A010iAL50199612-199910

main61231-0A020iAL50..GEN199910

61232RAIL, ROOF SIDE, INNER LH

main61232-0A010iAL50199612-199910

main61232-0A020iAL50..GEN199910

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-0A010iAL50199612

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-0A010iAL50199612

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0A010iAL50199612

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0A010iAL50199612

61343APILLAR, CENTER BODY, INNER RH

main61343-0A010iAL50199612-199810

sub61343-0A020

main61343-0A020iAL50199810

61344APILLAR, CENTER BODY, INNER LH

main61344-0A010iAL50199612-199810

sub61344-0A020

main61344-0A020iAL50199810

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-0A010iAL50199612

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-0A010iAL50199612

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-16010iAL50199612

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-16010iAL50199612

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-0A900iAL50199612

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-0A900iAL50199612

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-0A010iAL50199612

61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH

main61426-0A010iAL50199612

61427REINFORCEMENT, ROCKER PANEL, NO.5 RH

main61427-0A010iAL50199612-199910

61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH

main61428-0A010iAL50..IDN199612-199910

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0A900iAL50..GLI199612-199910

W(SEAT BERT ANCHOR)

main61607-0A901iAL50..SLI,XLI199612-199910

61608DPANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-0A900iAL50..GLI,SLI;AL50..5F..XLI199612-199910

W(SEAT BERT ANCHOR)

main61608-0A901iAL50..SLI,XLI199612-199910

61611PANEL, QUARTER, RH

main61601-0A900iAL50199612

61612PANEL, QUARTER, LH

main61602-0A010iAL50199612

main61602-0A020iAL50..GLI..GEN199705

SINGAPORE SPEC

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-0A900iAL50199612

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-0A900iAL50199612

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0A010iAL50199612

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-0A010iAL50199612

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0A010iAL50199612

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-0A010iAL50199612

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-0A010iAL50199612

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-0A010iAL50199612

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-16030iAL50..GLI,SLI;AL50..5F..XLI199612-199910

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61665-16030iAL50..GLI199612-199910

61731BPANEL, ROOF SIDE, INNER RH

main61731-0A010iAL50199612-199810

sub61731-0A020

main61731-0A020iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

61732BPANEL, ROOF SIDE, INNER LH

main61732-0A010iAL50199612-199810

sub61732-0A020

main61732-0A020iAL50..4FC;AL50..5F..(GLI,SLI)199810-199910

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0A010iAL50199612

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-0A010iAL50199612

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-16030iAL50199612

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-16030iAL50199612

62151BPAD, COWL SIDE SILENCER

main62151-0A010iAL50199612

62553DPAD, PILLAR, NO.3

main62553-0A010iAL50199612

64181AREINFORCEMENT, REAR SEAT BELT ANCHOR, RH

main64181-16040iAL50..GLI199612-199910

64182BREINFORCEMENT, REAR SEAT BELT ANCHOR, LH

main64181-16040iAL50..GLI199612-199910

64213EXTENSION, PACKAGE TRAY STRAINER, RH

main64213-0A010iAL50199612

64214EXTENSION, PACKAGE TRAY STRAINER, LH

main64214-0A010iAL50199612

64312BRACKET, PACKAGE TRAY, RH

main64312-0A010iAL50199612

64313BRACKET, PACKAGE TRAY, LH

main64313-0A010iAL50199612

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-0A010iAL50199612

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-0A010iAL50199612

9017904026

main90179-04026

9017908102

main90179-08102

9033325001

main90333-25001

9033330008

main90333-30008

9054111006

main90541-11006

9095001126

main90950-01126

9095001637

main90950-01637

9095001771

main90950-01771

9095001826

main90950-01826

9095001864

main90950-01864

9165160618

main91651-60618

9166160816

main91661-60816

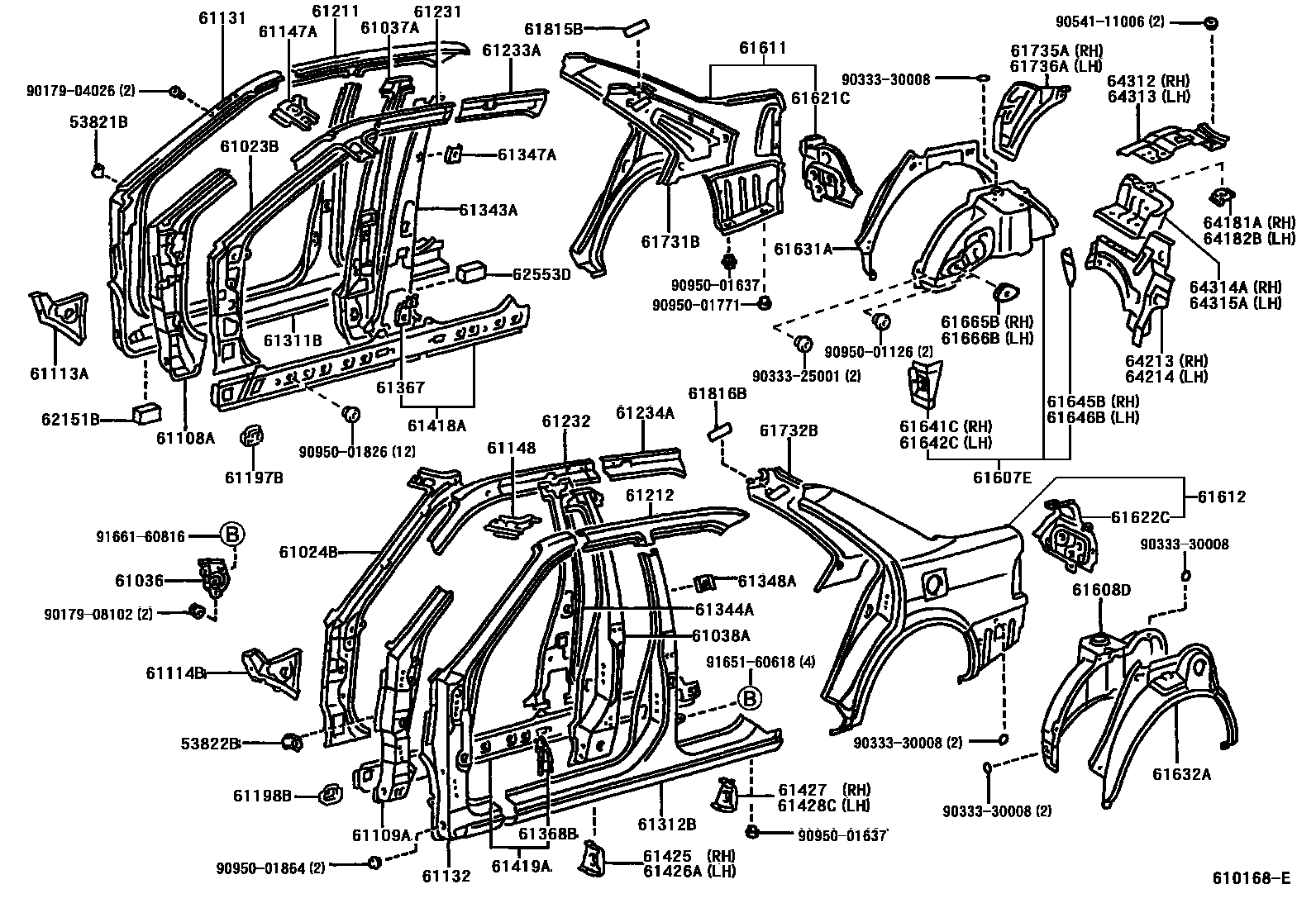

79 parts on this diagram · 1 diagram in section
