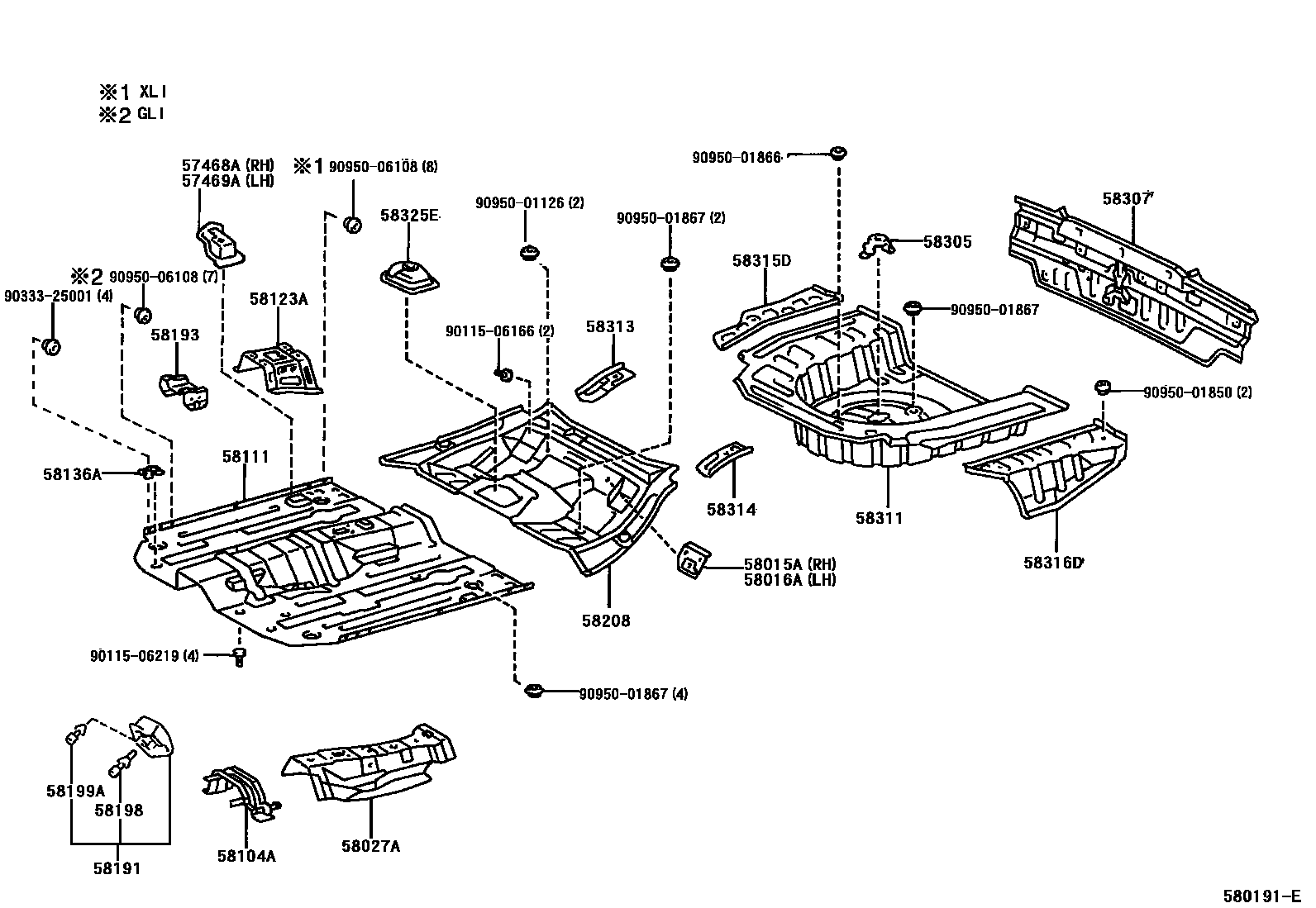

FLOOR PAN & LOWER BACK PANEL

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10030iAL50199612

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10030iAL50199612

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-16060iAL50..GLI199903-199910

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iAL50..GLI199612-199810

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16091iAL50199612

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-16020iAL50199612

58111PAN, FRONT FLOOR

main58111-0A010iAL50199612

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10050iAL50199612-199910

main58123-16050iAL50..GLI..GEN199910

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030×2iAL50199612

58191FOOTREST, FRONT FLOOR

main58191-16070iAL50..GLI..GEN199910

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16050iAL50..SLI,XLI;AL50..GLI..IDN199910

main58193-16060iAL50..GLI..GEN199910

58198CLIP, FOOTREST

main58198-16030iAL50..GLI..GEN199910

58199ACLIP, FOOTREST, NO.2

main58199-16020iAL50..GLI..GEN199910

58208PAN, CENTER FLOOR

main58211-0A010iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN199910

W(SEAT BERT ANCHOR)

main58211-0A020iAL50..XLI..GEN199910

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAL50199612

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0A010iAL50199612

58311PAN, REAR FLOOR

main58311-0A010iAL50199612

58313PANEL, REAR FLOOR SIDE, RH

main58313-16030iAL50199612

58314PANEL, REAR FLOOR SIDE, LH

main58314-16090iAL50199612

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0A010iAL50199612

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0A010iAL50199612

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0A010iAL50..GEN199612

main58325-0A020iAL50..IDN199810

9011506166

main90115-06166

9011506219

main90115-06219

9033325001

main90333-25001

9095001126

main90950-01126

9095001850

main90950-01850

9095001866

main90950-01866

9095001867

main90950-01867

9095006108

main90950-06108

30 parts on this diagram · 1 diagram in section
