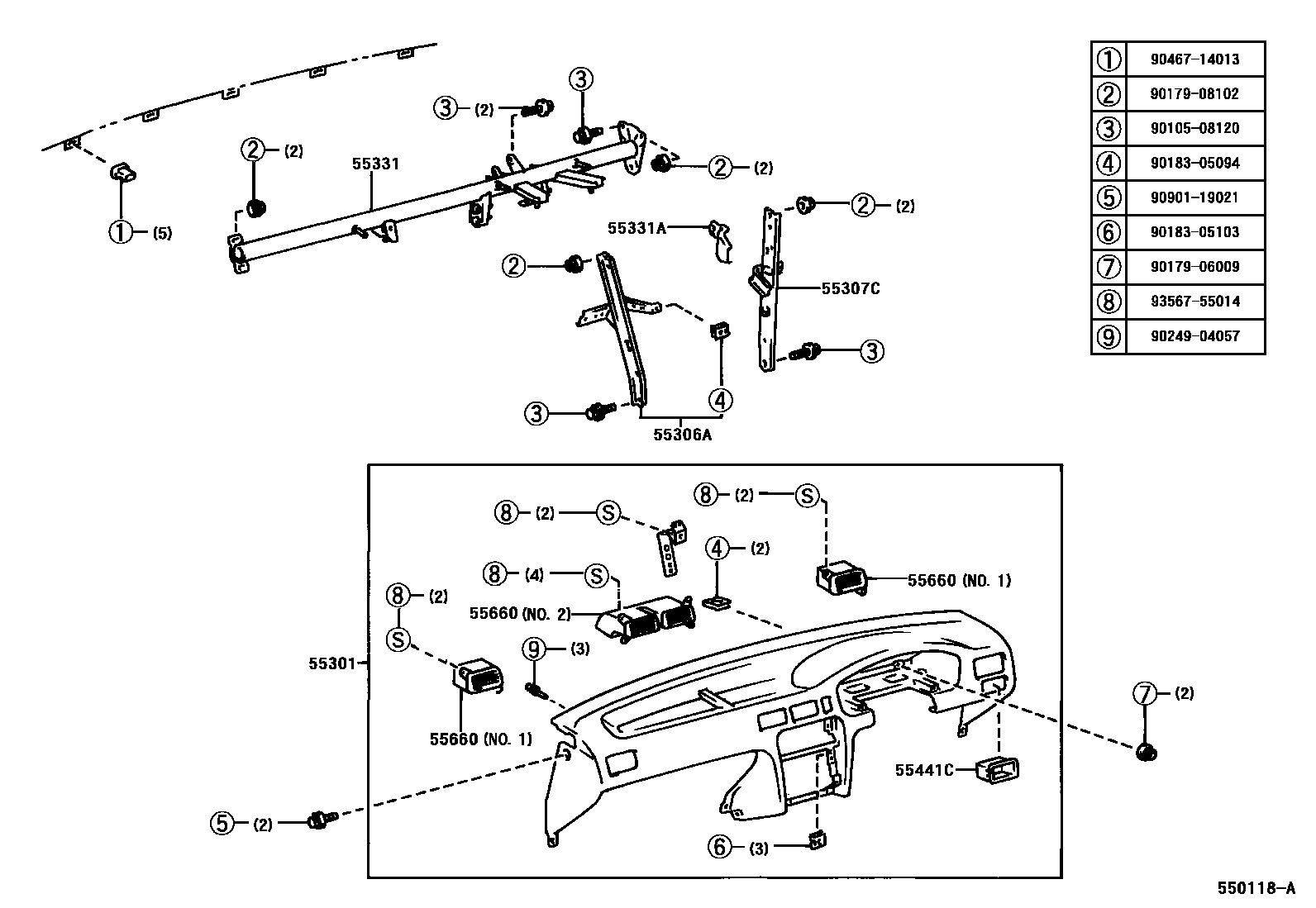

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0A010-B0iAL50..(SLI,XLI)..GEN200203

BLUISH GRAY,TRIM0#,1#

main55301-0A020-B0iAL50..IDN200003

BLUISH GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0A010iAL50199612

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0A010iAL50199612

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0A010iAL50199612-199910

main55330-0A020iAL50..IDN199810

main55330-0A030iAL50..GEN199910

55331APRTECTOR, REINFORCEMENT, INSTRUMENT PANEL

main45874-16060iAL50199612

55441CBOX, INSTRUMENT PANEL COIN

main55441-0A010-B0iAL50199612-199803

BLUISH GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-0A010-B0×2iAL50199612

BLUISH GRAY,TRIM1#,NO.1

main55660-0A010-B0iAL50..GLI..GEN200203

BLUISH GRAY,TRIM0#,1#,NO.2

9010508120

main90105-08120

9017906009

main90179-06009

9017908102

main90179-08102

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714013

main90467-14013

9090119021

main90901-19021

9356755014

main93567-55014

16 parts on this diagram · 2 diagrams in section
