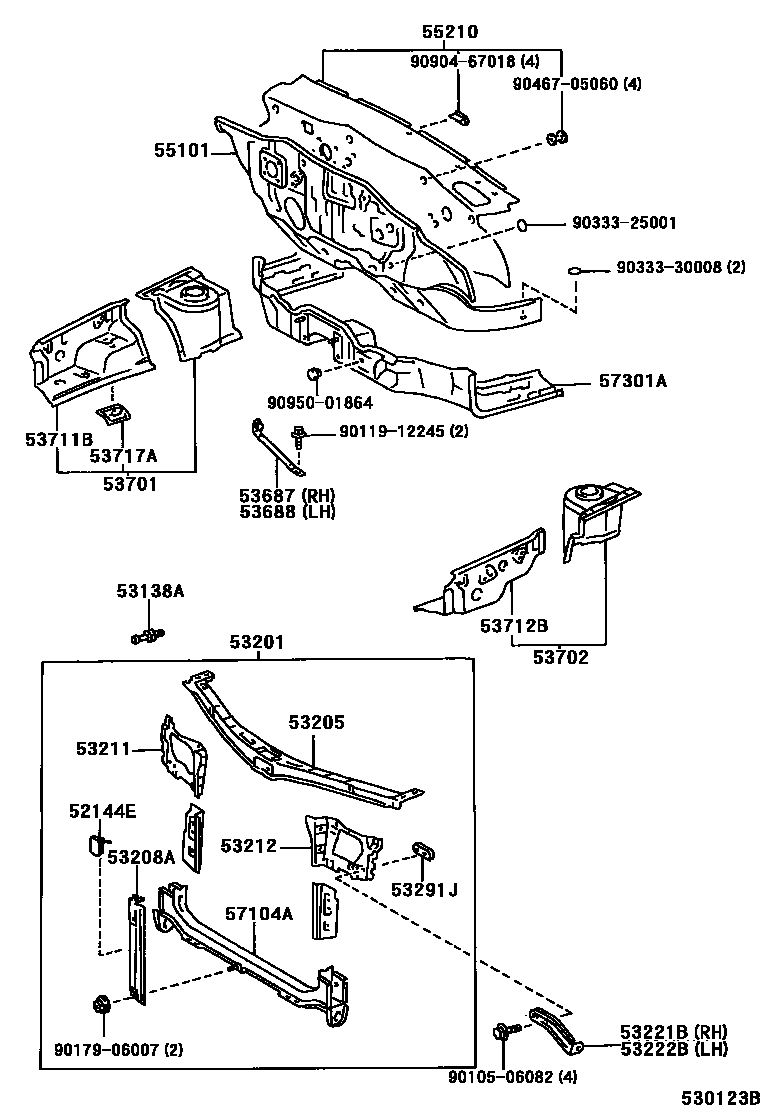

FRONT FENDER APRON & DASH PANEL

52144ESTAY, FRONT BUMPER, CENTER

main52144-16160iAL50199810

53138ARETAINER, HEADLAMP DOOR, INNER

main53138-16030×2iAL50199612

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0A010iAL50..IDN200003-200104

main53201-0A020iAL50..GEN199912-200104

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0A010iAL50199612

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-0A010iAL50..IDN200003-200104

main53215-0A020iAL50..GEN199912-200104

53211SUPPORT, RADIATOR, RH

main53211-0A010iAL50199612

53212SUPPORT, RADIATOR, LH

main53212-0A010iAL50199612

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-0A010iAL50199612

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-0A010iAL50199612

53291JSEAL, RADIATOR SUPPORT

main53291-0A010×2iAL50199612

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-0A010iAL50199612

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53687-0A010iAL50199612

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0A010iAL50..ATM..GLI199612-199902

main53701-0A020iAL50..SLI,XLI;AL50..5F..GLI199612-199902

main53701-0A030iAL50..GLI;AL50..XLI..IDN199910-200010

main53701-0A040iAL50..(SLI,XLI)..GEN199904-200010

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0A010iAL50199612-199902

main53702-0A020iAL50..GEN199902

main53702-0A030iAL50..IDN200003

53711BAPRON, FRONT FENDER, FRONT RH

main53711-0A010iAL50..ATM..GLI199612-199902

main53711-0A020iAL50..SLI,XLI;AL50..5F..GLI199612-199902

main53711-0A030iAL50199902

53712BAPRON, FRONT FENDER, FRONT LH

main53712-0A010iAL50199612-199902

main53712-0A020iAL50..GEN199902

main53712-0A030iAL50..IDN200003

53717APLATE, FENDER APRON

main53717-0A010iAL50199612

55101PANEL SUB-ASSY, DASH

main55101-0A010iAL50..5F199612-199910

main55101-0A020iAL50..ATM199612-199910

main55101-0A030iAL50..5F..(SLI,XLI)..GEN199910

main55101-0A040iAL50..4FC..(SLI,XLI)199910

main55101-0A050iAL50..5F..IDN199810

main55101-0A060iAL50..4FC..IDN199810

main55101-0A070iAL50..5F..GLI..GEN199910

main55101-0A080iAL50..4FC..GLI..GEN199910

55210INSULATOR ASSY, DASH PANEL

main55210-0A010iAL50..GEN199612

main55210-0A020iAL50..IDN199810

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0A900iAL50199612

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-0A010iAL50199612

9010506082

main90105-06082

9011912245

main90119-12245

9017906007

main90179-06007

9033325001

main90333-25001

9033330008

main90333-30008

9046705060

main90467-05060

9090467018

main90904-67018

9095001864

main90950-01864

29 parts on this diagram · 1 diagram in section
