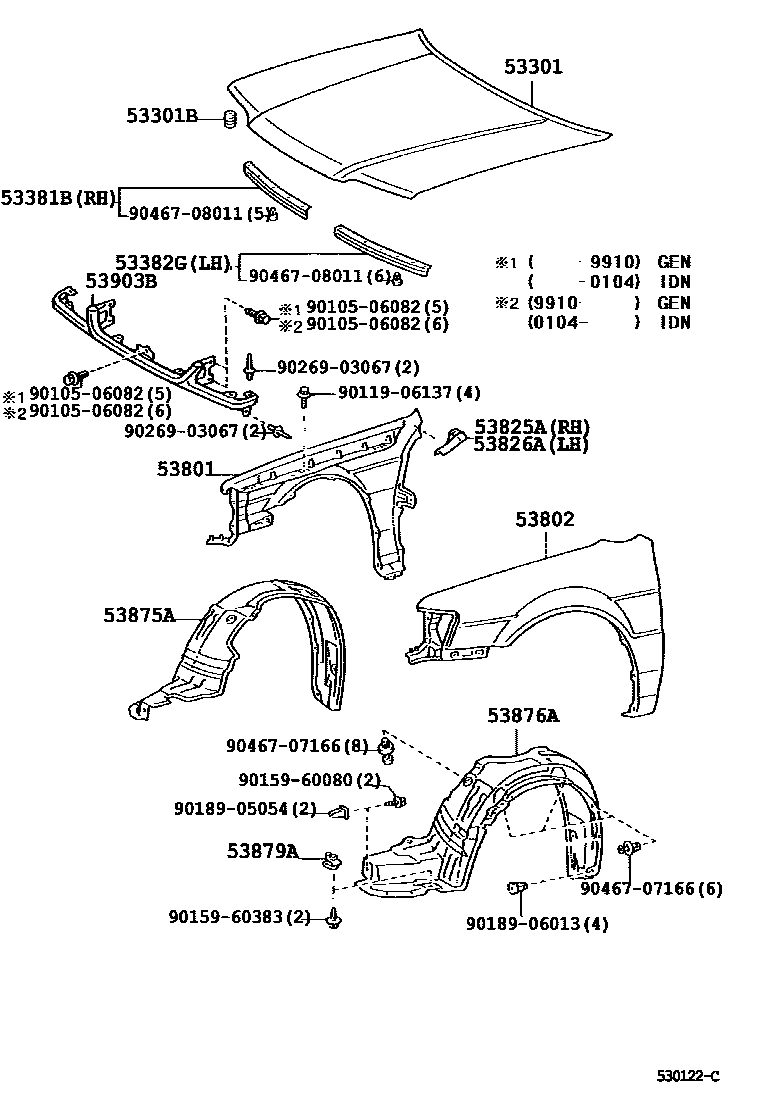

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-0A010iAL50199612

53301BCUSHION, HOOD BUMPER

main90541-15015iAL50199612

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-0A010iAL50199612

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-0A010iAL50199612

53801FENDER SUB-ASSY, FRONT RH

main53811-0A010iAL50199612

53802FENDER SUB-ASSY, FRONT LH

main53812-0A010iAL50199612

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-16030iAL50199612

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-16030iAL50199612

53875ALINER, FRONT FENDER, RH

main53875-0A010iAL50199612-199910

main53875-0A020iAL50..IDN200003-200104

main53875-0A030iAL50..GEN199910-200104

53876ALINER, FRONT FENDER, LH

main53876-0A010iAL50199612-199910

sub53876-0A030

main53876-0A020iAL50..IDN200003-200104

main53876-0A040iAL50199910-200104

53879ARETAINER, FRONT FENDER LINER

main53879-16010iAL50199612

53903BPANEL SUB-ASSY, FRONT END

main53903-0A010iAL50199612-200104

main53903-0A020iAL50..GEN199910-200104

9010506082

main90105-06082

9011906137

main90119-06137

9015960080

main90159-60080

9015960383

main90159-60383

9018905054

main90189-05054

9018906013

main90189-06013

9026903067

main90269-03067

9046707166

main90467-07166

9046708011

main90467-08011

21 parts on this diagram · 1 diagram in section
