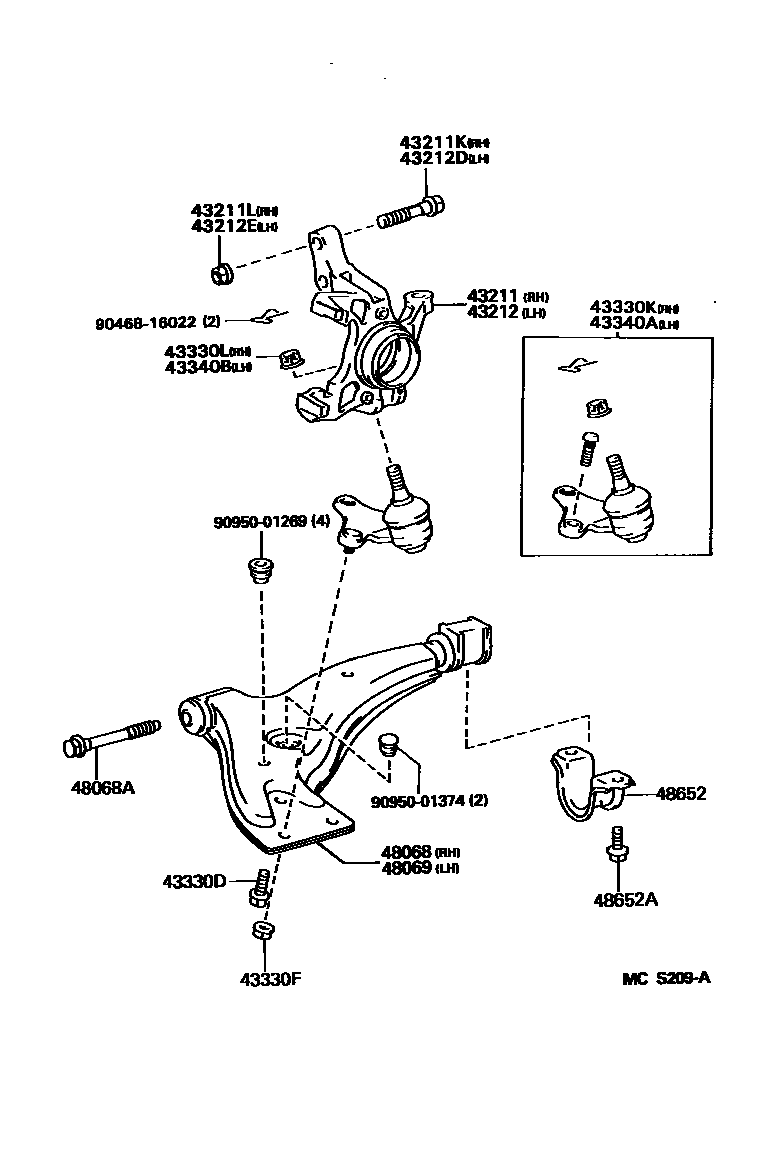

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-0A010iAL50199612-199910

main43211-0A020iAL50..GLI..GEN199910

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15004iAL50199612

OD=13.9

main90105-15005iAL50199612

OD=13.3

main90105-15006iAL50199612

OD=12.4

main90105-15012iAL50199612

OD=15.0

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAL50199612

43212KNUCKLE, STEERING, LH

main43212-0A010iAL50199612-199910

main43212-0A020iAL50..GLI..GEN199910

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15004iAL50199612

OD=13.9

main90105-15005iAL50199612

OD=13.3

main90105-15006iAL50199612

OD=12.4

main90105-15012iAL50199612

OD=15.0

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAL50199612

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10785iAL50199612

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10211iAL50199612

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09080iAL50199612-199810

sub43330-09100

main43330-09100iAL50199810-200306

main43330-19145iAL50200306

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iAL50199612

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09080iAL50199612-199810

sub43330-09100

main43330-09100iAL50199810-200306

main43330-19145iAL50200306

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iAL50199612

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10070iAL50199612-199712

main48068-10110iAL50199712

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iAL50199612

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10050iAL50199612-199712

main48069-10090iAL50199712

48652BRACKET, FRONT LOWER ARM

main48652-10020iAL50199612-199712

main48652-16030iAL50199712

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90901-19018iAL50199612

9046816022

main90468-16022

9095001269

main90950-01269

9095001374

main90950-01374

20 parts on this diagram · 2 diagrams in section
