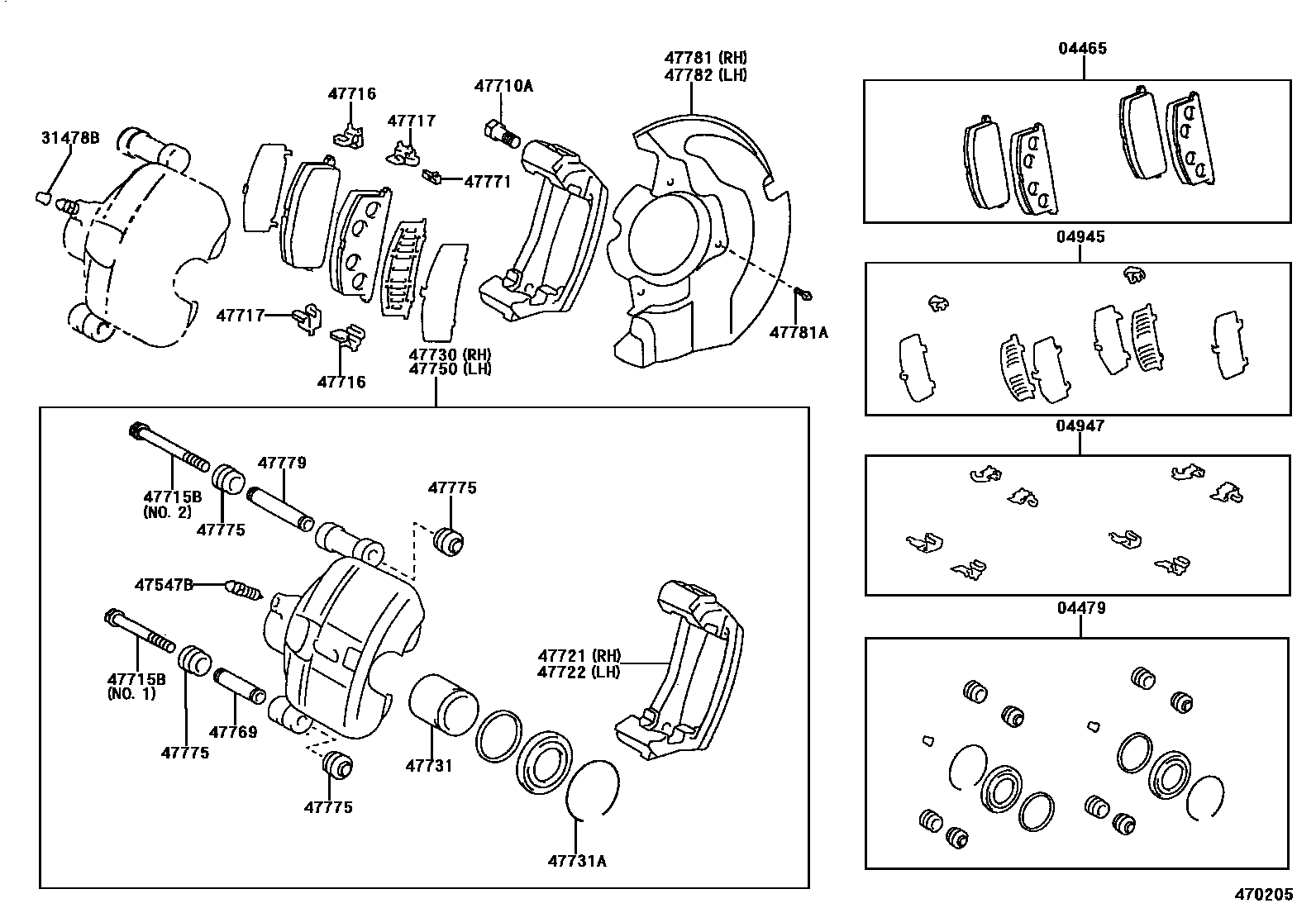

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-16120iAL50199810

main04465-21010iAL50199612-199810

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAL50199810

main04479-16021iAL50199612-199810

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13020iAL50199810

main04945-32060iAL50199612-199810

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iAL50199612

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAL50199612

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAL50199612

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAL50199612

*12-1.25PX25.8-19.5

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003×2iAL50199612

NO.1

main90119-09004×2iAL50199612

NO.2

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iAL50199612

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iAL50199612

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iAL50199810

main47721-16010iAL50199612-199810

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iAL50199810

main47721-16010iAL50199612-199810

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10101iAL50199810

main47730-16081iAL50199612-199810

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iAL50199810

main47731-16020×2iAL50199612-199810

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAL50199612

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10101iAL50199810

main47750-16081iAL50199612-199810

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAL50199612

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAL50199810

main47771-32010×2iAL50199612-199810

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iAL50199612

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAL50199612

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0A010iAL50..GEN199612

main47781-0A020iAL50..IDN199810

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAL50199612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0A010iAL50..GEN199612

main47782-0A020iAL50..IDN199810

23 parts on this diagram · 2 diagrams in section
