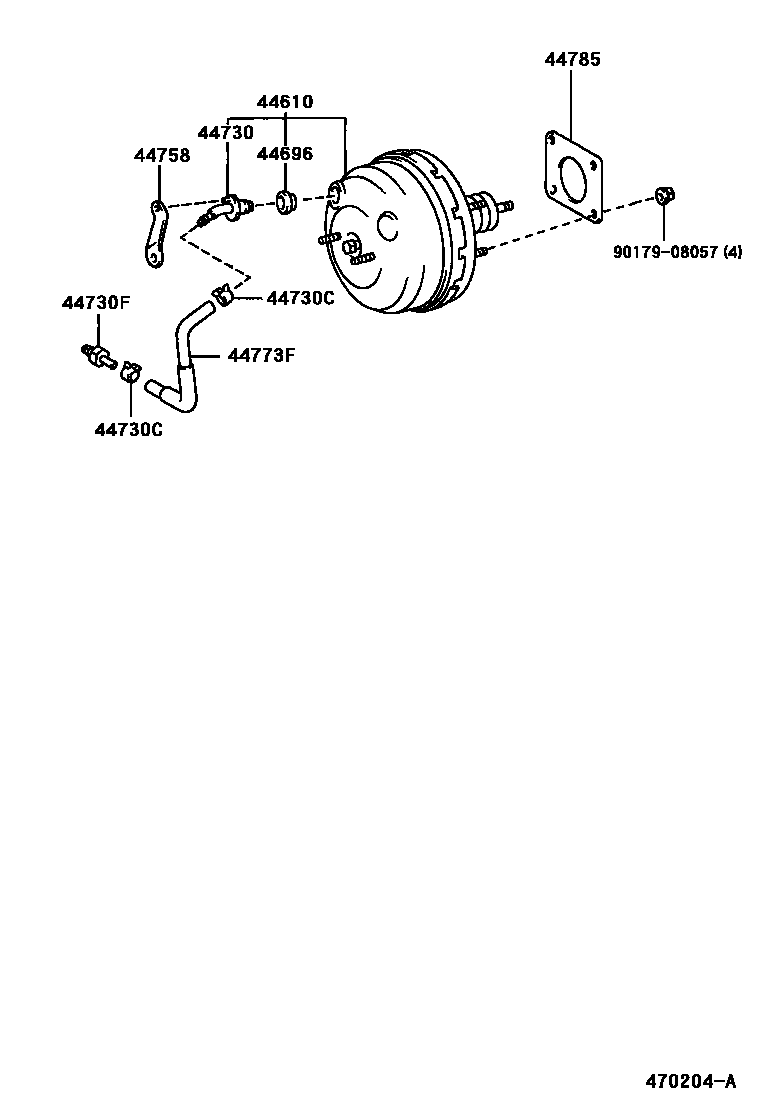

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-0A010iAL50199810

main44610-16520iAL50199612-199810

44696GROMMET, CHECK VALVE

main90080-48050iAL50199810

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30040iAL50199810

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×2iAL50199612-200204

main96134-51500×2iAL50200204

sub96133-41500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAL50199612

44758BRACKET, VACUUM CHECK VALVE

main44758-0A010iAL50199810

main44758-16100iAL50199612-199810

44773FHOSE, UNION TO CHECK VALVE

main44773-16190iAL50199612

44785GASKET, BRAKE BOOSTER

main44785-10020iAL50199612

9017908057

main90179-08057

9 parts on this diagram · 1 diagram in section
