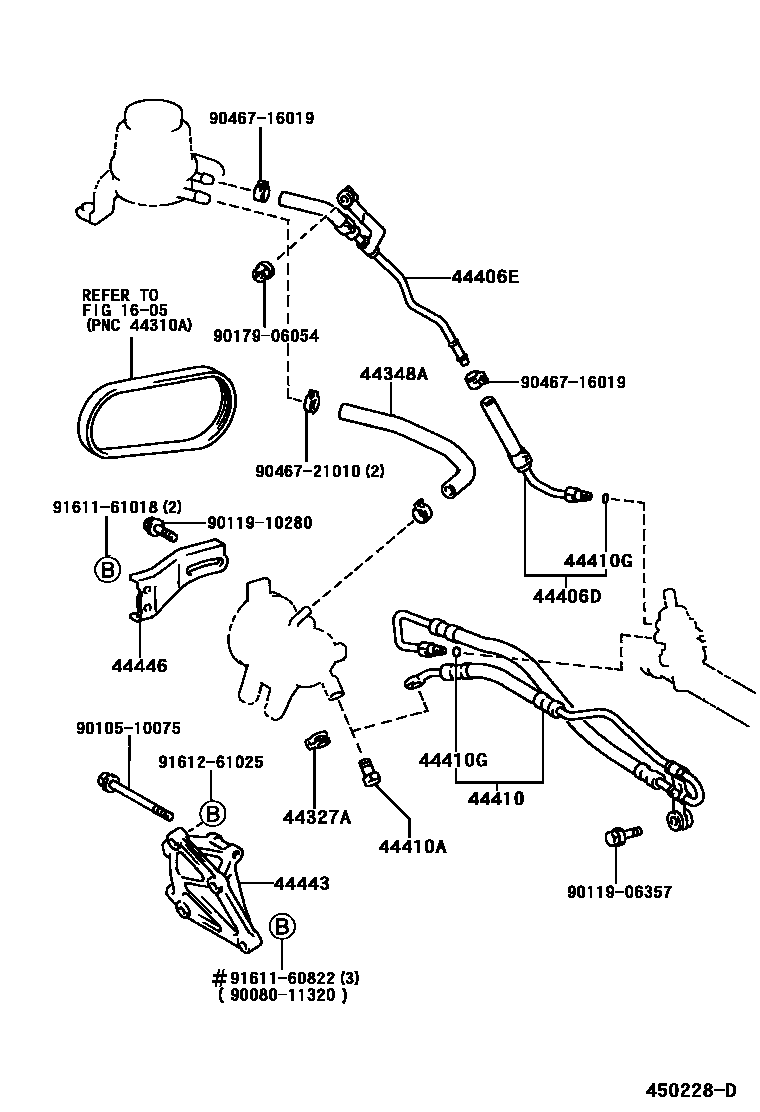

POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAL50..GLI199804-199910

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0A010iAL50..GLI,SLI;AL50..5F..XLI200010

main44348-16170iAL50..GLI199804-199810

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-0A010iAL50..GLI199810-199910

main44406-16010iAL50..3FC..GLI199612-199804

44406ETUBE SUB-ASSY, RETURN, NO.2

main44406-0A020iAL50..GLI199810-199910

main44406-16020iAL50..3FC..GLI199612-199804

44410TUBE ASSY, PRESSURE FEED

main44410-0A010iAL50..GLI199810-199910

main44410-16320iAL50..GLI199804-199810

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAL50..3FC..GLI199612-199804

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×3iAL50..3FC..GLI199612-199804

44443BRACKET, PUMP

main44443-12050iAL50..3FC..GLI199612-199804

44446STRUT, ADJUSTING

main44446-12060iAL50..3FC..GLI199612-199804

9008011320

main90080-11320

9010510075

main90105-10075

9011906357

main90119-06357

9011910280

main90119-10280

9017906054

main90179-06054

9046716019

main90467-16019

9046721010

main90467-21010

9161160822

main91611-60822

9161161018

main91611-61018

9161261025

main91612-61025

20 parts on this diagram · 1 diagram in section
