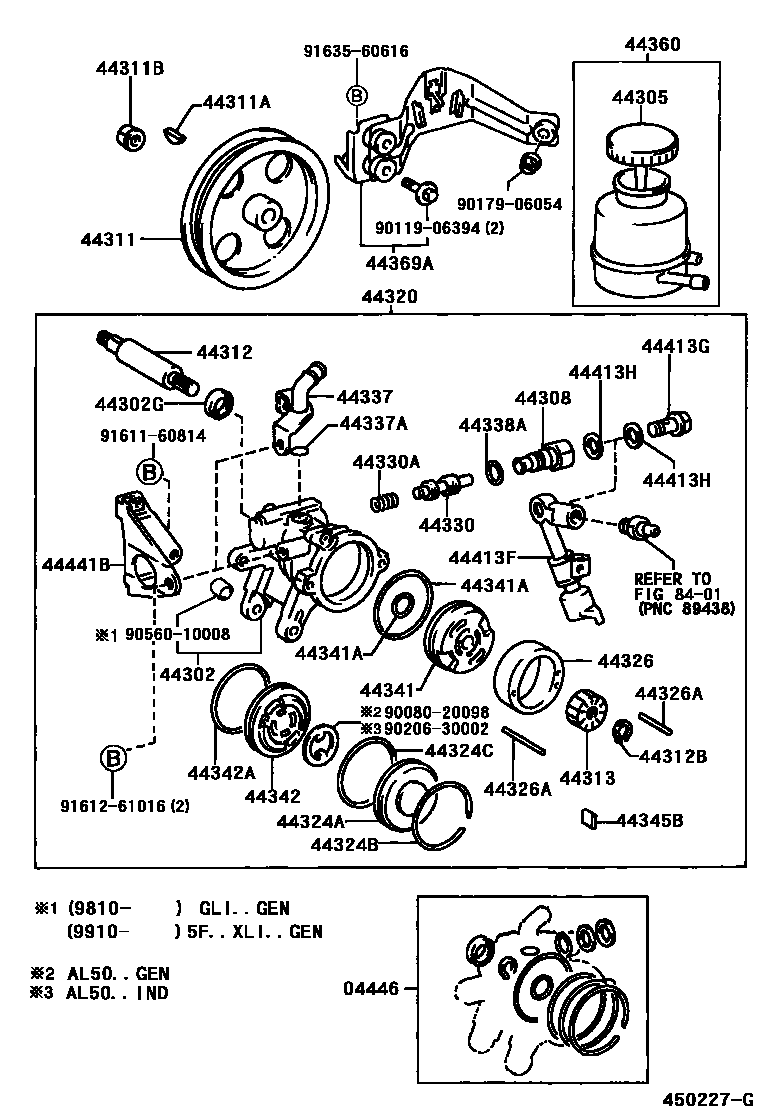

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-0A010iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main04446-10031iAL50..GLI;AL50..5F..XLI¥2,060199612-200205

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-0A010iAL50..GLI199810-200010

main44302-12100iAL50..IDN;AL50..3FC..GLI¥24,400199612

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90080-31095iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main90311-18007iAL50..3FC..GLI¥240199612-200205

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iAL50..3FC..GLI¥1,840199612-200010

sub44305-22050¥1,260

44308UNION SUB-ASSY, PRESSURE PORT

main44308-20050iAL50..3FC..GLI¥4,760199612-200010

44311PULLEY, VANE PUMP

main44311-12040iAL50..GLI;AL50..5F..XLI¥7,400199612-200010

44311AKEY, VANE PUMP PULLEY

main90280-05008iAL50..3FC..GLI¥220199612-200010

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN¥160199910-200010

main90179-12022iAL50..IDN;AL50..3FC..GLI¥370199612

44312SHAFT, VANE PUMP

main44312-12030iAL50..GLI;AL50..5F..XLI¥2,950199612-200010

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90080-52137iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main90520-10003iAL50..IDN¥140199612-200205

44313ROTOR, VANE PUMP

main44313-22040iAL50..GLI;AL50..5F..XLI¥7,700199612-200010

NO MARK

main44313-22050iAL50..GLI;AL50..5F..XLI¥7,700199612-200010

MARK 1

main44313-22060iAL50..GLI;AL50..5F..XLI¥7,700199612-200010

MARK 2

main44313-22070iAL50..3FC..GLI¥7,700199612-200010

MARK 3

main44313-22080iAL50..3FC..GLI¥7,700199612-200010

MARK 4

44320PUMP ASSY, VANE

main44320-0A010iAL50..GLI..GEN;AL50..5F..XLI..GEN199810-200010

main44320-16300iAL50..IDN;AL50..3FC..GLI¥81,600199612

44324AHOUSING, PUMP, REAR

main44324-12031iAL50..GLI;AL50..5F..XLI¥6,100199612-200010

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAL50..3FC..GLI¥220199612-200010

44324CRING, O(FOR PUMP HOUSING REAR)

main90080-30112iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main90301-52001iAL50..GLI,SLI;AL50..5F..XLI¥300199612-200205

44326RING, CAM(FOR VANE PUMP)

main44325-12110iAL50..3FC..GLI¥8,800199612-200010

NO MARK

main44325-12120iAL50..GLI;AL50..5F..XLI¥8,800199612-200010

MARK 1

main44325-12130iAL50..3FC..GLI¥8,800199612-200010

MARK 2

main44325-12140iAL50..3FC..GLI¥8,800199612-200010

MARK 3

main44325-12150iAL50..GLI;AL50..5F..XLI¥8,800199612-200010

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAL50..3FC..GLI¥150199612-200010

L=28,OD=4.0

main90250-04049iAL50..3FC..GLI¥190199612-200010

L=43,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-0A010iAL50..GLI..GEN;AL50..5F..XLI..GEN199810-200010

MARK A

main44330-0A020iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN199810-200010

MARK B

main44330-0A030iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN199810-200010

MARK C

main44330-0A040iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN199810-200010

MARK D

main44330-0A050iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN199810-200010

MARK E

main44330-0A060iAL50..GLI199810-200010

MARK F

main44330-16071iAL50..IDN;AL50..3FC..GLI¥8,500199612

MARK A

main44330-16081iAL50..IDN;AL50..3FC..GLI¥8,500199612

MARK B

main44330-16091iAL50..IDN;AL50..3FC..GLI¥8,500199612

MARK C

main44330-16101iAL50..IDN;AL50..3FC..GLI¥8,500199612

MARK D

main44330-16111iAL50..IDN;AL50..3FC..GLI¥8,500199612

MARK E

main44330-16121iAL50..IDN;AL50..3FC..GLI¥8,500199612

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50329iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main90501-12103iAL50..3FC..GLI¥160199612-200205

44337UNION, POWER STEERING SUCTION PORT

main44337-16090iAL50..3FC..GLI199612-200010

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main90301-11016iAL50..GLI,SLI;AL50..5F..XLI¥140199612-200205

44338ARING, O(FOR PRESSURE PORT UNION)

main90080-30074iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205-200212

ID=19.2,OD=22.3

main90301-19013iAL50..GLI;AL50..5F..XLI¥260199612-200212

ID=19.2,OD=22.3

sub90301-19018¥240

main90301-19018iAL50¥240200212

ID=19.2,OD=22.3

44341PLATE, VANE PUMP SIDE, FRONT

main44341-0A010iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main44341-32010iAL50..3FC..GLI¥2,910199612-200205

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90080-30109iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205-200212

INNER

main90080-30111iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205-200212

OUTER

main90301-25001iAL50..GLI;AL50..5F..XLI¥300199612-200212

INNER

sub90301-25008¥300

main90301-25008iAL50¥300200212

INNER

main90301-52001iAL50..GLI,SLI;AL50..5F..XLI¥300199612-200205

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-0A010iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main44342-32010iAL50..GLI,SLI;AL50..5F..XLI¥4,150199612-200205

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90080-30111iAL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN200205

main90301-52001iAL50..IDN¥300199612-200205

44345BPLATE, VANE PUMP

main44345-12010iAL50..GLI;AL50..5F..XLI¥660199612-200010

L=14.997

main44345-12020iAL50..GLI,SLI;AL50..5F..XLI¥660199612-200010

L=14.995

main44345-12030iAL50..GLI;AL50..5F..XLI¥660199612-200010

L=14.993

main44345-12040iAL50..GLI;AL50..5F..XLI¥660199612-200010

L=14.991

main44345-12050iAL50..GLI;AL50..5F..XLI¥660199612-200010

L=14.989

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-16050iAL50..3FC..GLI¥10,300199612-200010

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-16020iAL50..3FC..GLI¥3,440199612-200010

44413FTUBE, PRESSURE FEED, NO.2

main44413-16080iAL50..3FC..GLI¥1,690199612-200010

44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

main90401-16008iAL50..3FC..GLI¥610199612-200010

44413HGASKET(FOR PRESSURE FEED TUBE NO.2)

main90430-16242iAL50..3FC..GLI¥190199612-200010

44441BBRACKET, PUMP, FRONT

main44441-12040iAL50..3FC..GLI¥1,480199612-200010

8401

9008020098

main90080-20098

9011906394

main90119-06394¥160

9017906054

main90179-06054¥100

9020630002

main90206-30002¥300

9056010008

main90560-10008¥590

9161160814

main91611-60814¥100

9161261016

main91612-61016¥140

9163560616

main91635-60616¥120

42 parts on this diagram · 1 diagram in section
