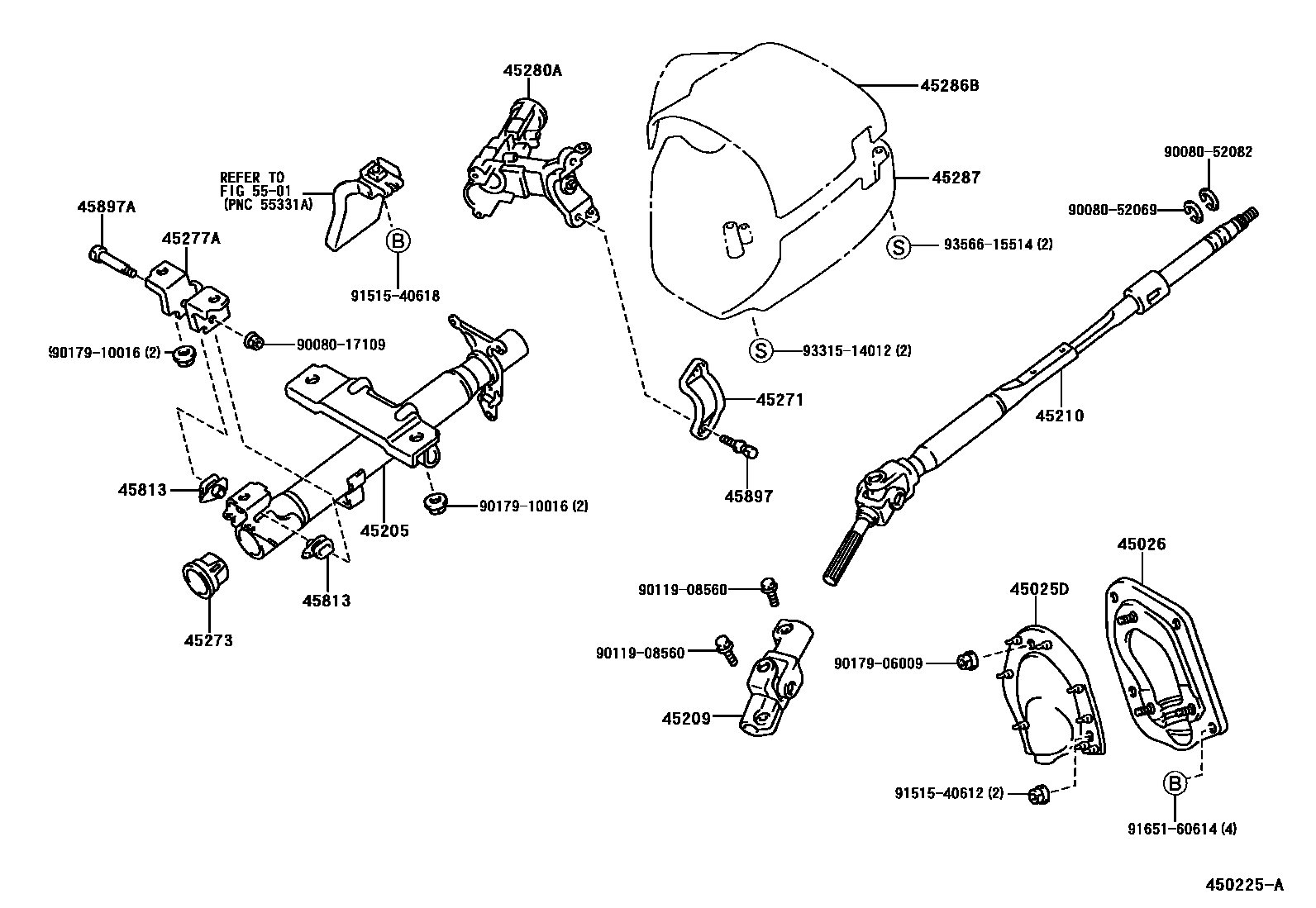

STEERING COLUMN & SHAFT

0001 1W(POWER STEERING) 0003 1 0004 1W(POWER STEERING) 0006 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10080iAL50..SLI,XLI199612-200010

main45025-16130iAL50..ATM..GLI199612-199910

main45025-16130iAL50..GLI;AL50..5F..XLI..GEN199910

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10030iAL50..SLI,XLI199612-200010

main45026-16060iAL50..GLI;AL50..5F..XLI..GEN199910

W(POWER STEERING)

main45026-16060iAL50..SLI199612-199910

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-0A010iAL50199612-199910

main45205-0A020iAL50199910

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12060iAL50..SLI,XLI;AL50..5F..GLI199612-200010

main45209-16060iAL50..ATM..GLI199612-200010

main45209-16060iAL50..GLI..GEN;AL50..5F..XLI..GEN199910

W(POWER STEERING)

45210SHAFT ASSY, STEERING MAIN

main45210-0A010iAL50..SLI,XLI;AL50..5F..GLI199612-199910

main45210-0A020iAL50..ATM..GLI199612-199910

main45210-0A030iAL50..XLI..GEN199910-200010

main45210-0A040iAL50..GLI..GEN;AL50..5F..XLI..GEN199910

W(POWER STEERING)

main45210-0A040iAL50..IDN200003-200010

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iAL50199612-199707

main45271-16040iAL50199707-199910

45273BUSH, STEERING MAIN SHAFT

main45273-0A010iAL50199612

45277ASUPPORT, TILT STEERING

main45277-0A010iAL50199612

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12321iAL50..(GLI,XLI)..GEN199910

SINGAPORE SPEC

sub45280-12341

main45280-16110iAL50199612-199910

sub45280-16090

main45280-28230iAL50..GLI199910

45286BCOVER, STEERING COLUMN, UPR

main45286-0A010-B0iAL50199612-199910

SHADOW GRAY,TRIM1#

main45286-0A030-B0iAL50..SLI,XLI;AL50..GLI..IDN199910-200203

BLUISH GRAY,TRIM1#

main45286-0A030-B0iAL50..SLI,XLI;AL50..GLI..IDN200203

BLUISH GRAY,TRIM0#,1#

45287COVER, STEERING COLUMN, LWR

main45287-0A010-B0iAL50199612-199910

SHADOW GRAY,TRIM1#

main45287-0A030-B0iAL50199910-200203

BLUISH GRAY,TRIM1#

main45287-0A030-B0iAL50..GLI..GEN200203

BLUISH GRAY,TRIM0#,1#

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-0A010iAL50199612

45897BOLT, STEERING LOCK SET

main45897-12020iAL50199612

45897ABOLT, TILT STEERING PAWL SET

main45897-0A010iAL50199612

5501

9008017109

main90080-17109

9008052069

main90080-52069

9008052082

main90080-52082

9011908560

main90119-08560

9017906009

main90179-06009

9017910016

main90179-10016

9151540612

main91515-40612

9151540618

main91515-40618

9165160614

main91651-60614

9331514012

main93315-14012

9356615514

main93566-15514

26 parts on this diagram · 4 diagrams in section
