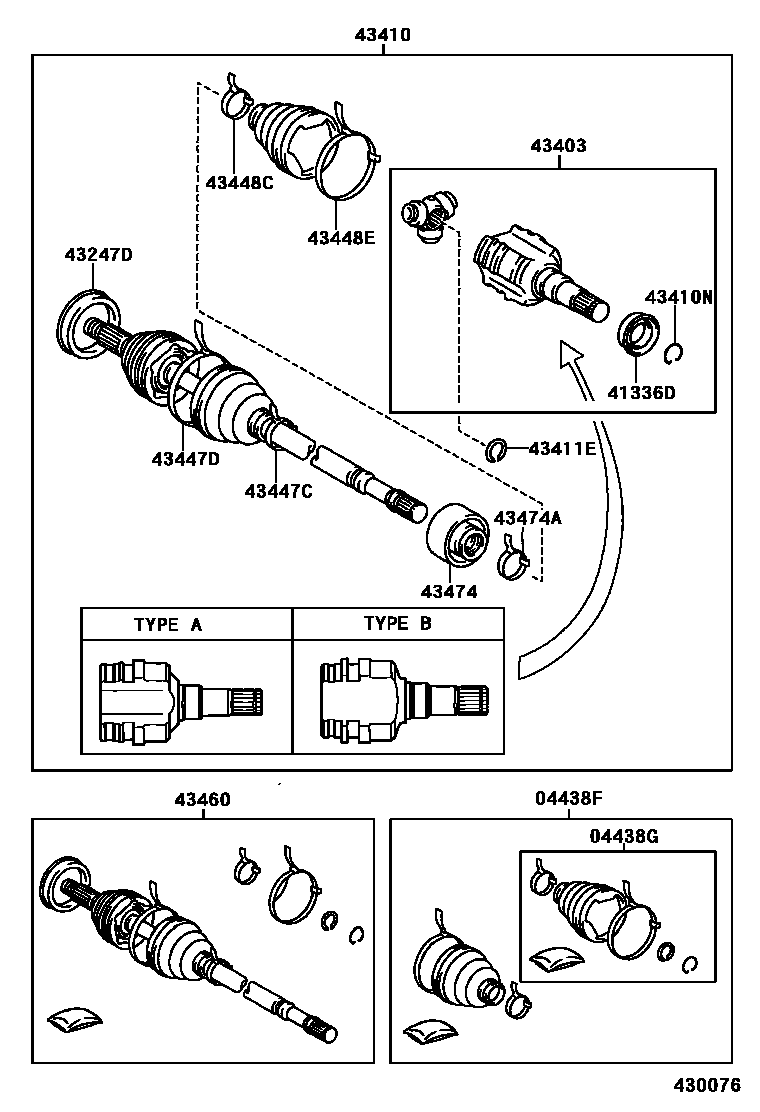

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
TYPE B:REFER TO ILLUSTRATION
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
TYPE B:REFER TO ILLUSTRATION
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43403JOINT SET, FRONT AXLE INBOARD, RH
TYPE B:REFER TO ILLUSTRATION
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
TYPE B:REFER TO ILLUSTRATION
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
ID=32.5,TYPE A:REFER TO ILLUSTRATION
ID=32.7
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
ID=88.0,TYPE A:REFER TO ILLUSTRATION
ID=88.2
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B:REFER TO ILLUSTRATION
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
43474DAMPER, DRIVE SHAFT
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
15 parts on this diagram · 2 diagrams in section
