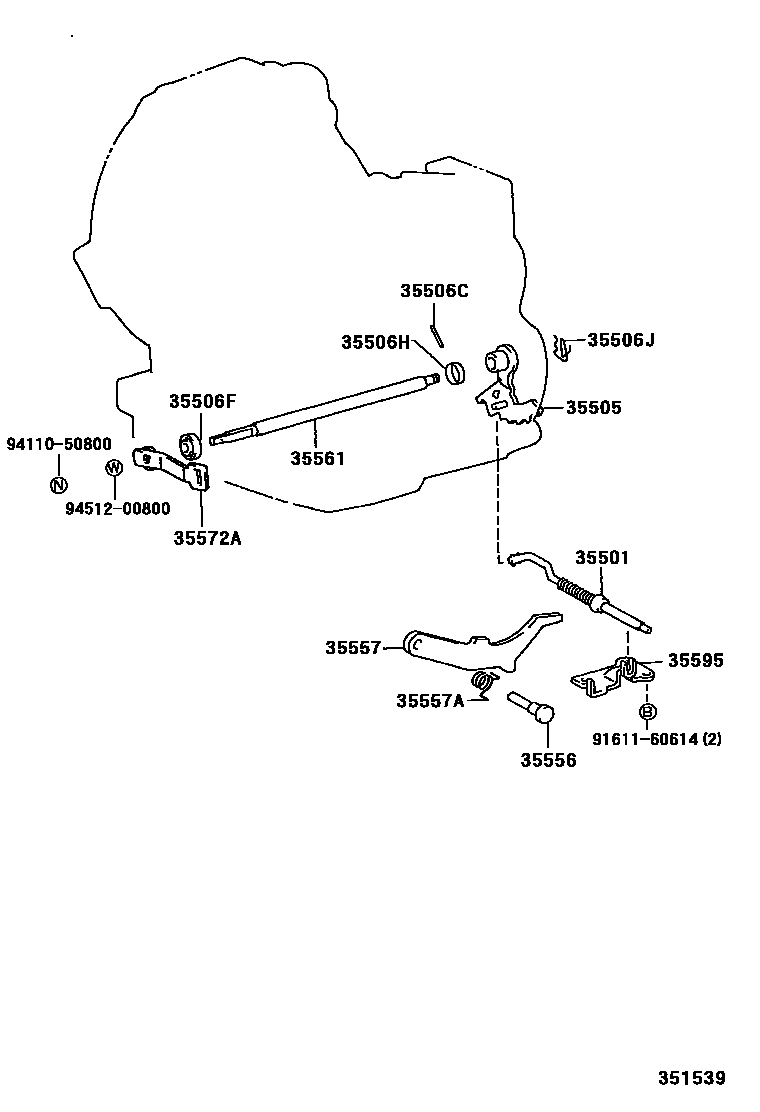

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A131L 0002 1A240L 0003 1A131L,A240L

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAL50..4FC199810-200204

main35501-12030iAL50..4FC200204-200307

main35501-32030iAL50..3FC199612-199810

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12040iAL50..4FC199810-200204

main35505-12060iAL50..4FC200204-200307

main35505-32040iAL50..3FC199612-199810

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iAL50..ATM199612-200307

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAL50..ATM199612-200307

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iAL50..ATM199612-200307

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iAL50..3FC199612-199810

main90524-11001iAL50..4FC199810-200307

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAL50..4FC199810-200307

main35556-32010iAL50..3FC199612-199810

35557PAWL, PARKING LOCK

main35557-12020iAL50..4FC199810-200204

main35557-12030iAL50..4FC200204-200307

main35557-32020iAL50..3FC199612-199810

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAL50..4FC199810-200204

main90508-26047iAL50..3FC199612-199810

main90949-03060iAL50..4FC200204-200307

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iAL50..4FC199810-200307

main35561-32010iAL50..3FC199612-199810

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12110iAL50..3FC199612-199810

main35572-16080iAL50..4FC199810-200307

35595BRACKET, PARKING LOCK PAWL

main35595-32010iAL50..3FC199612-199810

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
