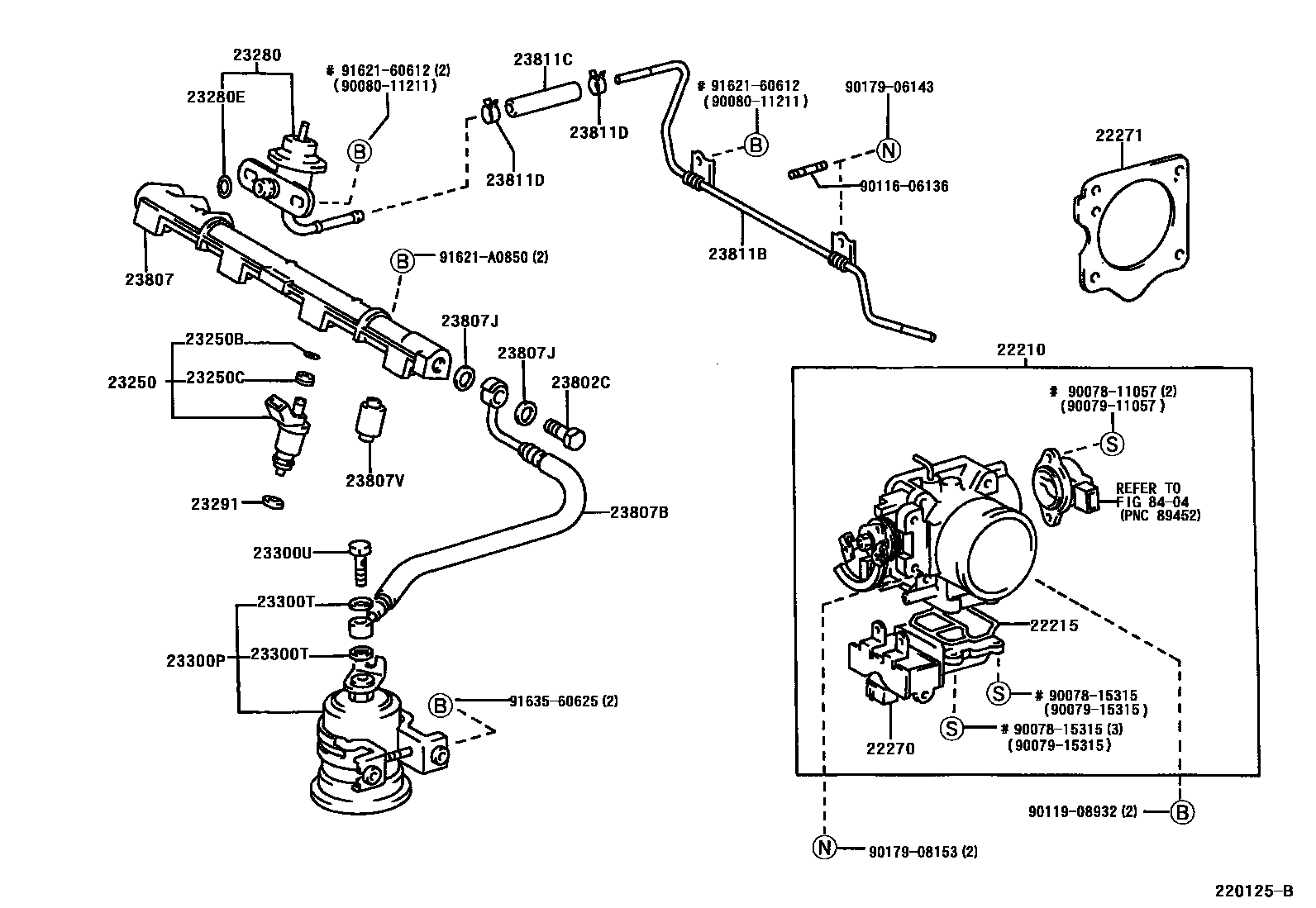

FUEL INJECTION SYSTEM

0001 1 0002 1

22210BODY ASSY, THROTTLE

main22210-02220i5AFE..AL50..5F..IDN200003-200307

main22210-02230i5AFE..AL50..4FC..IDN200003-200307

main22210-02240i5AFE..AL50..GEN199810-200212

main22210-15100i5AFE..AL50..5F199612-199810

main22210-15110i5AFE..AL50..3FC199612-199810

22215GASKET, THROTTLE BODY COVER

main22215-0D080i5AFE..AL50200103-200307

(L)

main22215-74400i5AFE..AL50199612-200103

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-02020i5AFE..AL50..5F..IDN200003-200307

main22270-02030i5AFE..AL50..4FC..IDN200003-200307

main22270-06010i5AFE..AL50..GEN200007-200212

(L)

main22270-13010i5AFE..AL50..GEN199810-200007

main22270-15020i5AFE..AL50..5F199612-199810

main22270-15030i5AFE..AL50..3FC199612-199810

22271GASKET, THROTTLE BODY

main22271-02040i5AFE..AL50199612-200307

(L)

main22271-15020i5AFE..AL50199612-200307

(J)

23250INJECTOR ASSY, FUEL

main23209-15040×4i5AFE..AL50199612-200307

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i5AFE..AL50199612-199812

main90301-07024×4i5AFE..AL50199812-200307

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i5AFE..AL50199612-200307

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15020i5AFE..AL50199612-200307

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i5AFE..AL50199612-199812

main90301-07024i5AFE..AL50199812-200307

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i5AFE..AL50199612-200307

23300PFILTER, FUEL(FOR EFI)

main23300-19505i5AFE..AL50199612-199810

main23300-19545i5AFE..AL50199810

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i5AFE..AL50199612

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i5AFE..AL50199612

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12097i5AFE..AL50199612-200307

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-15050i5AFE..AL50199612-200307

sub23814-15051

23807BHOSE, FUEL DELIVERY PIPE

main23271-15280i5AFE..AL50199612-200307

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026×2i5AFE..AL50199612-200307

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×2i5AFE..AL50199612-200307

23811BPIPE, FUEL, NO.1

main23811-15030i5AFE..AL50199612-200307

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main95334-06006i5AFE..AL50199612-200307

L=60

23811DCLIP, HOSE(FOR FUEL HOSE)

main96135-41100×2i5AFE..AL50199612-200307

sub96135-51100

8404

9007811057

main90078-11057

9007815315

main90078-15315

9007911057

main90079-11057

9007915315

main90079-15315

9008011211

main90080-11211

9011606136

main90116-06136

9011908932

main90119-08932

9017906143

main90179-06143

9017908153

main90179-08153

9162160612

main91621-60612

91621A0850

main91621-A0850

9163560625

main91635-60625

34 parts on this diagram · 2 diagrams in section
