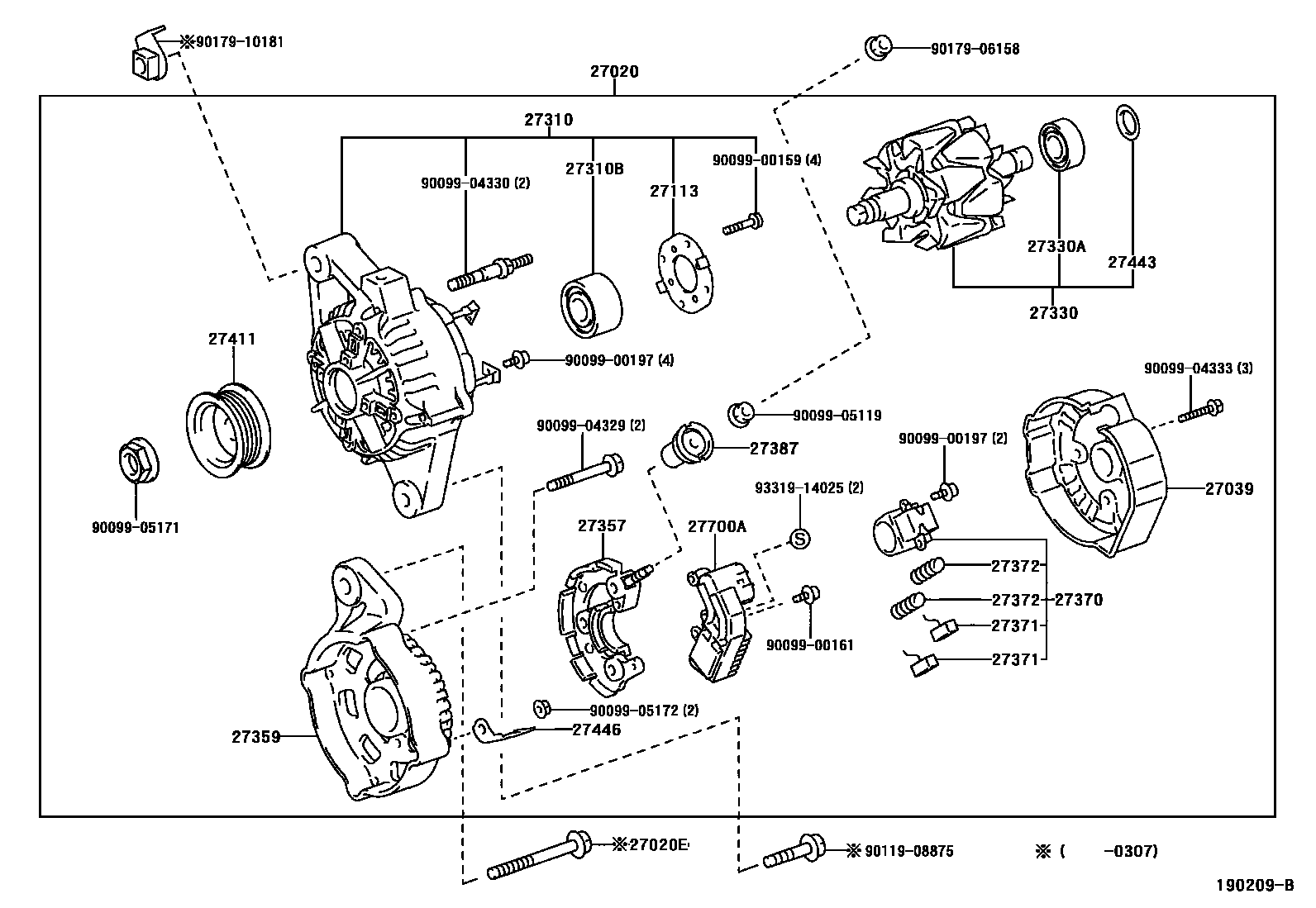

ALTERNATOR

0001 112V 60A 0002 112V 70A

27020ALTERNATOR ASSY

main27060-02080i5AFE..AL50..5F..GEN199612

12V 60A

main27060-02090i5AFE..AL50..ATM..GEN199612

12V 70A

main27060-02120i5AFE..AL50..5F..IDN199810

12V 60A

main27060-02130i5AFE..AL50..4FC..IDN199810

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10336i5AFE..AL50199612-200307

27039COVER, ALTERNATOR REAR END

main27039-11190i5AFE..AL50..5F..GEN199612

main27039-16380i5AFE..AL50..ATM199612

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-70200×2i5AFE..AL50..4FC..IDN199810

main27312-72120i5AFE..AL50..5F..GEN199612

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-02080i5AFE..AL50..5F..GEN199612

main27310-02090i5AFE..AL50..ATM..GEN199612

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10005×2i5AFE..AL50..4FC..IDN199810

sub90099-10178

main90068-10007i5AFE..AL50..5F..GEN199612

sub90099-10198

27330ROTOR ASSY, ALTERNATOR

main27330-02080i5AFE..AL50..5F..GEN199612

main27330-02090i5AFE..AL50..ATM199612

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i5AFE..AL50..ATM199612

main90068-10006i5AFE..AL50..5F..GEN199612

sub90099-10154

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11170i5AFE..AL50..5F..GEN199612

main27357-16380i5AFE..AL50..ATM199612

27359FRAME, ALTERNATOR RECTIFIER END

main27359-02080i5AFE..AL50..5F..GEN199612

main27359-02090i5AFE..AL50..ATM..GEN199612

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i5AFE..AL50..ATM;5AFE..AL50..5F..GEN199612

27371BRUSH, ALTERNATOR

main27371-70300×2i5AFE..AL50..ATM;5AFE..AL50..5F..GEN199612

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i5AFE..AL50..ATM;5AFE..AL50..5F..GEN199612

sub27372-87501

27387INSULATOR, TERMINAL

main27387-10080i5AFE..AL50..5F..GEN199612

main27387-70170i5AFE..AL50..ATM199612-199910

main27387-70171i5AFE..AL50..4FC199910

27411PULLEY, ALTERNATOR

main27411-16180i5AFE..AL50..ATM199612

main27411-72120i5AFE..AL50..5F..GEN199612

27443COVER, ALTERNATOR BEARING

main27443-63020i5AFE..AL50..ATM;5AFE..AL50..5F..GEN199612

27446CLIP, ALTERNATOR CORD

main27446-02090i5AFE..AL50..GEN199612

main27446-15170i5AFE..AL50..4FC..IDN199810

27700AREGULATOR ASSY, GENERATOR

main27700-15080i5AFE..AL50..5F199612

main27700-74040i5AFE..AL50..ATM199612

9009900159

main90099-00159

9009900161

main90099-00161

9009900197

main90099-00197

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

9331914025

main93319-14025

31 parts on this diagram · 2 diagrams in section
