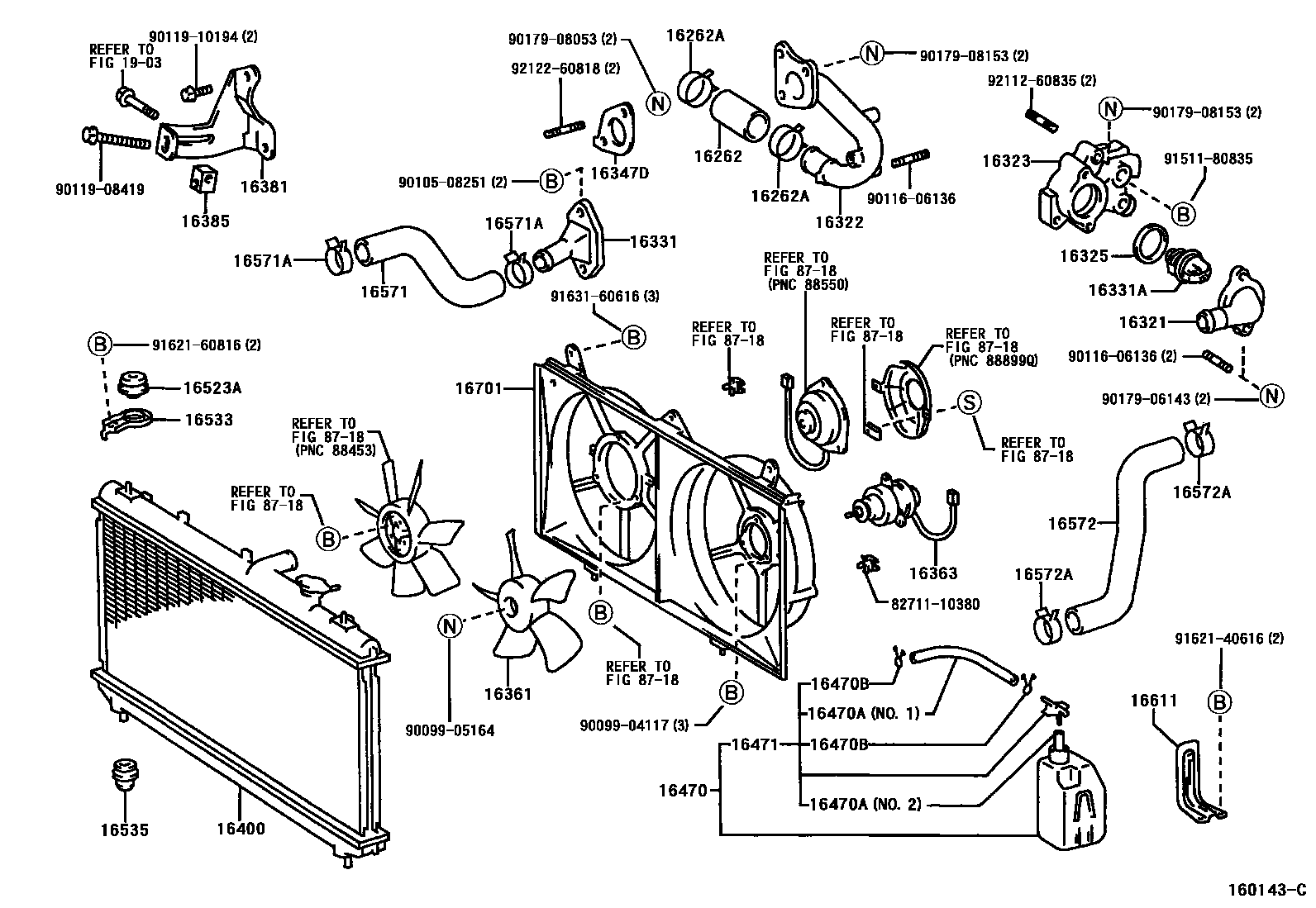

RADIATOR & WATER OUTLET
16262HOSE, WATER INLET
(L)
(J)
16262ACLIP(FOR WATER INLET HOSE)
16321INLET, WATER
16322PIPE, WATER INLET
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
(L)
(J)
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 76.5-90
16347DGASKET, WATER BY-PASS
(L)
(J)
16381BAR, FAN BELT ADJUSTING
(L)
(J)
16385SLIDER, FAN BELT ADJUSTING
sub16385-15030
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=210),NO.1,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16611BRACKET, RADIATOR RESERVE TANK
1903
8718
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9009904117
main90099-04117
9009905164
main90099-05164
9010508251
main90105-08251
9011606136
main90116-06136
9011908419
main90119-08419
9011910194
main90119-10194
9017906143
main90179-06143
9017908053
main90179-08053
9017908153
main90179-08153
9151180835
main91511-80835
9162140616
main91621-40616
9162160816
main91621-60816
9163160616
main91631-60616
9211260835
main92112-60835
9212260818
main92122-60818
45 parts on this diagram · 2 diagrams in section
