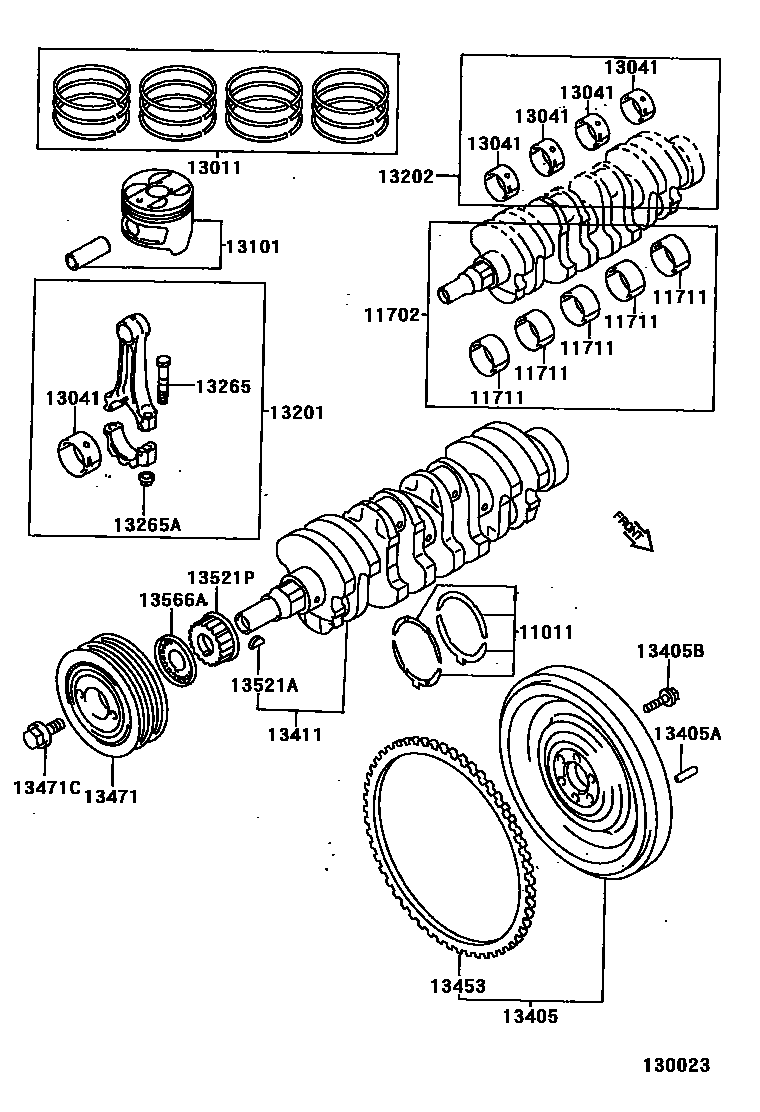

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4:REFER TO REPAIR MANUAL,MARK 4
MARK 5:REFER TO REPAIR MANUAL,MARK 5
13011RING SET, PISTON
STD
STD
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1,(L)
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2,(L)
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3,(L)
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1,(J)
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2,(J)
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3,(J)
O/S 0.50
13201ROD SUB-ASSY, CONNECTING
sub13201-19176
13202BEARING SET, CONNECTING ROD
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
(L)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
sub13411-02910
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
(L)
(J)
13566AGUIDE, TIMING BELT
20 parts on this diagram · 1 diagram in section
