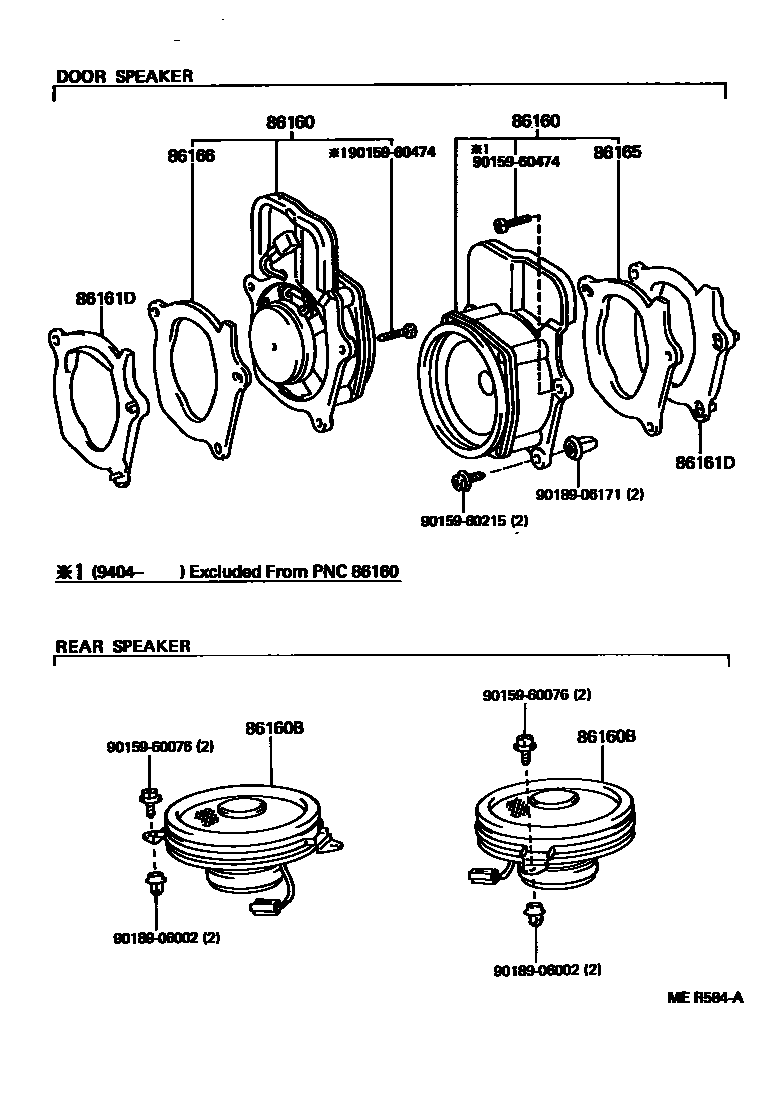

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-16470iEL44199104-199404

RH

sub90159-60474

main86160-16471iEL44199404-199508

RH

main86160-16480iEL44199104-199404

LH

sub90159-60474

main86160-16481iEL44199404-199508

LH

86160BSPEAKER ASSY, REAR

main86160-16270×2iEL44199104-199508

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-16010iEL44199104-199508

RH

main86161-16020iEL44199104-199508

LH

86165SEAL, SPEAKER, NO.1

main86165-16020iEL44199104-199508

86166SEAL, SPEAKER, NO.2

main86166-16010iEL44199104-199508

9015960076

main90159-60076

9015960215

main90159-60215

9015960474

main90159-60474

9018906002

main90189-06002

9018906171

main90189-06171

10 parts on this diagram · 1 diagram in section
