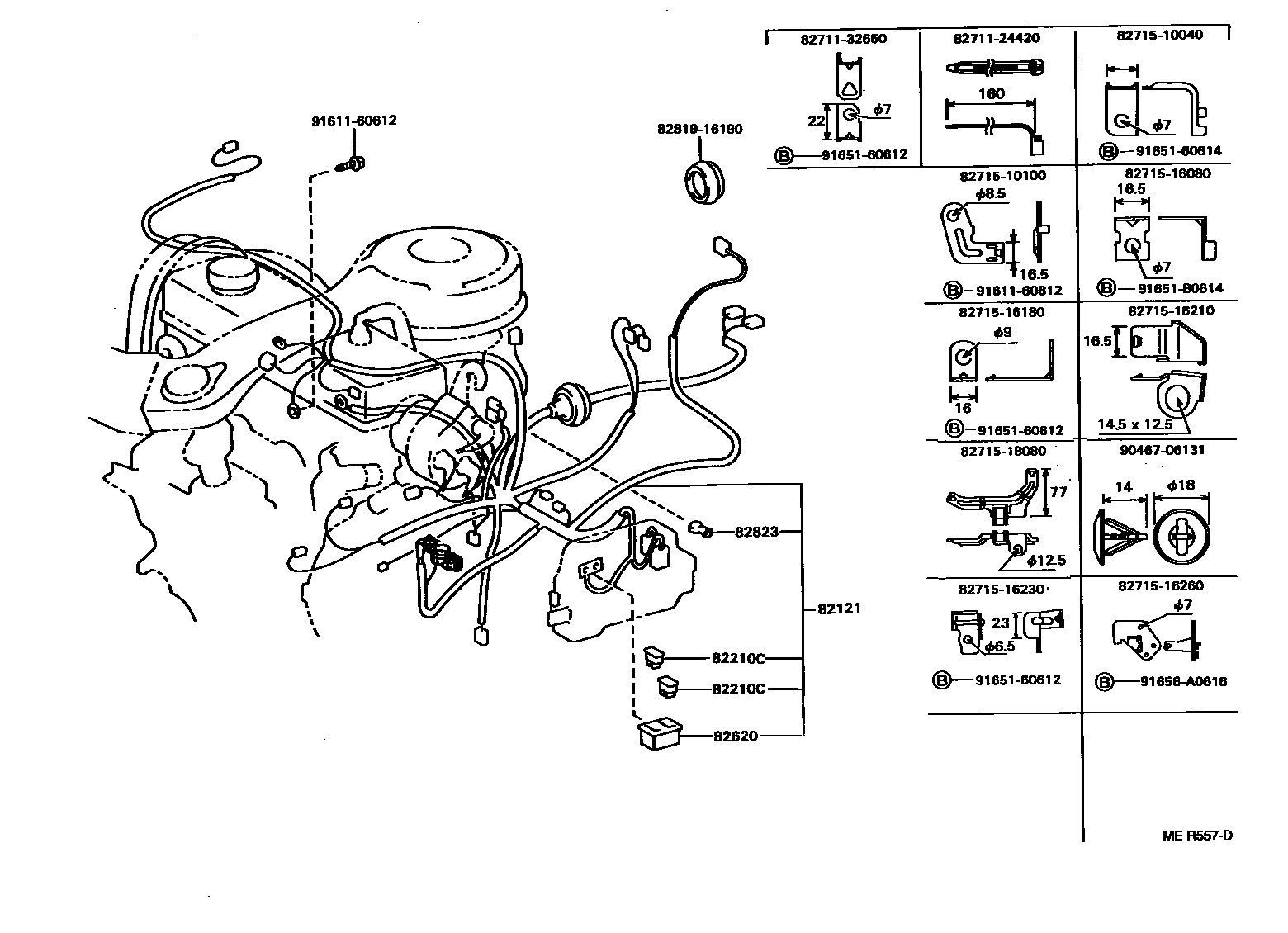

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82121WIRE, ENGINE

main82121-16750iEL44..MTM199208-199409

main82121-16751iEL44..MTM199409-199508

main82121-16760iEL44..ATM199208-199409

main82121-16761iEL44..ATM199409-199508

main82121-1G040iEL44..MTM199104-199208

main82121-1G051iEL44..ATM199104-199208

82210CFUSIBLE LINK

main90982-08228iEL44199104-199508

50A,TERM.:MALE,RED

main90982-08246iEL44199104-199508

100A,TERM.:MALE,BLUE

82620BLOCK ASSY, FUSIBLE LINK

main82620-30030iEL44199104-199508

82823CAP, TERMINAL, NO.1

main82823-22060iEL44199208-199508

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

8271132650WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32650

8271510040BRACKET,WIRING HARNESS CLAMP

main82715-10040

8271510100BRACKET,WIRING HARNESS CLAMP

main82715-10100

8271516080BRACKET,WIRING HARNESS CLAMP

main82715-16080

8271516180BRACKET,WIRING HARNESS CLAMP

main82715-16180

8271516210BRACKET,WIRING HARNESS CLAMP

main82715-16210

8271516230BRACKET,WIRING HARNESS CLAMP

main82715-16230

8271516260BRACKET,WIRING HARNESS CLAMP

main82715-16260

8271518080BRACKET,WIRING HARNESS CLAMP

main82715-18080

8281916190GROMMET, WIRING HARNESS

main82819-16190

9046706131

main90467-06131

9161160612

main91611-60612

9161160812

main91611-60812

9165160612

main91651-60612

9165160614

main91651-60614

91651B0614

main91651-B0614

91656A0616

main91656-A0616

22 parts on this diagram · 6 diagrams in section
