BATTERY CARRIER

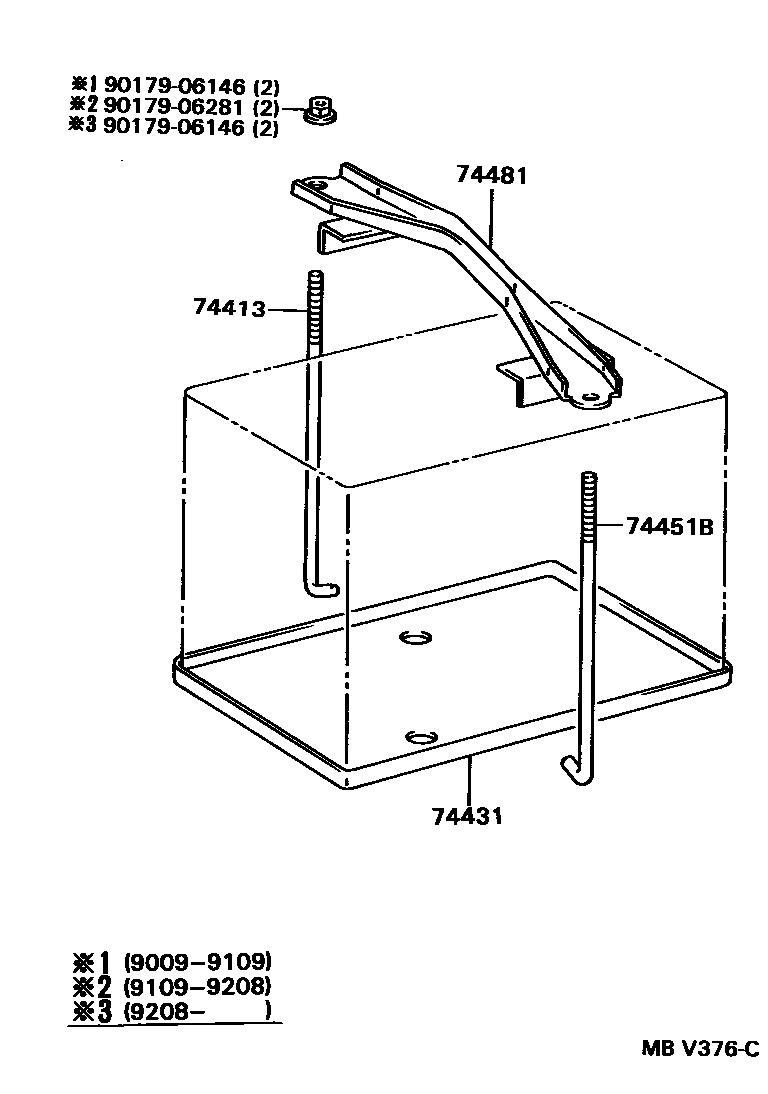

Parts diagram
74413BOLT, BATTERY CLAMP
main74451-16010i199104-199109
main74451-16030i199109-199508
74431TRAY, BATTERY
main74431-12010i199104-199508
sub74431-35030
74451BBOLT, BATTERY CLAMP
main74451-16040i199109-199508
main74451-20060i199104-199109
74481CLAMP, BATTERY HOLD DOWN
main74404-16101i199104-199508
9017906146
main90179-06146
9017906281
main90179-06281

6 parts on this diagram · 1 diagram in section
