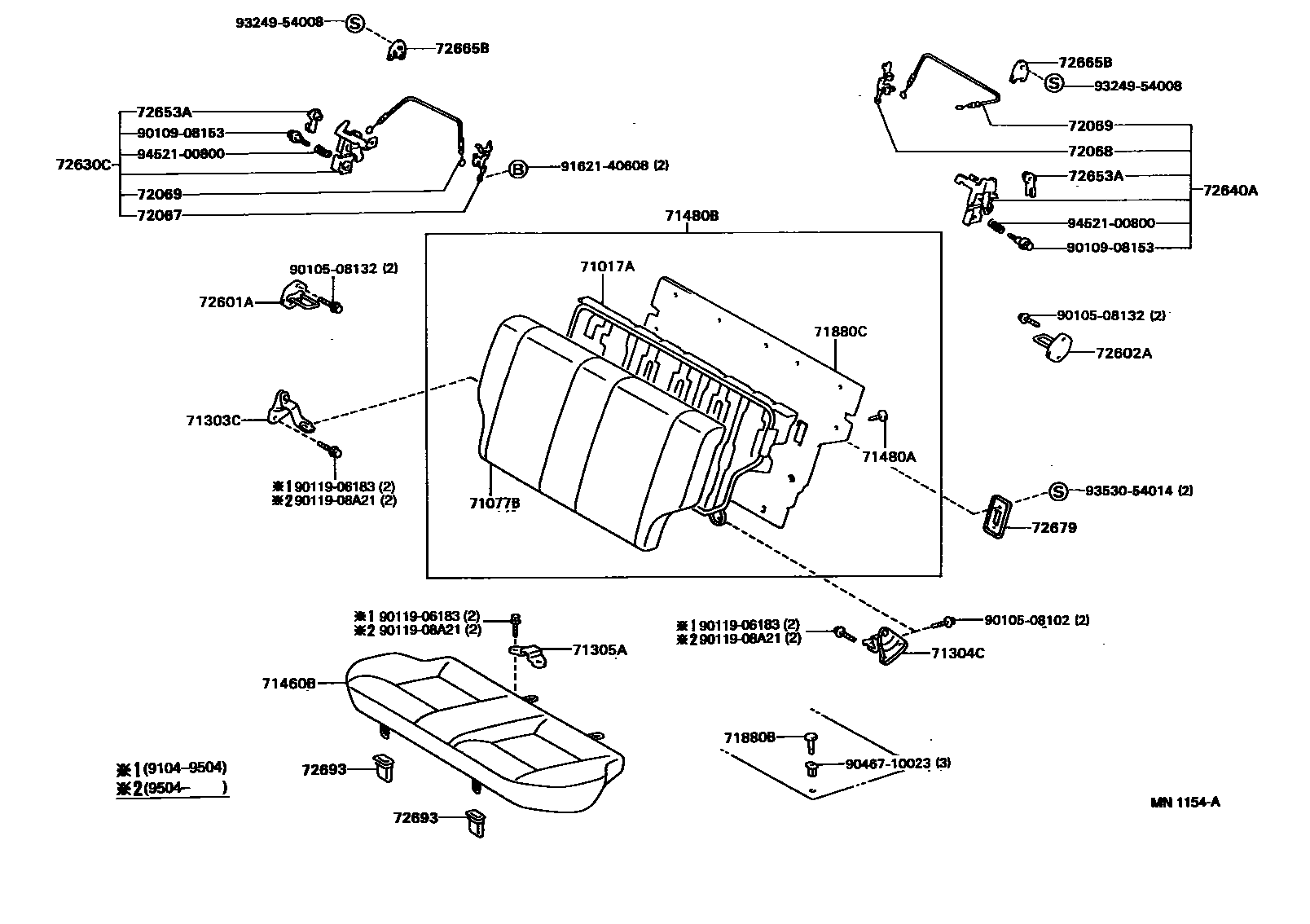

REAR SEAT & SEAT TRACK
71017AFRAME SUB-ASSY, REAR SEATBACK
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
GRAY,TRIM2#
GRAY,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
GRAY,TRIM2#
71480ACLIP (FOR REAR SEATBACK)
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
***,GRAY,TRIM2#
***,GRAY,TRIM2#
71880BCLIP(FOR REAR SEATBACK CARPET)
71880CCARPET ASSY, REAR SEATBACK BOARD
72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH
72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
sub72601-16100
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
sub72601-16100
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72653ASNAP, REAR SEATBACK LOCK ROD
RH
LH
72665BCOVER, REAR SEATBACK LOCK
72679BEZEL, REAR SEATBACK LOCK CONTROL
72693HOOK, REAR SEAT CUSHION LOCK
sub72693-20060
9010508102
main90105-08102
9010508132
main90105-08132
9010908153
main90109-08153
9011906183
main90119-06183
9011908A21
main90119-08A21
9046710023
main90467-10023
9162140608
main91621-40608
9324954008
main93249-54008
9353054014
main93530-54014
9452100800
main94521-00800
31 parts on this diagram · 1 diagram in section
