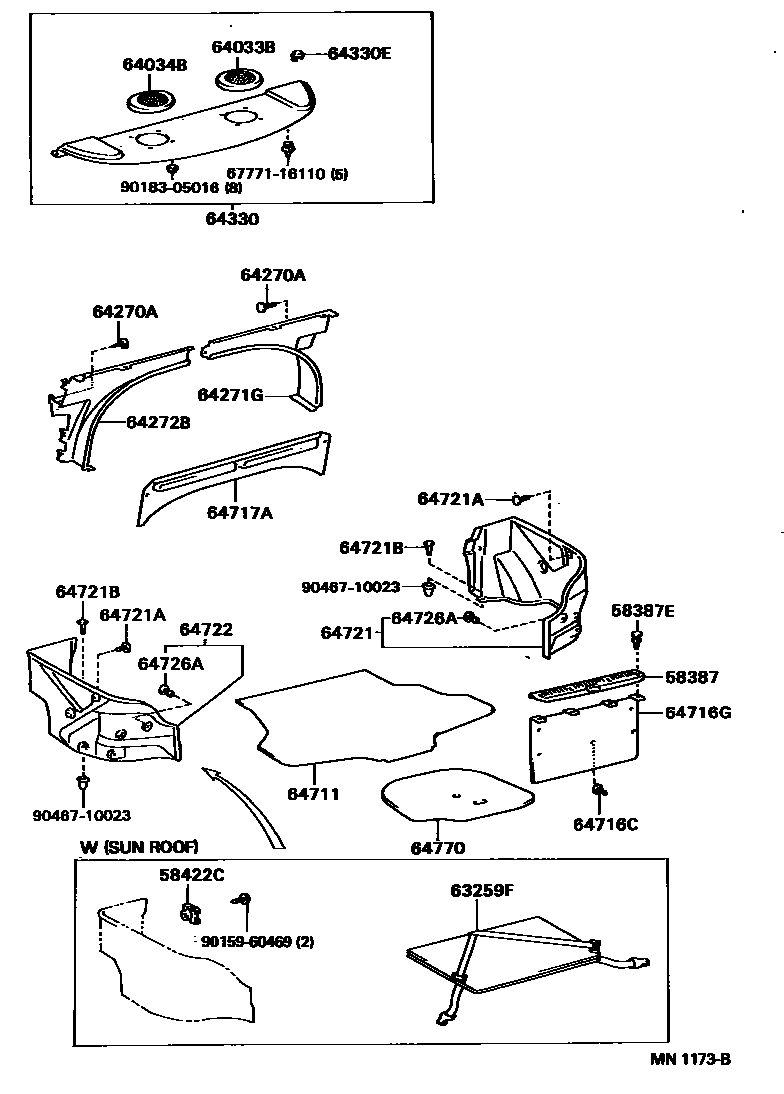

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58422CANCHOR, LUGGAGE HOLD BELT
63259FCASE, REMOVABLE ROOF
BLACK,TRIM2#
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
64271GBOARD, ROOM PARTITION, RH
64272BBOARD, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
W(REAR SPOILER),BLACK,TRIM2#
W(REAR SPOILER),BLACK,TRIM2#
W(REAR SPOILER & RADIO),BLACK,TRIM2#
BLACK,TRIM2#
W(REAR SPOILER),BLACK,TRIM2#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
64711MAT, LUGGAGE COMPARTMENT FLOOR
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM2#
64726ACLIP, LUGGAGE TRIM, REAR
6777116110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16110
9015960469
main90159-60469
9018305016
main90183-05016
9046710023
main90467-10023
25 parts on this diagram · 1 diagram in section
