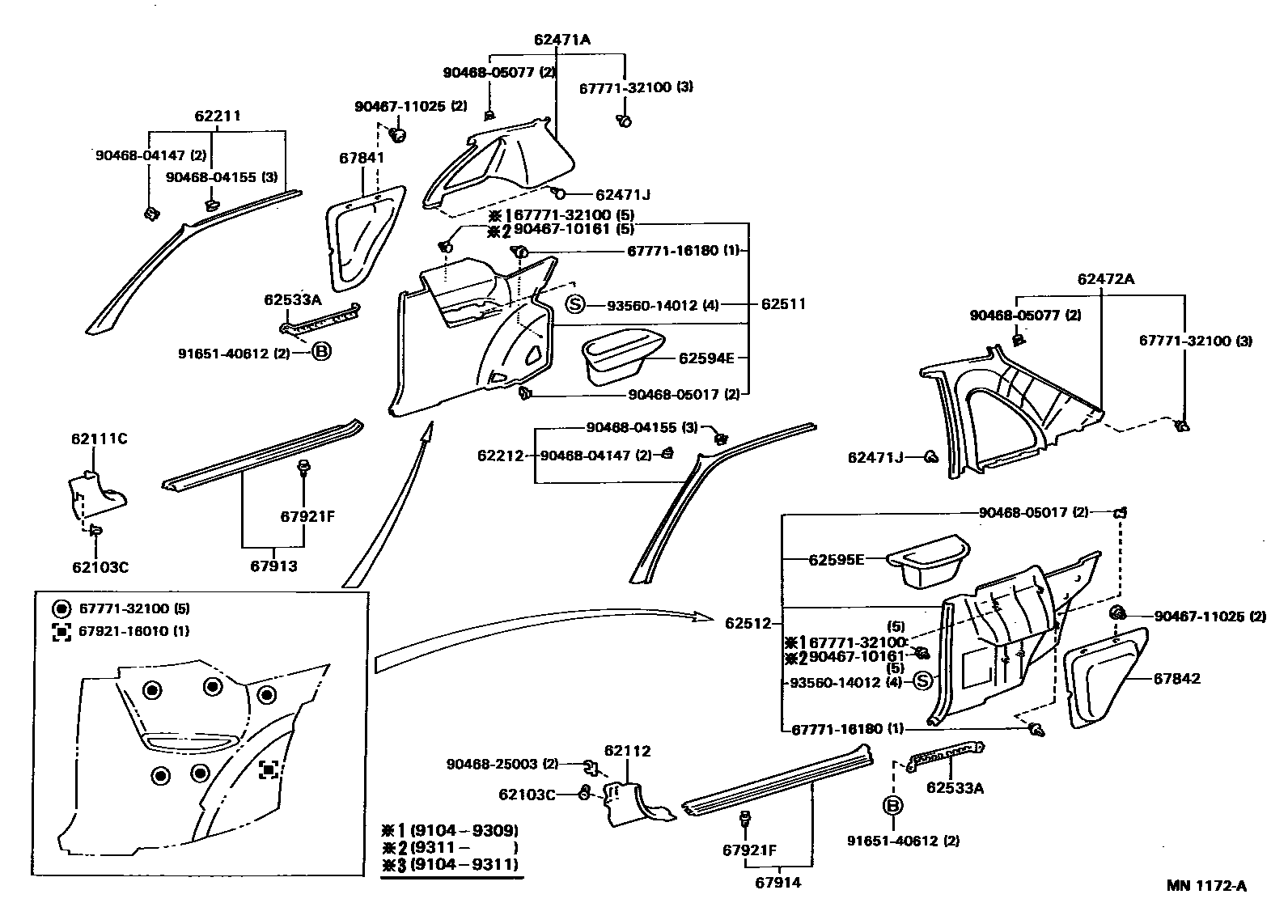

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103CCLIP, COWL SIDE TRIM BOARD SET
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62471AGARNISH, ROOF SIDE, INNER RH
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
62511BOARD, QUARTER INSIDE TRIM, RH
62512BOARD, QUARTER INSIDE TRIM, LH
62533ABRACKET, QUARTER TRIM CLAMP
62594EPOCKET, QUARTER TRIM, RH
62595EPOCKET, QUARTER TRIM, LH
67841COVER, QUARTER SERVICE HOLE, NO.1 RH
67842COVER, QUARTER SERVICE HOLE, NO.1 LH
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67921FRETAINER, FRONT DOOR SCUFF PLATE
6777116180WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16180
6777132100WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32100
6792116010RETAINER, FRONT DOOR SCUFF PLATE
main67921-16010
9046710161
main90467-10161
9046711025
main90467-11025
9046804147
main90468-04147
9046804155
main90468-04155
9046805017
main90468-05017
9046805077
main90468-05077
9046825003
main90468-25003
9165140612
main91651-40612
9356014012
main93560-14012
30 parts on this diagram · 1 diagram in section
