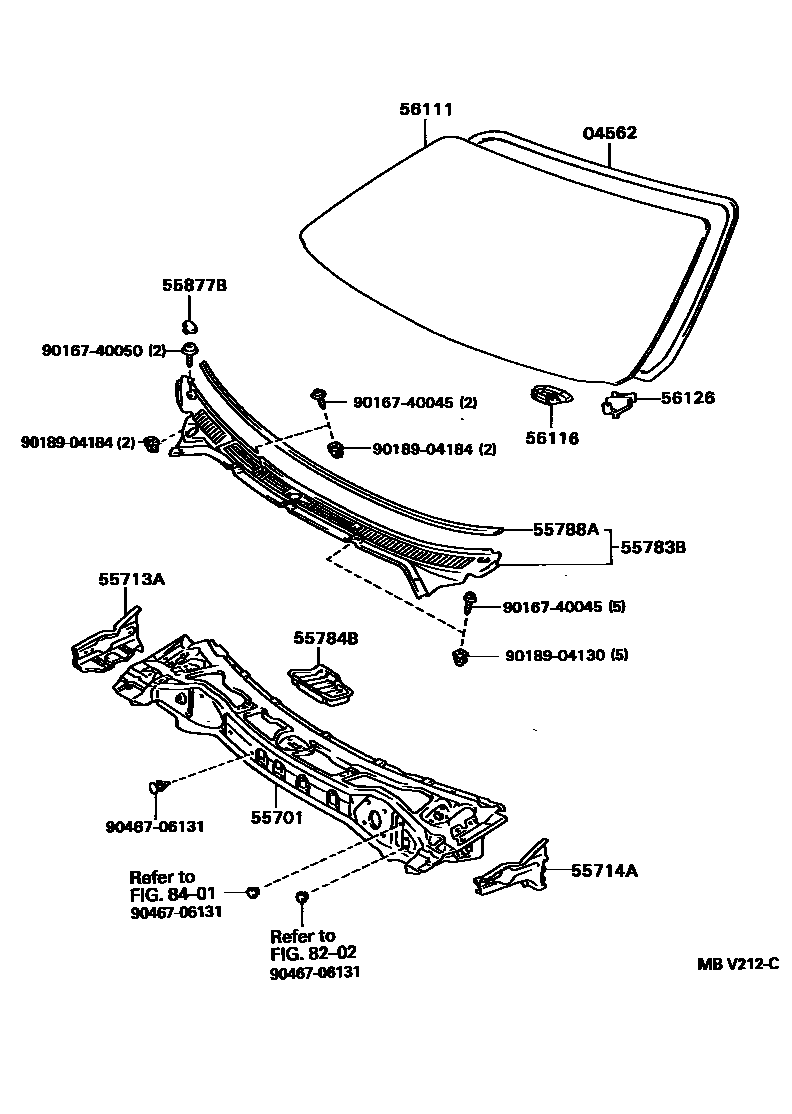

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEL44199104-199508

55701PANEL SUB-ASSY, COWL

main55700-16190iEL44199104-199409

sub89629-16070

main55700-16191iEL44199409-199508

55713APANEL, COWL TOP SIDE, RH

main55713-16050iEL44199104-199409

main55713-16060iEL44199409-199508

55714APANEL, COWL TOP SIDE, LH

main55714-16050iEL44199104-199409

main55714-16060iEL44199409-199508

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16080iEL44199104-199508

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-16040iEL44199104-199508

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-16080iEL44199104-199508

55877BCOVER, COWL VENT, RH

main55877-16020×2iEL44199104-199508

56111GLASS, WINDSHIELD

main56111-16340iEL44199104-199208

*LAM,T=4.7,CLEAR

sub56111-16341

main56111-16351iEL44199208-199409

*LAM,T=4.7,BLUE

main56111-16352iEL44199409-199508

*LAM,T=4.7,BLUE

56116SPACER, WINDSHIELD GLASS

main56116-16040×6iEL44199104-199308

main56116-16041×6iEL44199308-199508

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-16030iEL44199104-199203

RH

main56126-16031iEL44199203-199308

RH

main56126-16032iEL44199308-199508

RH

main56127-16020iEL44199104-199203

LH

main56127-16021iEL44199203-199308

LH

main56127-16022iEL44199308-199508

LH

8202

8401

9016740045

main90167-40045

9016740050

main90167-40050

9018904130

main90189-04130

9018904184

main90189-04184

9046706131

main90467-06131

18 parts on this diagram · 1 diagram in section
