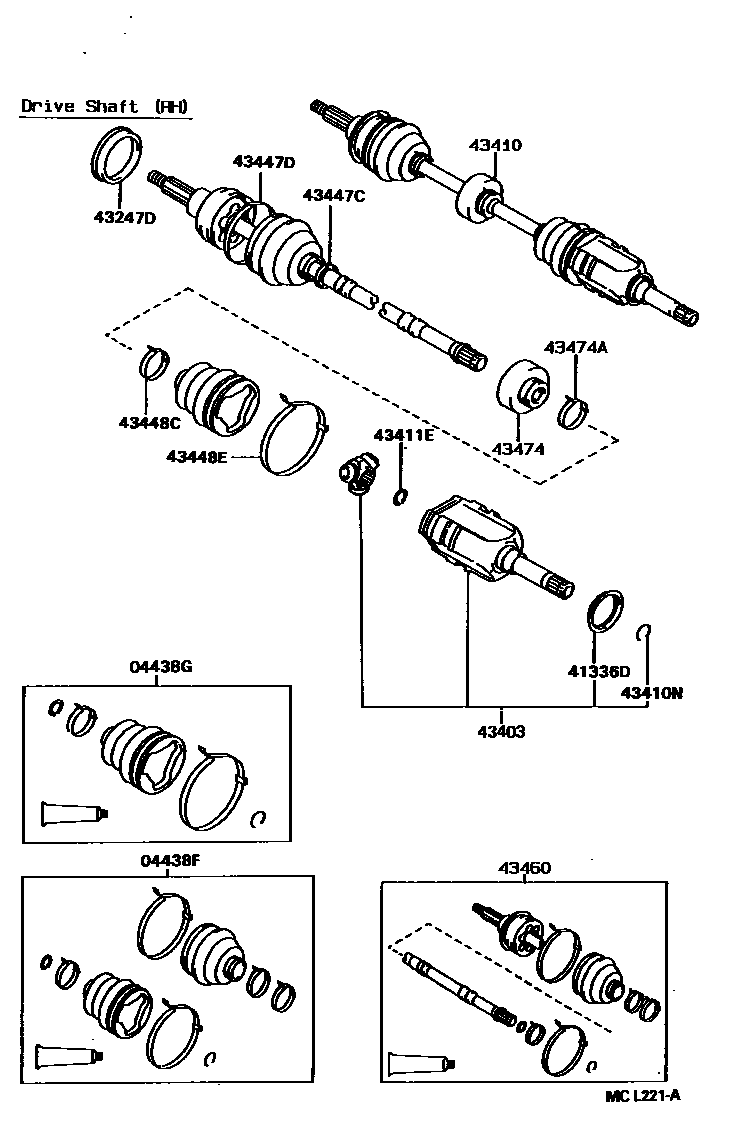

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12171i199110-199208

sub04438-12370

main04438-12172i199208-199406

sub04428-12270

main04438-16080i199104-199508

sub04438-16081

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12161i199110-199208

sub04438-12410

main04438-12162i199208-199406

sub04438-12410

main04438-16070i199104-199508

sub04438-16071

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010i199104-199508

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-10020i199104-199208

main43247-16040i199208-199508

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010i199104-199508

sub43403-10011

main43403-12040i199110-199406

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16111i199110-199112

sub43410-16210

main43410-16190i199104-199508

sub43410-16191

sub90178-22001

main43410-16210i199112-199406

sub43410-16211

sub90178-22001

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004i199104-199508

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001i199104-199508

sub90520-22029

main90520-22005i199110-199406

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01078i199104-199508

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020i199307-199508

main90949-01080i199104-199307

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078i199104-199508

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040i199307-199406

main42345-16080i199406-199508

main90949-01076i199110-199307

sub42345-12160

main90949-01146i199104-199110

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19516i199110-199406

sub43460-19517

sub90178-22001

main43460-19625i199104-199508

sub43460-19626

sub90178-22001

43474DAMPER, DRIVE SHAFT

main43474-12020i199110-199112

main43474-20050i199104-199508

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010i199104-199307

main42345-16030i199307-199508

15 parts on this diagram · 2 diagrams in section
