MOUNTING

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i5EFE..EL44199104-199508

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-11050i5EFE..EL44..MTM199104-199508

sub12303-11051

main12321-11100i5EFE..EL44..ATM199104-199508

sub12321-11101

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11030i5EFE..EL44..ATM199104-199508

main12325-11070i5EFE..EL44..MTM199104-199508

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11140i5EFE..EL44199104-199508

sub12362-11300

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11310i5EFE..EL44..MTM199104-199508

sub12371-11311

main12371-11360i5EFE..EL44..ATM199104-199508

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11170i5EFE..EL44..MTM199104-199508

main12372-11180i5EFE..EL44..ATM199104-199508

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i5EFE..EL44199104-199508

9010510051

main90105-10051

9010510111

main90105-10111

9010510127

main90105-10127

9010510266

main90105-10266

9010510268

main90105-10268

9010510269

main90105-10269

9010510312

main90105-10312

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011912191

main90119-12191

9011912192

main90119-12192

9011912226

main90119-12226

9017910088

main90179-10088

9038710013

main90387-10013

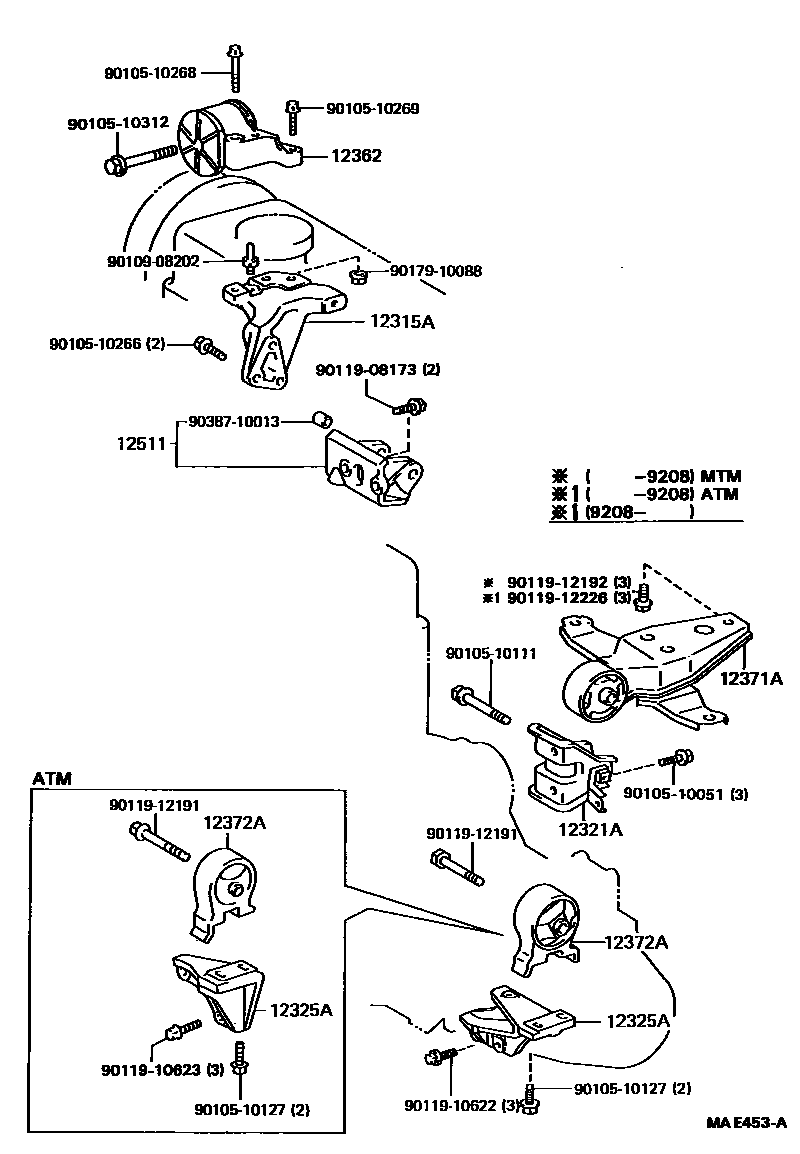

23 parts on this diagram · 1 diagram in section
