FRONT DOOR PANEL & GLASS

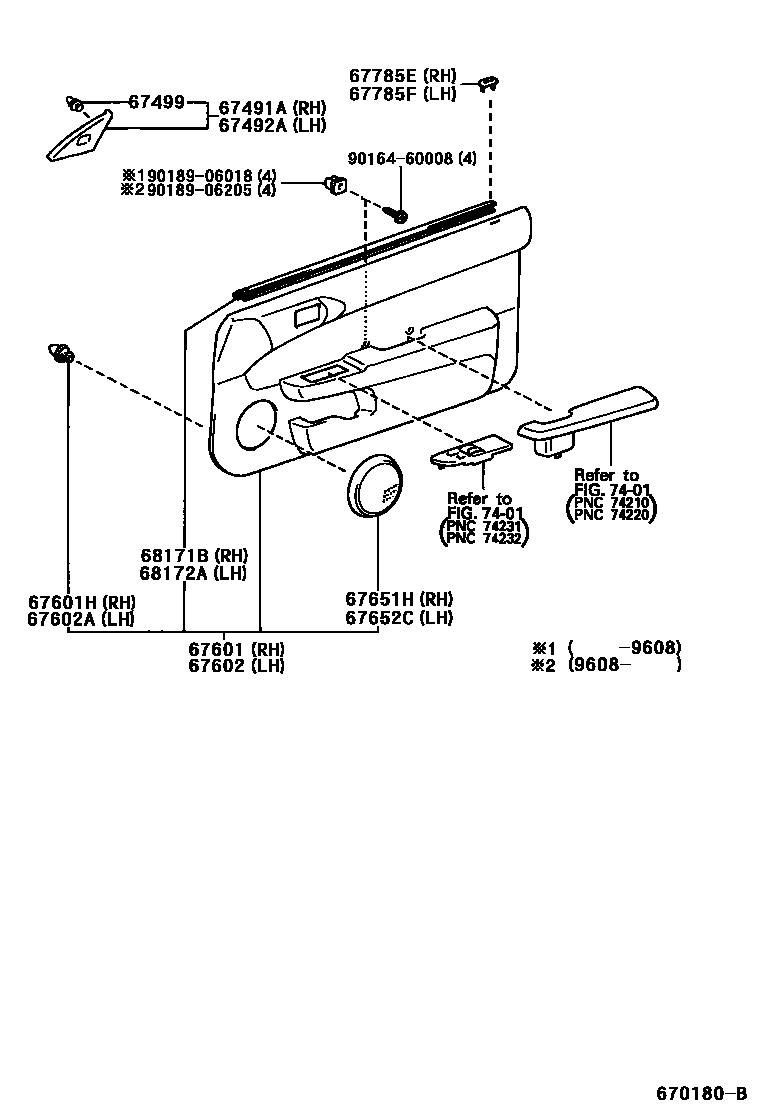

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-16260i199508-199907
main67491-16270i199508-199702
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-16260i199508-199907
main67492-16270i199508-199702
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-30070×4i199508-199907
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-1G140-B0i199608-199702
SHADOW GRAY,TRIM1#
sub67610-1G141
main67610-1G150-B0i199608-199702
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67610-1G151
main67610-1G160-B0i199608-199706
SHADOW GRAY,TRIM1#
main67610-1G161-B0i199706-199712
SHADOW GRAY,TRIM1#
sub67610-1G141
main67610-1G162-B1i199712
SHADOW GRAY,TRIM1#
sub67610-1G142
main67610-1G170-B0i199608-199706
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G171-B0i199706-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67610-1G151
main67610-1G172-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67610-1G152
main67610-1G180-B0i199608-199712
SHADOW GRAY,TRIM1#
main67610-1G182-B1i199712
SHADOW GRAY,TRIM1#
main67610-1G190-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G192-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G220-B0i199608-199712
SHADOW GRAY,TRIM1#
main67610-1G222-B1i199712
SHADOW GRAY,TRIM1#
main67610-1G230-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G232-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G290-B0i199610-199802
SHADOW GRAY,TRIM1#
main67610-1G292-B1i199802
SHADOW GRAY,TRIM1#
main67610-1G300-B0i199610-199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G302-B1i199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G310-B0i199610-199802
SHADOW GRAY,TRIM1#
main67610-1G312-B1i199802
SHADOW GRAY,TRIM1#
main67610-1G320-B0i199610-199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G322-B2i199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-16750-B0i199512-199608
GRAY,TRIM1#
main67650-16810-B0i199512-199608
W(POWER WINDOW),GRAY,TRIM1#
main67650-16820-B0i199508-199608
SHADOW GRAY,TRIM1#
sub67650-16800
main67650-16830-B0i199508-199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-16840-B0i199512-199608
SHADOW GRAY,TRIM1#
main67650-16850-B0i199512-199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67650-16620
main67650-16870-B0i199508-199608
SHADOW GRAY,TRIM1#
sub67650-16800
main67650-16880-B0i199508-199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67650-16620
67601HRETAINER, DOOR TRIM, RH
main67771-12050×3i199608-199712
RED
main67771-16120×8i199608-199712
GRAY
main67771-16160i199508-199608
ORANGE
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-16010-B0i199508-199608
SHADOW GRAY,TRIM1#
main67050-16020-B0i199508-199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67620-1G830
main67050-16030-B0i199508-199608
SHADOW GRAY,TRIM1#
main67050-16040-B0i199508-199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16210-B0i199608-199706
SHADOW GRAY,TRIM1#
main67050-16211-B0i199706-199712
SHADOW GRAY,TRIM1#
sub67050-16252
main67050-16212-B1i199712
SHADOW GRAY,TRIM1#
sub67050-16252
main67050-16220-B0i199608-199706
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16221-B0i199706-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67050-16261
main67050-16222-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67050-16262
main67050-16230-B0i199608-199712
SHADOW GRAY,TRIM1#
main67050-16232-B1i199712
SHADOW GRAY,TRIM1#
main67050-16240-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16242-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16270-B0i199608-199702
SHADOW GRAY,TRIM1#
main67050-16280-B0i199608-199702
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16290-B0i199608-199712
SHADOW GRAY,TRIM1#
main67050-16292-B1i199712
SHADOW GRAY,TRIM1#
main67050-16300-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16302-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16340-B0i199610-199802
SHADOW GRAY,TRIM1#
main67050-16342-B1i199802
SHADOW GRAY,TRIM1#
main67050-16350-B0i199610-199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16352-B1i199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16360-B0i199610-199802
SHADOW GRAY,TRIM1#
main67050-16362-B1i199802
SHADOW GRAY,TRIM1#
main67050-16370-B0i199610-199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16372-B2i199802
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-1G750-B0i199512-199608
GRAY,TRIM1#
main67620-1G780-B0i199512-199608
W(POWER WINDOW),GRAY,TRIM1#
main67620-1G840-B0i199512-199608
SHADOW GRAY,TRIM1#
main67620-1G850-B0i199512-199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
67602ARETAINER, DOOR TRIM, LH
main67771-12050×4i199610-199712
RED
main67771-16120×7i199712
GRAY
main67771-16160i199508-199608
ORANGE
67651HGRILLE, SPEAKER DOOR, RH
main67651-16070-B1i199508
SHADOW GRAY,TRIM1#
67652CGRILLE, SPEAKER DOOR, LH
main67651-16070-B1i199508
SHADOW GRAY,TRIM1#
67785EHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
main69751-12050-B0i199608
SHADOW GRAY,TRIM1#
67785FHOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
main69751-12050-B0i199608
SHADOW GRAY,TRIM1#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-16140i199508-199608
main68171-16170i199608-199712
main68171-16180i199610-199802
main68171-16210i199712
main68171-16220i199802
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-16160i199508-199608
main68172-16190i199608-199712
main68172-16200i199610-199802
main68172-16230i199712
main68172-16240i199802
9016460008
main90164-60008
9018906018
main90189-06018
9018906205
main90189-06205

16 parts on this diagram · 3 diagrams in section
