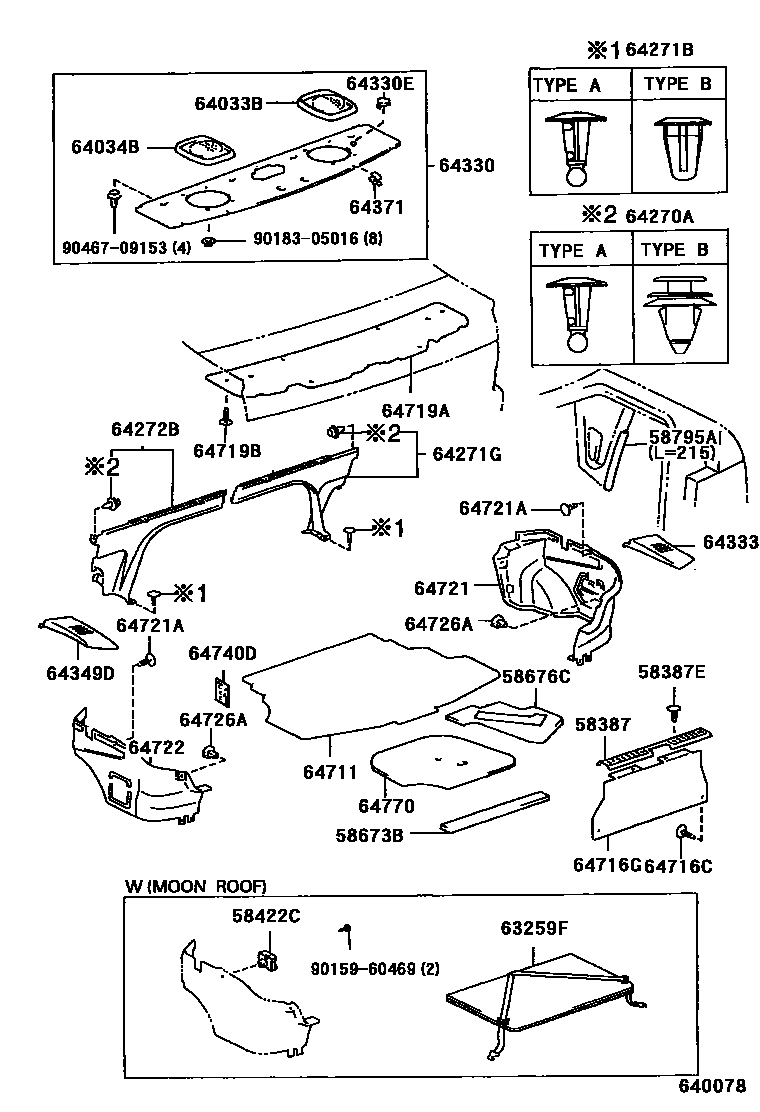

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-16050-C0iEL54199508

BLACK,TRIM1#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-06055-22×4iEL54199508

BLACK,TRIM1#

58422CANCHOR, LUGGAGE HOLD BELT

main58422-16020-22×2iEL54..CP199508

BLACK,TRIM1#

58673BPAD, REAR FLOOR SILENCER, NO.1

main58673-16010iEL54199508

58676CPAD, REAR FLOOR SILENCER

main58676-16050iEL54199508

58795ATRIM, JACK HOUSE OPENING

main58795-16020iEL54199608

63259FCASE, REMOVABLE ROOF

main63259-16040-22iEL54..CP199508

BLACK,TRIM1#

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-16040-B1iEL54199508-199608

SHADOW GRAY,TRIM1#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64383-16040-B1iEL54199508-199608

SHADOW GRAY,TRIM1#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-07115-C0×2iEL54..CP199608

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

main90467-10168×2iEL54..CP199508

TYPE B:REFER TO ILLUSTRATION

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07115-C0×2iEL54199508-199608

BLACK,TRIM1#

main90467-10023×3iEL54..CP199508

64271GBOARD, ROOM PARTITION, RH

main64271-16070-C0iEL54..CP199508

BLACK,TRIM1#

64272BBOARD, ROOM PARTITION, LH

main64272-16070-C0iEL54..CP199508

BLACK,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-16650-B1iEL54..EUR,GEN199508-199608

W/O(HIGH MOUNT STOP LAMP;IN ROOM & W(REAR SPEAKER),SHADOW GRAY,TRIM1#

main64330-16660-B1iEL54..ARL199508-199608

W(HIGH MOUNT STOP LAMP & REAR WIPER),SHADOW GRAY,TRIM1#

main64330-16670-B1iEL54..ARL199508-199608

W/O(HIGH MOUNT STOP LAMP;IN ROOM) & W(REAR WINDOW WIPER),SHADOW GRAY,TRIM1#

main64330-16680-B1iEL54..ARL199508-199608

SHADOW GRAY,TRIM1#

main64330-16770-B1iEL54..GEN199508-199608

W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

main64330-16780-B1iEL54..GEN199508-199608

W/O(HIGH MOUNT STOP LAMP;IN ROOM),SHADOW GRAY,TRIM1#

main64330-16790-B1iEL54..EUR,GEN199508-199608

SHADOW GRAY,TRIM1#

main64330-16800-B1iEL54..ARL199508-199608

W/O(HIGH MOUNT STOP LAMP;IN ROOM & W(REAR SPEAKER),SHADOW GRAY,TRIM1#

main64330-1G020-B0iEL54..GEN199608-199702

W(2 SPEAKER),SHADOW GRAY,TRIM1#

main64330-1G030-B0iEL54..GEN199608-199702

W(2 SPEAKER & REAR SPOILER),SHADOW GRAY,TRIM1#

main64330-1G040-B0iEL54..CP..(EUR,GEN)199608

SHADOW GRAY,TRIM1#

main64330-1G050-B0iEL54..CP..(EUR,GEN)199608

W(REAR SPOILER),SHADOW GRAY,TRIM1#

main64330-1G060-B0iEL54..ARL199608

SHADOW GRAY,TRIM1#

main64330-1G070-B0iEL54..ARL199608

W(REAR SPOILER),SHADOW GRAY,TRIM1#

main64330-1G080-B0iEL54..ARL199608

W(REAR WIPER),SHADOW GRAY,TRIM1#

main64330-1G090-B0iEL54..ARL199608

W(REAR SPOILER & REAR WIPER),SHADOW GRAY,TRIM1#

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-B1iEL54..ARL199508

SHADOW GRAY,TRIM1#

sub64353-50010

64333COVER, PACKAGE TRAY TRIM, SIDE

main64333-16090-B0iEL54..CP199508

SHADOW GRAY,TRIM1#

64349DCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-16070-B0iEL54..CP199508

SHADOW GRAY,TRIM1#

64371RETAINER, PACKAGE TRAY TRIM

main64371-16010×4iEL54..CP199508

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-16140-C0iEL54199508-199608

BLACK,TRIM1#

main64711-16220-C0iEL54199608

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05096-22iEL54199508

BLACK,TRIM1#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-16100-B0iEL54..CP199508

SHADOW GRAY,TRIM1#

main64716-16100-C0iEL54..CVT199610

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-16040-C0iEL54199508

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22×6iEL54199508

BLACK,TRIM1#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-16080-B0iEL54199508-199608

SHADOW GRAY,TRIM1#

main64721-16110-B0iEL54..CP199608-199712

SHADOW GRAY,TRIM1#

main64721-16110-C0iEL54..CVT199610-199712

BLACK,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22×4iEL54199508

BLACK,TRIM1#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-16080-B0iEL54..ARL,GEN199508-199608

SHADOW GRAY,TRIM1#

main64722-16090-B0iEL54..EUR199512-199608

SHADOW GRAY,TRIM1#

main64722-16130-B0iEL54..ARL,GEN199608

SHADOW GRAY,TRIM1#

main64722-16140-B0iEL54..CP..EUR199608

SHADOW GRAY,TRIM1#

main64722-16140-C0iEL54..CVT199610

BLACK,TRIM1#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-16020-C0×4iEL54199508

BLACK,TRIM1#

64740DBOARD, DECK TRIM SIDE, LH

main64732-16040iEL54..EUR199512-199712

64770COVER ASSY, SPARE WHEEL

main64770-16310iEL54199508-199511

main64770-16311iEL54199511

9015960469

main90159-60469

9018305016

main90183-05016

9046709153

main90467-09153

32 parts on this diagram · 2 diagrams in section
