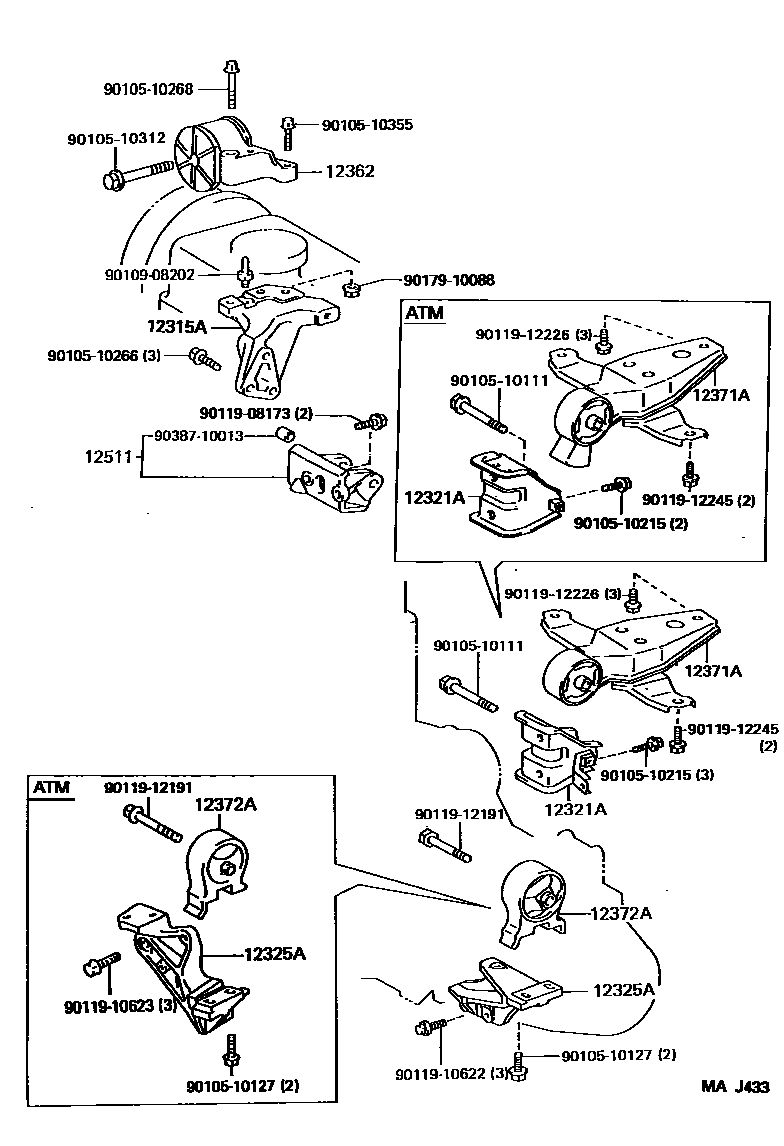

MOUNTING

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i5EFE..EL54199508

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-11050i5EFE..EL54..MTM199508-199604

main12303-11051i5EFE..EL54..MTM199604-199708

sub12303-11100

main12303-11052i5EFE..EL54..MTM199708-199712

main12303-11070i5EFE..EL54..ATM..GEN199508-199604

main12303-11071i5EFE..EL54..ATM..GEN199604-199702

sub12303-11072

main12303-11090i5EFE..EL54..ATM..ARL199605

main12321-11100i5EFE..EL54..ATM..ARL199508-199605

sub12321-11101

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11030i5EFE..EL54..ATM199508

main12325-11070i5EFE..EL54..MTM199508

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11140i5EFE..EL54..ARL,EUR;5EFE..EL54..MTM..GEN199508-199712

main12362-11180i5EFE..EL54..ATM..GEN199508-199702

main12362-11300i5EFE..EL54..CP199712-199802

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11490i5EFE..EL54..MTM199508-199511

main12371-11491i5EFE..EL54..MTM199511

main12371-11510i5EFE..EL54..ATM199508

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11180i5EFE..EL54..ATM..ARL199508

main12372-11220i5EFE..EL54..ATM..GEN199508-199702

main12372-11290i5EFE..EL54..MTM199508

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i5EFE..EL54199508

9010510111

main90105-10111

9010510127

main90105-10127

9010510215

main90105-10215

9010510266

main90105-10266

9010510268

main90105-10268

9010510312

main90105-10312

9010510355

main90105-10355

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011912191

main90119-12191

9011912226

main90119-12226

9011912245

main90119-12245

9017910088

main90179-10088

9038710013

main90387-10013

23 parts on this diagram · 1 diagram in section
