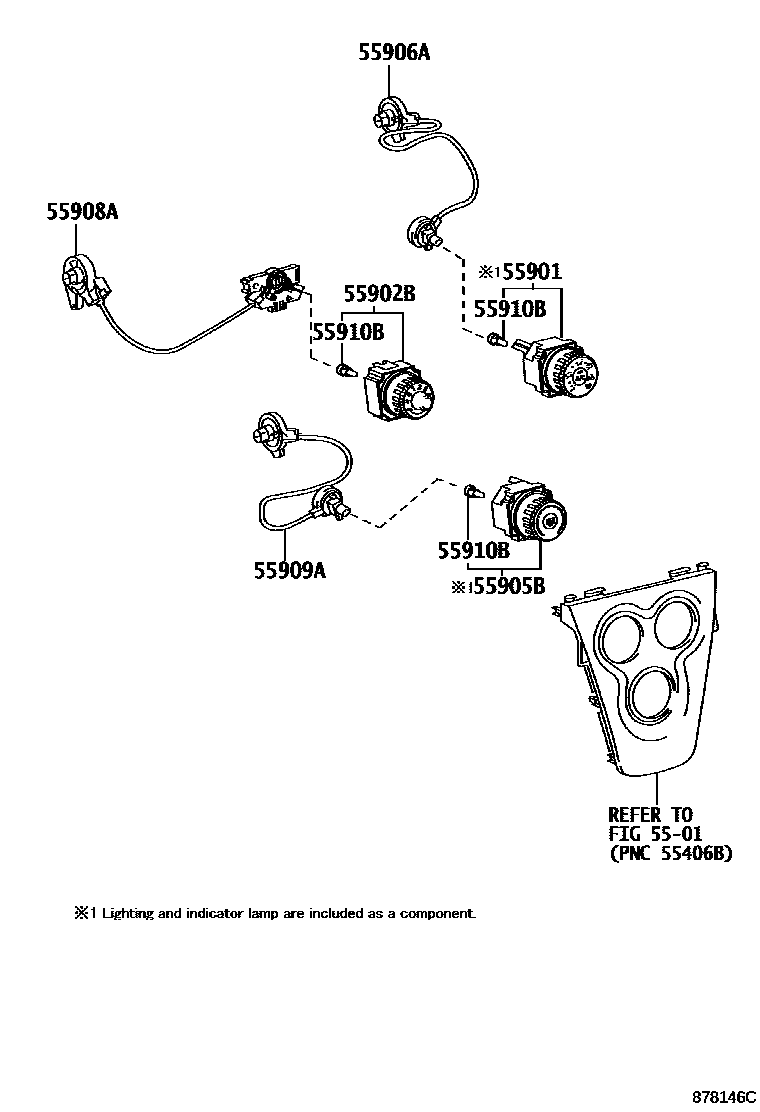

55901BASE SUB-ASSY, HEATER CONTROL

main55901-52330supersedes 55901-52340iNCP9#..RHD201108

main55901-52190supersedes 55901-52200iNCP9#200601-200808

FRONT AIR CONDITIONER-WITH(DEALER KIT)

main55901-52220iNCP9#..GCC,GEN200601-200808

FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

main55901-52360supersedes 55901-52340iNCP92..RHD200808-201108

FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

55902BCONTROL SUB-ASSY, HEATER

main55902-52060iNCP9#200601-200808

main55902-52160iNCP9#200808

55905BKNOB, HEATER CONTROL, NO.2

main55903-52150iNCP9#..GCC,GEN200601-200808

REAR WINDOW DEFOGGER-WITH

sub55903-52180

main55903-52470supersedes 55903-52490iNCP93..ARL200808

sub55903-52500

main55903-52210supersedes 55903-52490iNCP9#..GCC,GEN200601-200808

REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

main55903-52220supersedes 55903-52490iNCP9#..GCC,GEN200601-200808

FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

main55903-52530iNCP92..RHD200808-201108

REAR WINDOW DEFOGGER-WITH&FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

main55903-52540iNCP92..RHD200808-201108

FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNCP9#200601-200808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52120iNCP9#..LHD200601-200808

main55908-52130iNCP9#..RHD200601-200808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP9#200808-201607

55910BBULB, HEATER CONTROL

main90010-01113×3iNCP9#200601-200808

FRONT AIR CONDITIONER-WITH(DEALER KIT)
