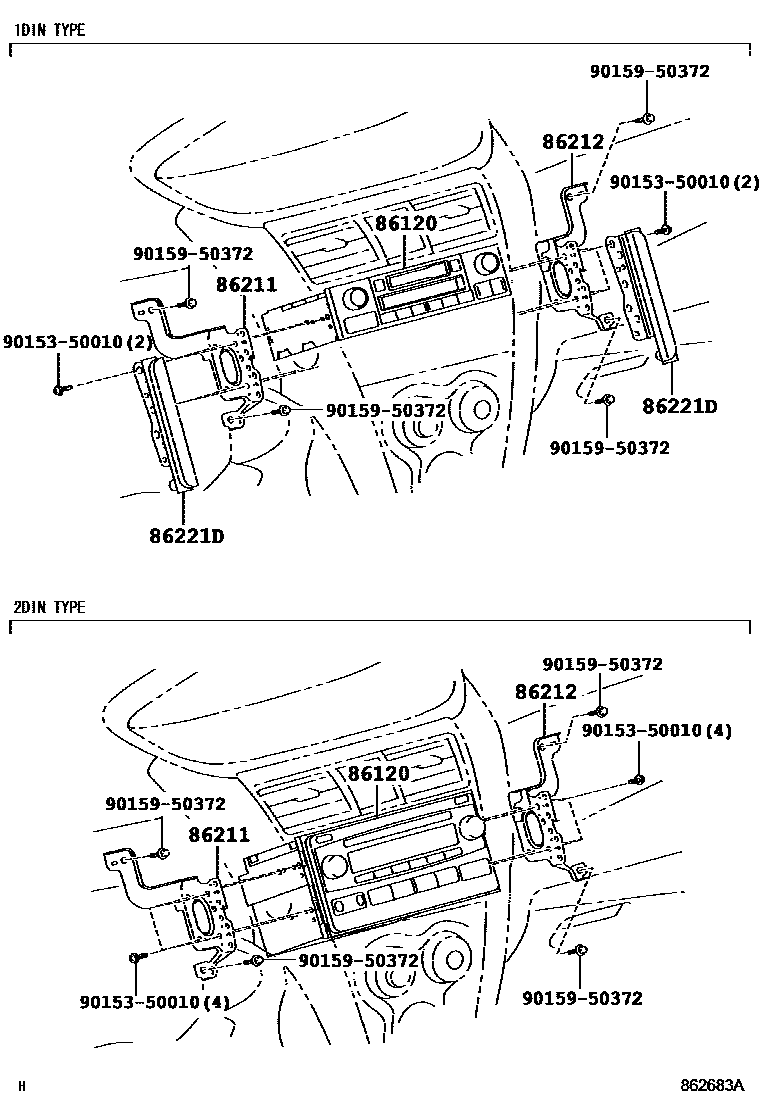

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-52560i200601-201108

FUJITSU TEN,ID=17421,AUDIO (OVERSEAS MARKET)-AM/FM CST 2SPEAKER(AM=9KHZ STEP) MULTI

main86120-52560i200601-201108

FUJITSU TEN,ID=17421

main86120-52660i200601-201307

PIONEER,ID=P2822,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI

main86120-52670i200601-201307

FUJITSU TEN,ID=12803,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI

main86120-52680i200601-201108

FUJITSU TEN,ID=17420,AUDIO (OVERSEAS MARKET)-AM/FM CST 2SPEAKER(AM=9KHZ STEP) MULTI

main86120-52700i200808-201307

PIONEER,ID=P2823,AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS)

main86120-52700i200601-200808

PIONEER,ID=P2823,SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS)

main86120-52A70i201008-201307

FUJITSU TEN,ID=11839,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA

86211BRACKET, RADIO, NO.1

main86211-52210i200601-200808

main86211-52220i201008-201307

AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA

86212BRACKET, RADIO, NO.2

main86212-52220i200601-200808

main86212-52230i201008-201307

AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA

86221DPANEL, RADIO RECEIVER

main86221-52050i200601-201108

AUDIO (OVERSEAS MARKET)-AM/FM CST 2SPEAKER(AM=9KHZ STEP) MULTI,LH

main86221-52060i200601-201108

AUDIO (OVERSEAS MARKET)-AM/FM CST 2SPEAKER(AM=9KHZ STEP) MULTI,RH

main86221-52060i200601-201108

9015350010

9015950372

6 parts on this diagram · 3 diagrams in section
