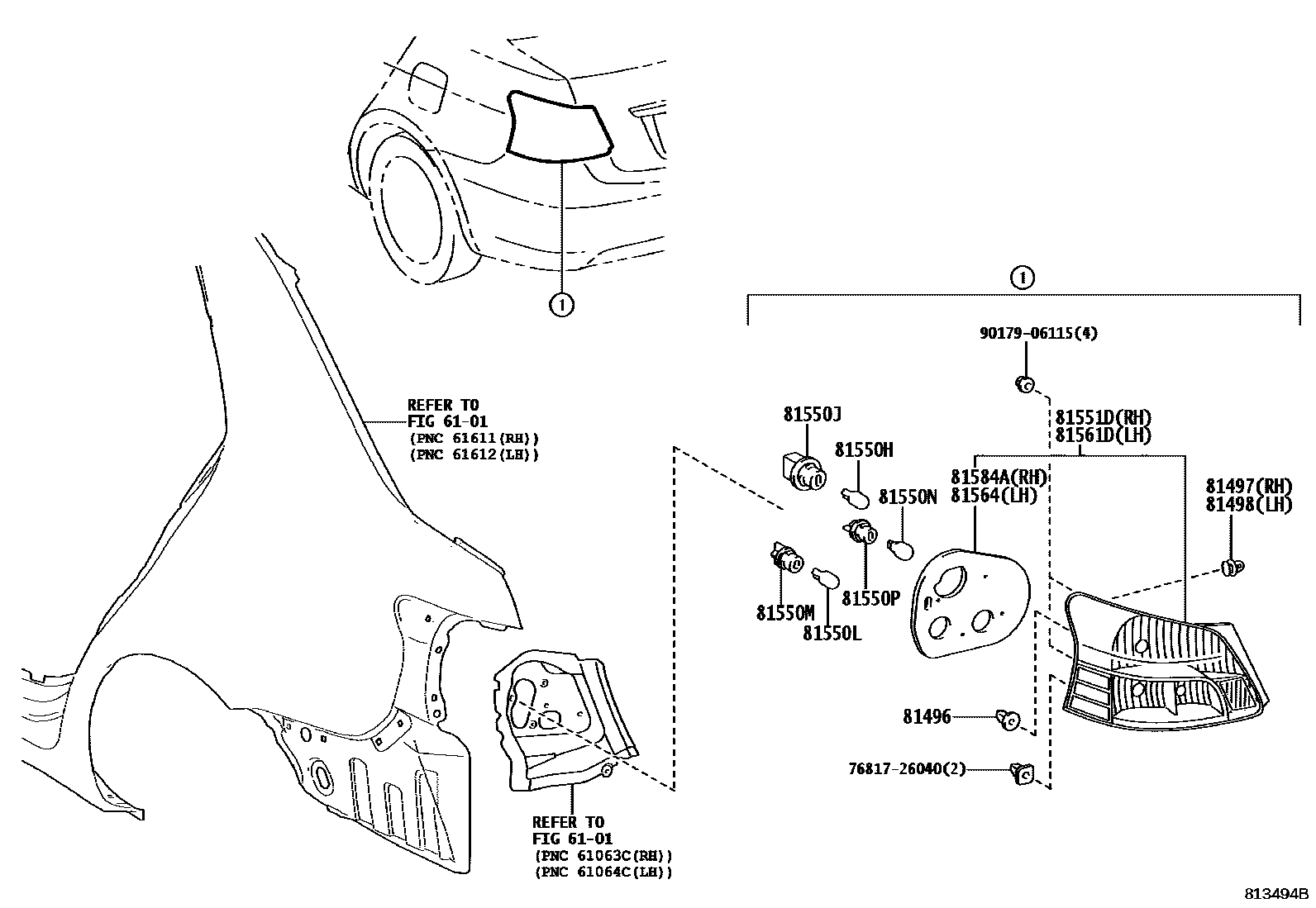

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iNCP9#200601-200808

81497COVER, REAR COMBINATION LAMP, RH

main81497-52030iNCP9#200601-200808

81498COVER, REAR COMBINATION LAMP, LH

main81498-52030iNCP9#200601-200808

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNCP9#200601-200808

81550JSOCKET, TAIL & STOP LAMP

main90075-60017×2iNCP9#200601-200808

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iNCP9#200601-200808

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60027×2iNCP9#200601-200808

81550NBULB, BACK UP LAMP

main90981-11059×2iNCP9#200601-200808

81550PSOCKET, BACK UP LAMP

main90075-60035×2iNCP9#200601-200808

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52610iNCP9#200601-200808

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52560iNCP9#200601-200808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-52560iNCP9#200601-200808

81584AGASKET, REAR LAMP RH

main81552-52610iNCP9#200601-200808

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9017906115

main90179-06115

16 parts on this diagram · 1 diagram in section
