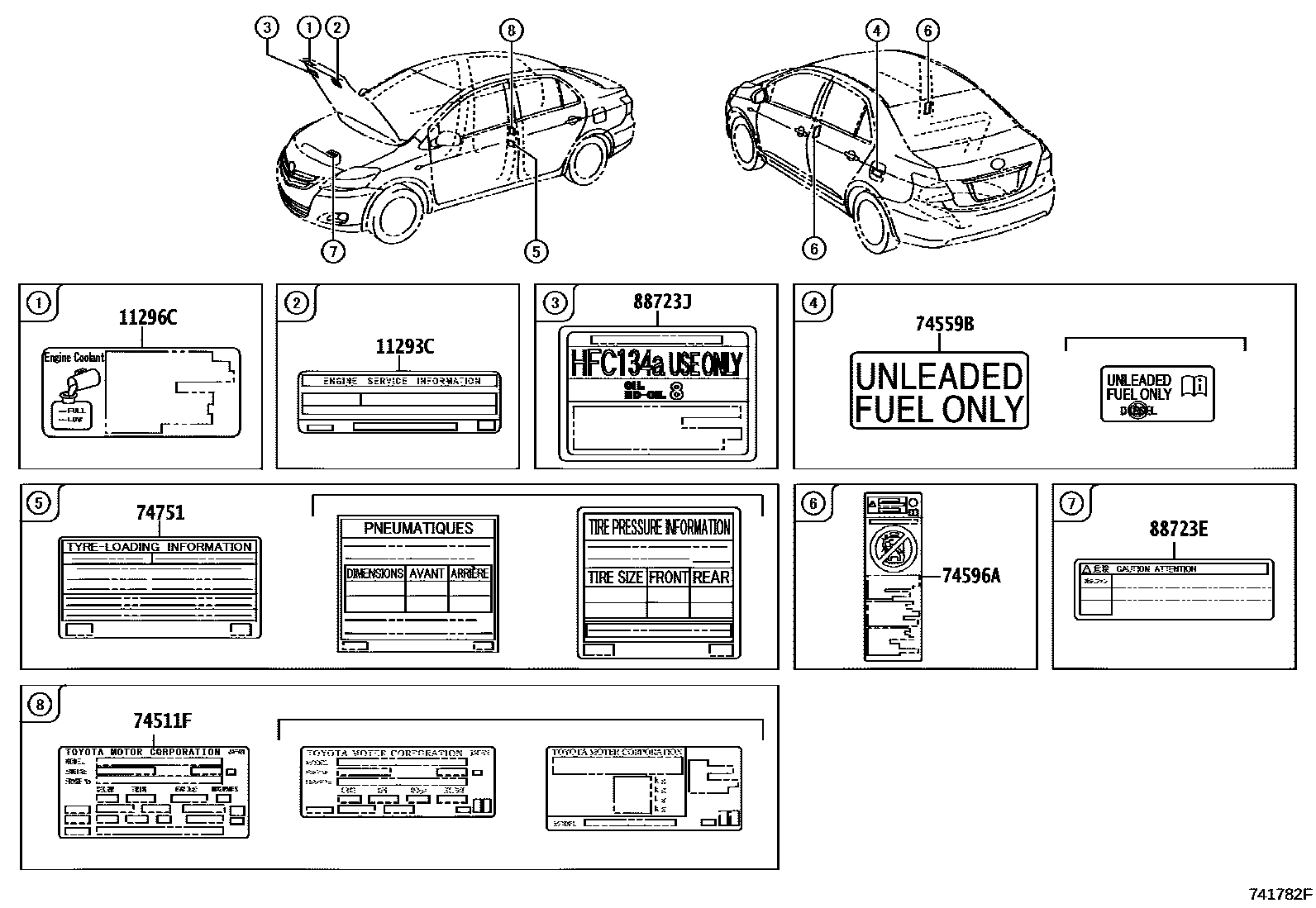

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11293CLABEL, TUNE-UP SPECIFICATION INFORMATION

main11293-21040i2NZFE..NCP92;1NZFE..NCP93..ARL,GEN200601-200605

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1NZFE,2NZFE..NCP9#200601-200703

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iNCP9#..GEN200808-201307

*111

main74511-48020iNCP92..RHD200808-201306

*111,SOUTH AFRICA SPEC

main74511-48030iNCP93..ARL200601-200808

*111

main74511-48030iNCP93..ARL200601-201307

*111,ALGERIA SPEC

main74514-52010iNCP9#..GCC200601-200808

*111

sub74514-47020

74559BLABEL, FUEL INFORMATION

main74559-14050iNCP9#200808-201406

main74559-14050iNCP92200601-201307

EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

main74559-20140iNCP93201407

74596ALABEL, SIDE AIRBAG CAUTION

main74596-30030iNCP92..GEN;NCP93..ARL200601-200909

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main74596-53010iNCP92..GEN;NCP93..ARL200910-201111

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main74596-53011iNCP92..GEN;NCP93..ARL201112

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

74751LABEL, TIRE PRESSURE INFORMATION

main42661-52570iNCP93..ARL200601-201306

SOUTH AFRICA SPEC

main42661-52570iNCP93..ARL200808-201108

main42661-52620iNCP9#..GCC200601-201307

main42661-52630iNCP92..LHD..GEN200601-201307

ALGERIA SPEC

main42661-52640iNCP92..RHD200601-201306

SOUTH AFRICA SPEC&TIRE & DISC WHEEL-185/60R15 5.5J BLACK

main42661-52640iNCP92..RHD200601-201306

SOUTH AFRICA SPEC&TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM

main42661-52640iNCP92..RHD200601-201108

TIRE & DISC WHEEL-185/60R15 5.5J BLACK

main42661-52640iNCP92..RHD200601-201108

TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM

main42661-52640iNCP93..ARL201108

88723ELABEL, COOLER SERVICE CAUTION

main88723-20081iNCP9#200601-201607

sub16793-31070

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-28220iNCP9#..ARL,GEN200601-201307

FRONT AIR CONDITIONER-WITH(DEALER KIT)

main88723-28220iNCP9#..ARL,GEN200601-201307

FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER)

main88723-28220iNCP9#..ARL,GEN200601-201307

FRONT AIR CONDITIONER-WITH(MANUAL(ONLY COOLER))

main88723-28220iNCP9#..RHD201108

8 parts on this diagram · 2 diagrams in section
